3-in-1 HDDB-15 Cable Installation
Each computer port connector is HDDB-15 type. Inspect the 3-in-1 DB15 cable. It will have a HDDB-15 male connector at one end.
Plug it into computer port on the rear of KVM switch. The other end of input cable has three connectors: a HDDB-15 male type for
computer video, a purple mini din 6-pin PS/2 connector for keyboard and a green mini din 6-pin PS/2 connector for mouse. Plug these
three connectors into the respective ports on the computer. Repeat the same procedure for all other computers.
a. PS/2 computer --- Plug PS/2 mouse connector to computer mouse port and PS/2 keyboard connector to computer keyboard
port. Do not hot plug PS/2 port. If you must do that make sure PS/2 mouse is plugged in first then the PS/2
keyboard.

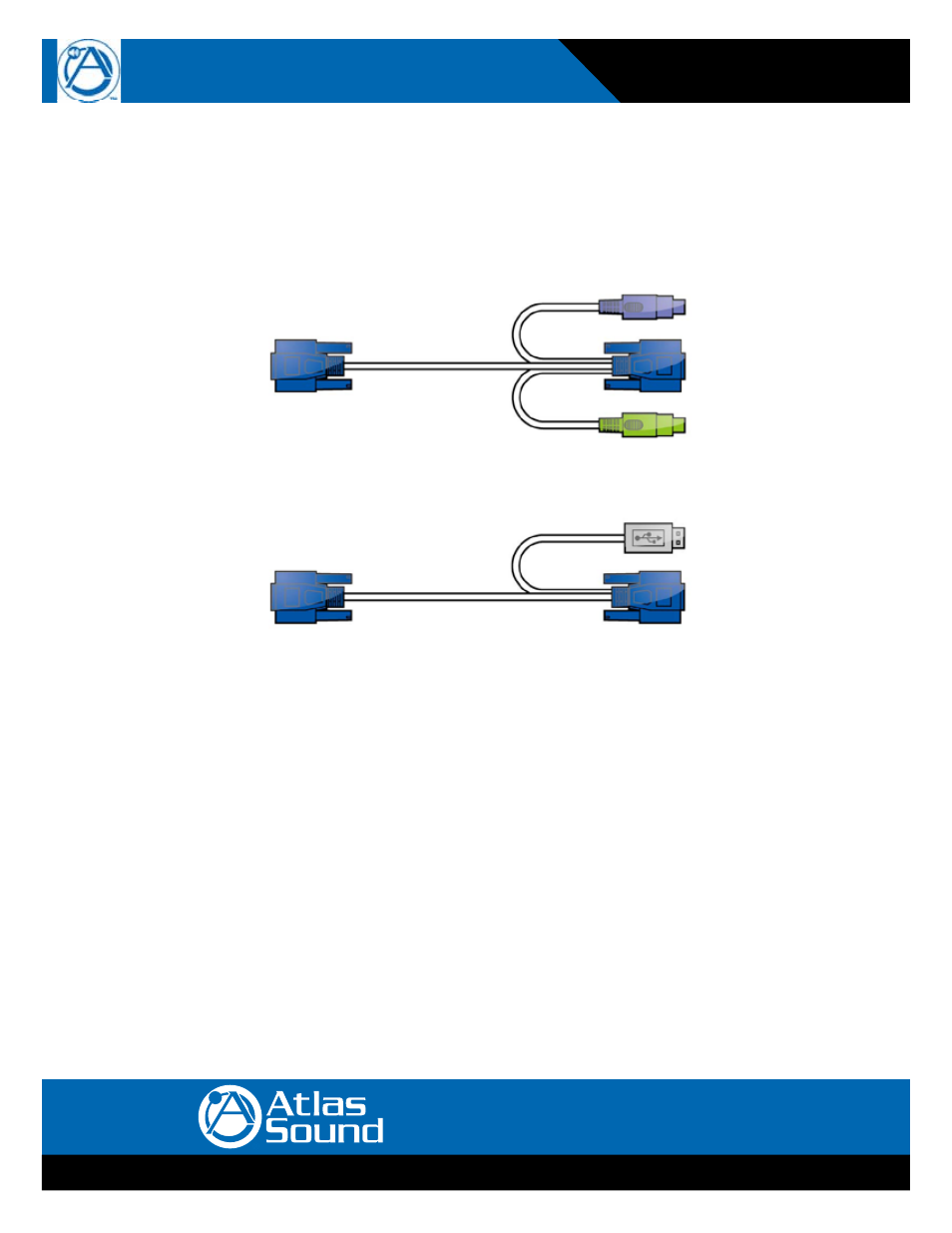

Figure 2-2. 3-in-1 HDDB-15 Cable, 3m (MMK-DD10)
b. USB computer --- Plug in USB connector. This single USB connector can handle both keyboard and mouse data, it work as a
standard HID (Human Interface Device) no extra driver needed.
Figure 2-3. HDDB-15 / VGA + USB Cable, 3m (MMK-DB10)
