Owner’s Manual MMK-KVM8
Modular KVM Switch for
LCD Console Use

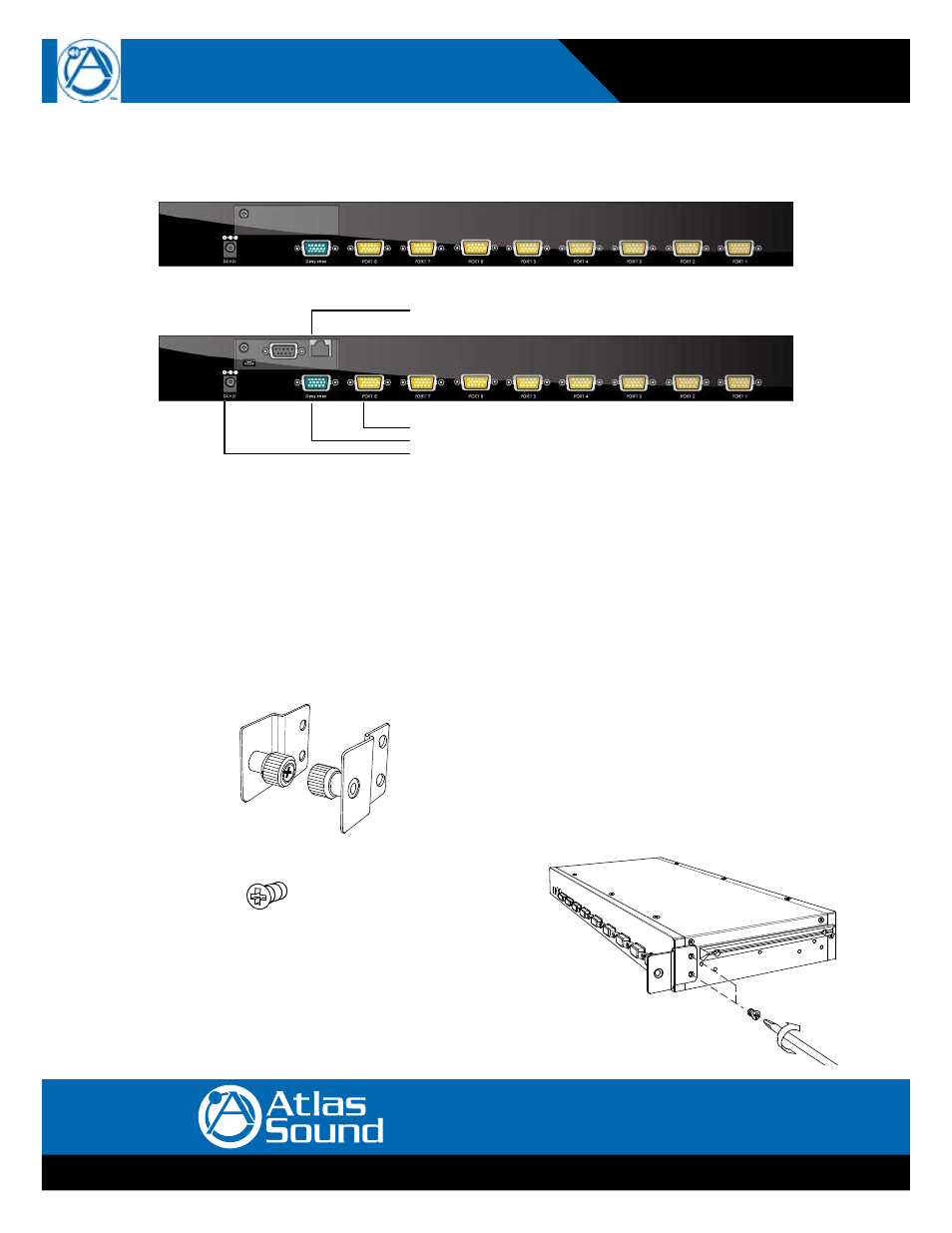

1.6 Rear Panel
8 port Modular Combo-free KVM Switch:
8 port Modular Combo-free KVM Switch with optional IP module (MMK-IPM):
Figure 1-5. Rear Panel
2. Hardware Installation
1. Please check all peripherals according to the list before installation, to make sure that the unit was not damaged during shipping. If
you encounter any problem, please contact Atlas Sound.
2. Before installation, make sure all peripherals and console have been turned off.
2.1 Rack Mount Installation
Hardware kits contents:
1. Bracket A with thumb screw x 2
2. Screw (length = 6 mm) x 4
Install modular KVM switch step:
1. Install two screws (length = 6 mm) to combine bracket A
and KVM switch. (Both sides)
Connector for Each Host Port
Daisy Chain In
DC Power Jack
Remote Console Module (IP Module)
