2.5 Daisy Chain Connection
Use one end of the daisy chain cable to connect to the Daisy Chain port of Master KVM switch and connect the other end of the daisy
chain cable to the Local Console port of the next Slave KVM switch. Please repeat the connection procedures for next Slave KVM
switch. You can daisy chain a maximum of eight banks.

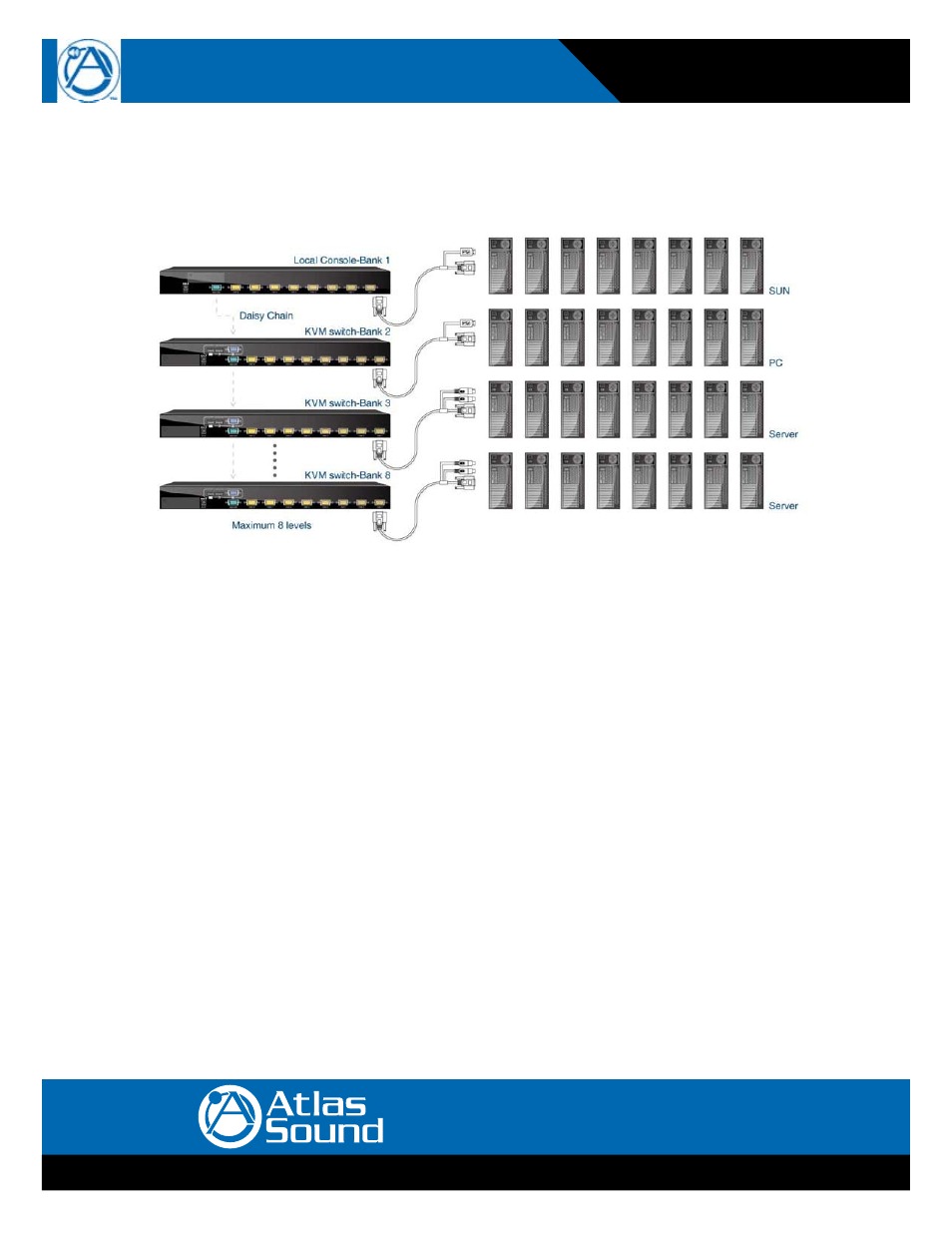

Figure 2-6. Daisy Chain Connection
The console OSD menu will show only the port information of the master KVM switch. When the master unit starts up, it will query all
daisy chained Slave units, and automatically set up the Bank ID for each Slave unit.
