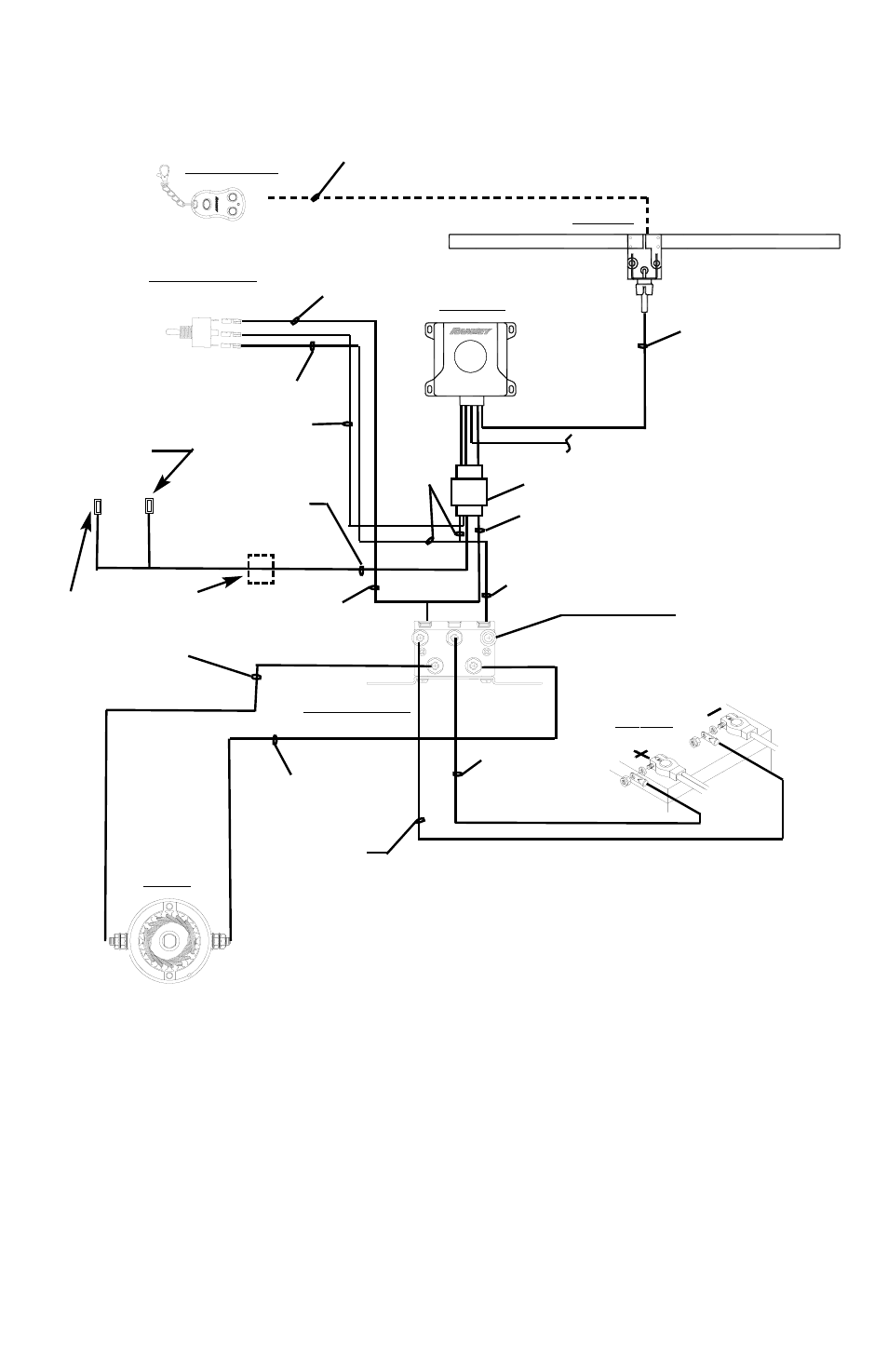

Electrical Schematic (Wireless Remote)
O N /O F F
IN
O U T
Programing instructions: Press and hold membrane below,
press ON/OFF button on transmitter for 3 seconds ,
press OUT button for 3 seconds or until winch activation .
WWW.RAMSEY.COM (918)438-2760 FAX(918)438-6688
Tulsa . Oklahoma, USA .
.
PUSH
BLACK WIRE
TO GROUND
YELLOW WIRE
SOLENOID ASS’Y.
BLACK W/ YELLOW
STRIPE MOTOR
LEAD
RED
BATTERY LEAD
BLACK
BATTERY LEAD
BATTERY
YELLOW WIRE
YELLOW
WIRE
GREEN WIRE
GREEN WIRE
BLACK MOTOR
LEAD
GREEN WIRE
WIRELESS
SIGNAL
RED WIRE W/ WHITE
STRIPE TO ACCESSORY
WIRE ON VEHICLE
IGNITION
RED WIRE
ANTENNA
RECEIVER
TRANSMITTER
TOGGLE SWITCH
COAX CABLE
OUT
IN
WIRING HARNESS
#1
MOTOR
#2
NOTE:
TORQUE SOLENOID
TERMINAL NUTS TO
35-40 IN-LBS.
MALE SPADE
CONNECTOR
FEMALE SPADE
CONNECTOR
E A
C
B
9
WIRE SPLICE
