BADGER 2500 WIRELESS REMOTE TESTING
9
Testing/Operation
1. Reconnect the positive power lead
from solenoid to battery.
2. Pull approximately 20 ft of cable off
the winch by hand.
3. Re-engage the winch clutch.
4. Power on the receiver (with cus-
tomer-supplied switch—see
electrical schematic.
5. Test the remote transmitter. The transmitter has push buttons labeled
according to their function. To operate the winch, hold “ON/OFF” but-
ton for 2 seconds to activate the “IN” and “OUT” functions. (1 flash
indicates transmitter is “on”, 2 flashes indicate transmitter is “off”).
6. Run winch in the “OUT” direction briefly. Make sure the motor has
stopped fully before reversing to prevent premature solenoid failure.
Run winch in the “IN” direction briefly.
7. Follow instructions in your winch owner’s manual for properly reeling
in the rest of the cable. The transmitter is clearly labeled and a red LED
flashes when the winch is in operation. To turn transmitter off, press
and hold the “ON/OFF” button for 2 seconds to disable the transmitter
when winch is not in use. This will prolong the battery life of the trans-
mitter. The transmitter automatically turns off after 20 minutes.
PROGRAMMING THE RECEIVER FOR USE WITH A REPLACEMENT TRANSMITTER
When you purchase a replacement transmitter, it will be necessary to pro-
gram your receiver to accept the code for the new transmitter. To program
the receiver, press and hold membrane located in the center of receiver face
(area marked “push”). Press and hold “ON/OFF” button on transmitter for 3
seconds. Press and hold “OUT” button for 3 seconds or until winch acti-
vates.
CAUTION: The center membrane area of the receiver face
should only be pressed when programming a new transmitter.
OUT
IN
ON/OFF
LED
Transmitter
4

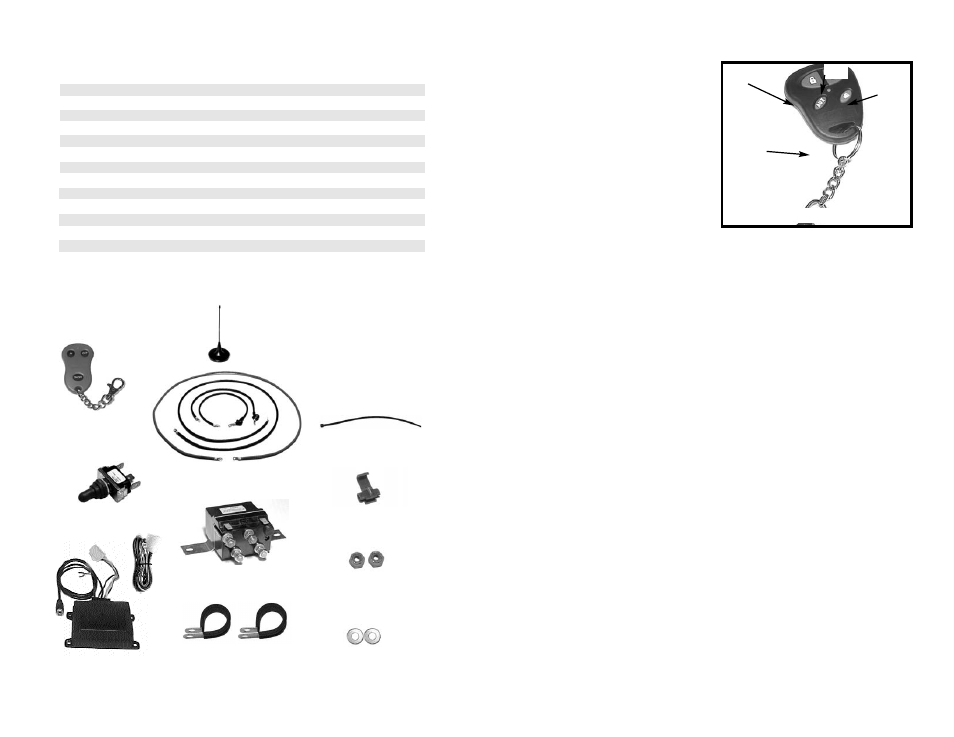

BADGER 2500 WIRELESS REMOTE PARTS LIST
* SONY CR2032 OR DURACELL DL2032
ITEM
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
QTY.
1
1
1
1
1
2
2
2
1
1
2
1
1
PART
NO.
282058
251251
251234
251190
*
416227
418140
440125
251235
440274
299724
DESCRIPTION
WIRELESS RECEIVER & TRANSMITTER KIT
ANTENNA KIT
SOLENOID KIT
REPLACEMENT TRANSMITTER
REPLACEMENT BATTERY
SCREW #10-24 X 3/4 TRUSS F/B
NUT #10-24 HEX LOCK
FLAT WASHER #10 Z/P
WIRE SPLICE
TOGGLE SWITCH
TUBE CLAMP
CABLE TIES
WIRE KIT
REMOTE RECEIVER
CABLE TIE
MOUNTING
SCREWS
REMOTE
TRANSMITTER
SOLENOID
TOGGLE SWITCH
TUBE CLAMP
WIRE SPLICE
FLATWASHERS
LOCK NUTS
WIRE KIT
ANTENNA
