Chapter 2 Hardware Installation and Setup
11
¯
If you are using a SCART RGB monitor, connect it to the AVerKey500 Pro
“SCART RGB” port by using a SCART RGB Cable.
(Note : The SCART RGB Cable is an optional accessory cable supplied with
the
AVerKey500 Pro .)
° Plug the supplied AC Power Adapter into the AVerKey500 Pro “POWER”
port.

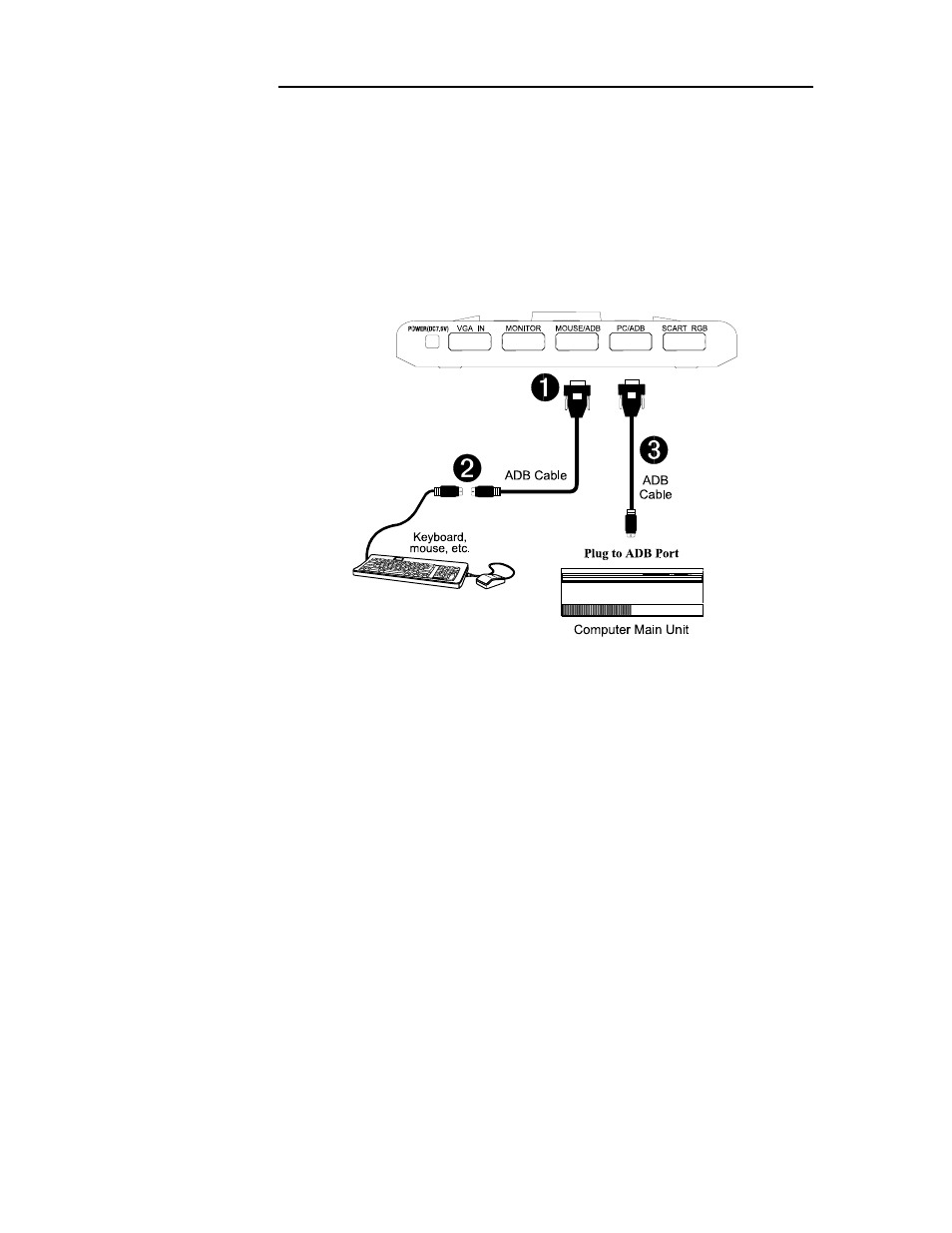

Connecting a Wired Mouse
¬
Connect the supplied ADB Cable to the AVerKey500 Pro
“MOUSE/ADB” port.
­
Disconnect the keyboard and other attached accessories from your
Macintosh computer's ADB port and connect them to the other end of the
ADB Cable.
®
Connect the second ADB Cable to the AVerKey500 Pro “PC/ADB” port
and your Macintosh computer's ADB port.
