AVerMedia AVerKey500 Pro User’s Manual
8
Installing AVerKey500 Pro to an IBM PC

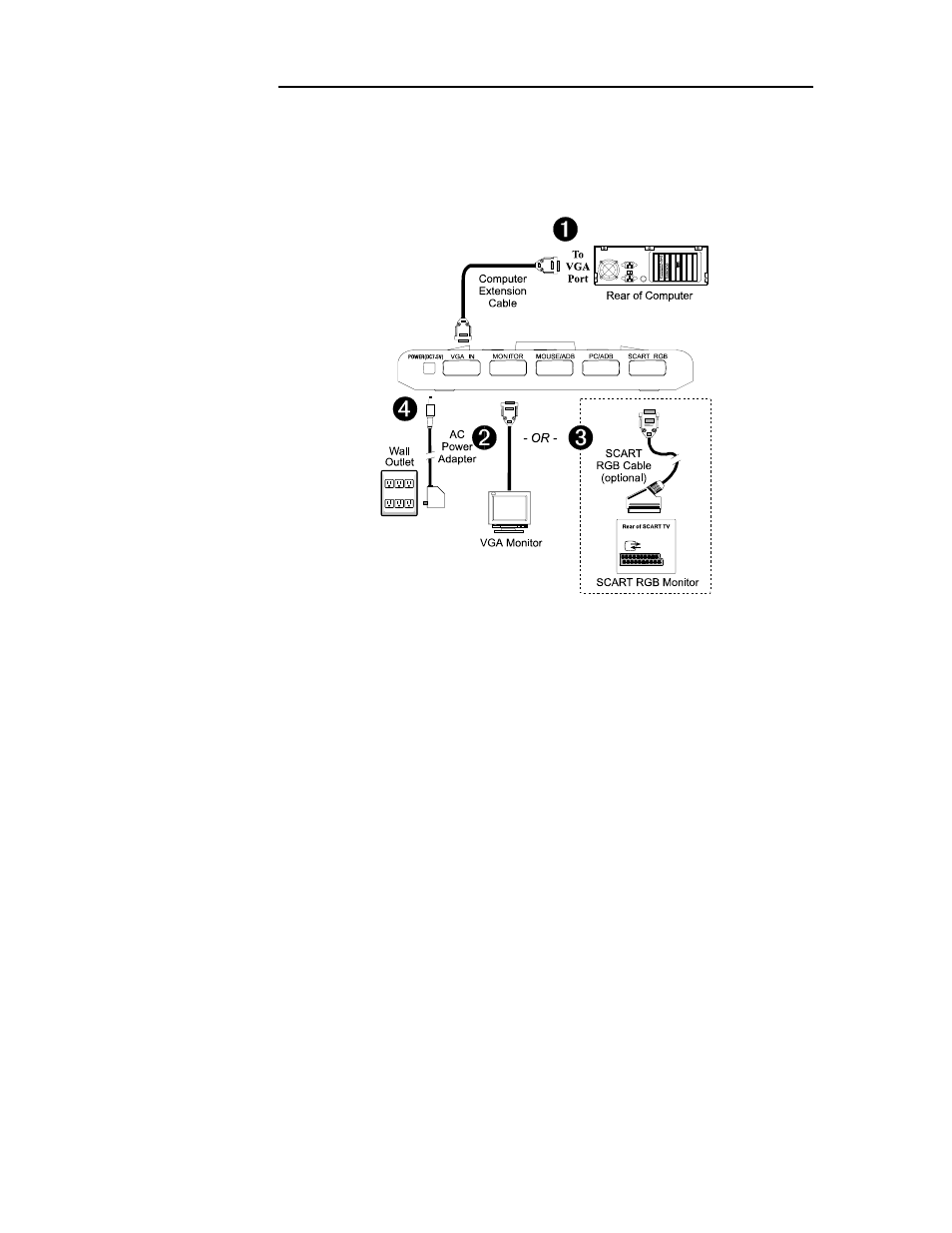

Follow the setup diagram and procedure below to install the AVerKey500 Pro to
an IBM compatible PC.
¬ Connect the AVerKey500 Pro to the PC. Plug one end of the supplied
Computer Extension Cable to the AVerKey500 Pro “VGA IN” port and the
other end to the PC’s VGA port.
­ Connect the VGA monitor to AVerKey500 Pro . Plug the VGA monitor
cable to the AVerKey500 Pro “MONITOR” port.
®
If you are using a SCART RGB monitor, connect it to the AVerKey500 Pro
“SCART RGB” port by using the SCART RGB Cable.
(Note : The SCART RGB cable is an optional accessory cable supplied with
the
AVerKey500 Pro .)
¯ Plug the supplied AC Power Adapter into the AVerKey500 Pro “POWER”
port.
