A-6
INSTALLATION
WIRE FEED MODULE™

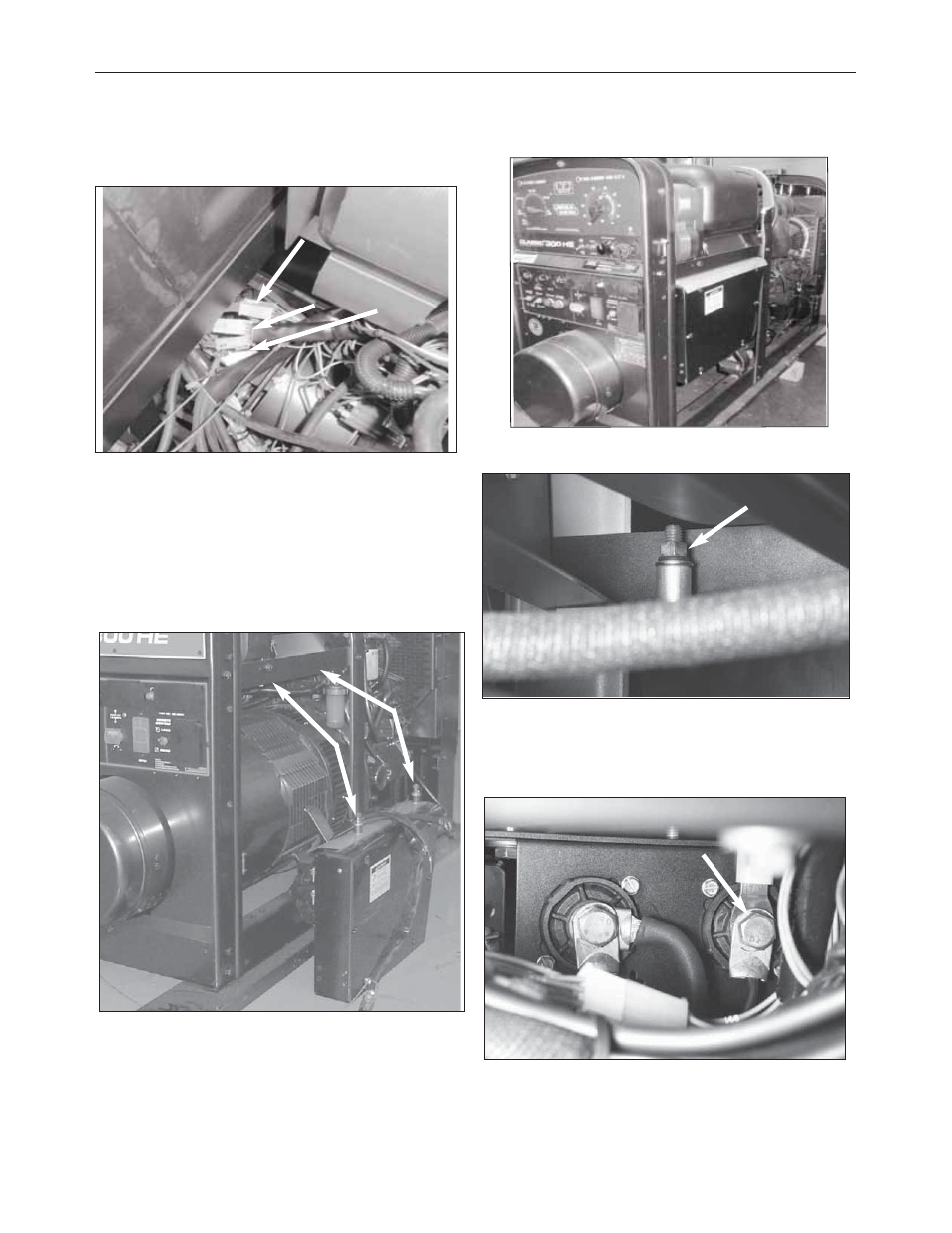

10. Locate and remove 12-pin jumper plug and install 12-pin
connector from control box to 12-pin connector. Connect
control box 6-pin connector to control panel 6-pin connector.
Connect control box 9-pin connector to control panel 9-pin
connector.
11. Remove two (2) fuel tank hold down bolts on the right side of
the machine and save hardware.
12. Position control box into place. Four plastic fuel tank mounting
bolts require loosening to slide the tank towards the engine.
The control box must be maneuvered out, up and back to clear
the door latch catch.
13. Mount the control box using .62 spacers, flat washers, lock
washers and hex nuts provided in the mounting hardware
packet. Tighten all fuel tank bolts to rail.
14. Shows the control box bolted in with the fuel tank.,
15. Remove the positive output terminal bolt. (3/4” Socket
wrench).
