WELD MODE SEARCHING
The Weld Mode Search feature allows the selection of
a welding mode based on certain criteria (wire size,
process type, etc.).
SEARCHING FOR A WELD MODE
To search for a mode, turn the control knob until
“Weld Mode Search” is displayed. This will appear in
between the highest and the lowest weld mode num-
bers.
Once “Weld Mode Search” is displayed, pressing the
right pushbutton labeled “Begin” will start the search
process.
During the search process, pressing the right pushbut-
ton typically acts as a “next” button and the left push-
button typically acts as a “back” button.
Rotate the control knob then press the right pushbut-
ton to select relevant welding details such as welding
process, wire type, wire size, etc.
When the final selection is made, the C300 TM will
automatically change to the weld mode found by the
Weld Mode Search process.
Earlier products may not have this feature. To acti-
vate this feature, a software update may be needed
from www.powerwavesoftware.com
B-16 OPERATION B-16
POWER WAVE ® C300

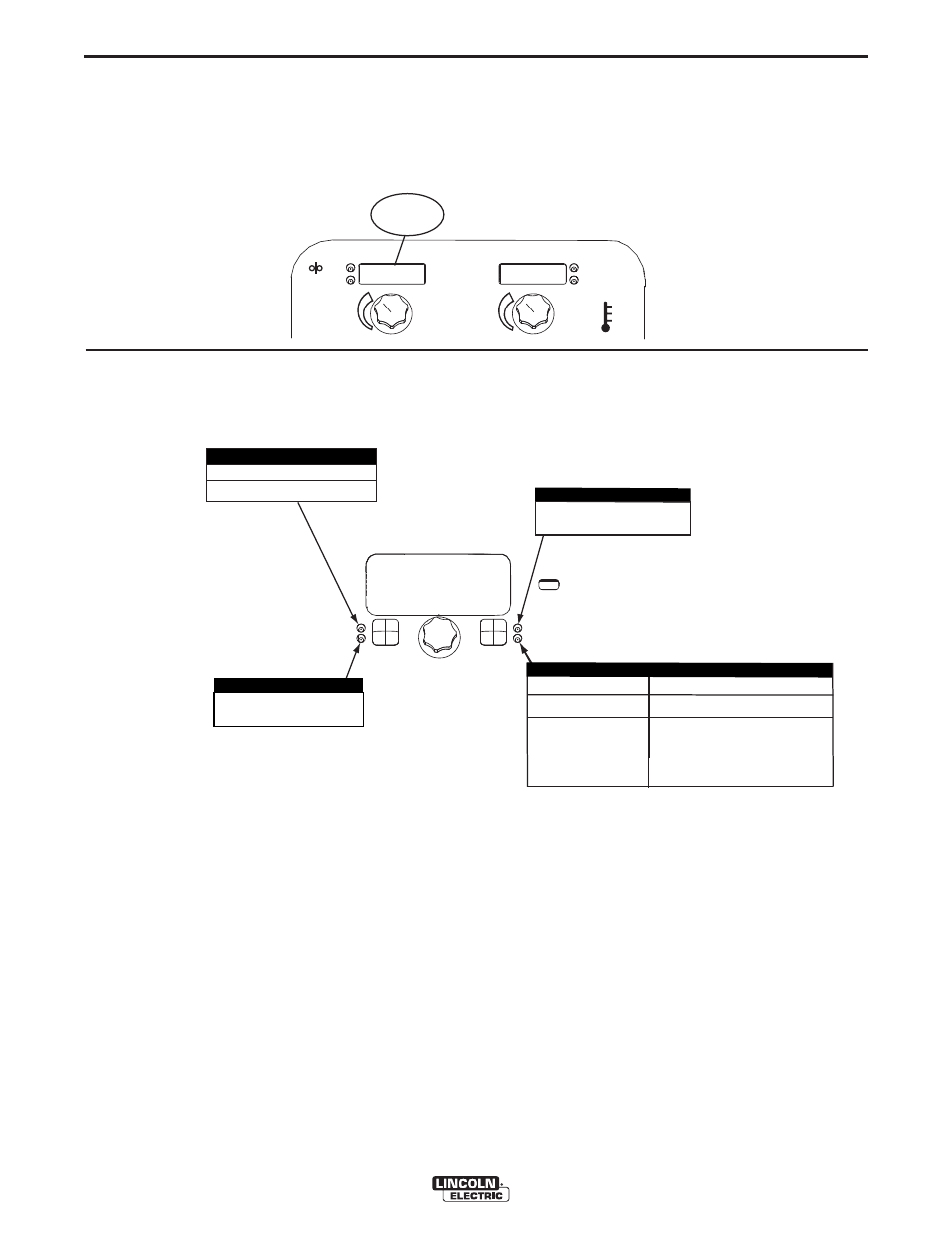

GTAW (TIG) WELDING
The Power Wave ® C300 is excellent for Touch Start
TIG welding.
START OPTIONS
END OPTIONS
SETUP
WELD MODE
UltimArc™ Control
OUTPUT
ON OUTPUT
OFF
+ +
AMPS
WFS VOLTS
TRIM
220 OFF
3
TOUCH START TIG
No UltimArc™ Control are
active for Touch Start TIG.
MODE
TOUCH START 3
WELD MODE
UltimArc™ Control
Maximum
Amperage
No Arc starting Options are
active for Touch Start TIG
START OPTIONS
EFFECT DESCRIPTION
END OPTIONS
0 To 10 seconds
Function Crater Time
During the Crater time, the
machine will ramp up or down
from the Weld Procedure to
the Crater Procedure.
BASIC OPERATION
CONTROL OPTIONS
