AUPS-C20 UPS Module
Page 18
Step 7: Install battery 3 and battery 4 into the AUPS-C20 (Figure 3-6). Make sure the
battery packs are connected to the battery connectors on the battery board
(Figure 3-6).

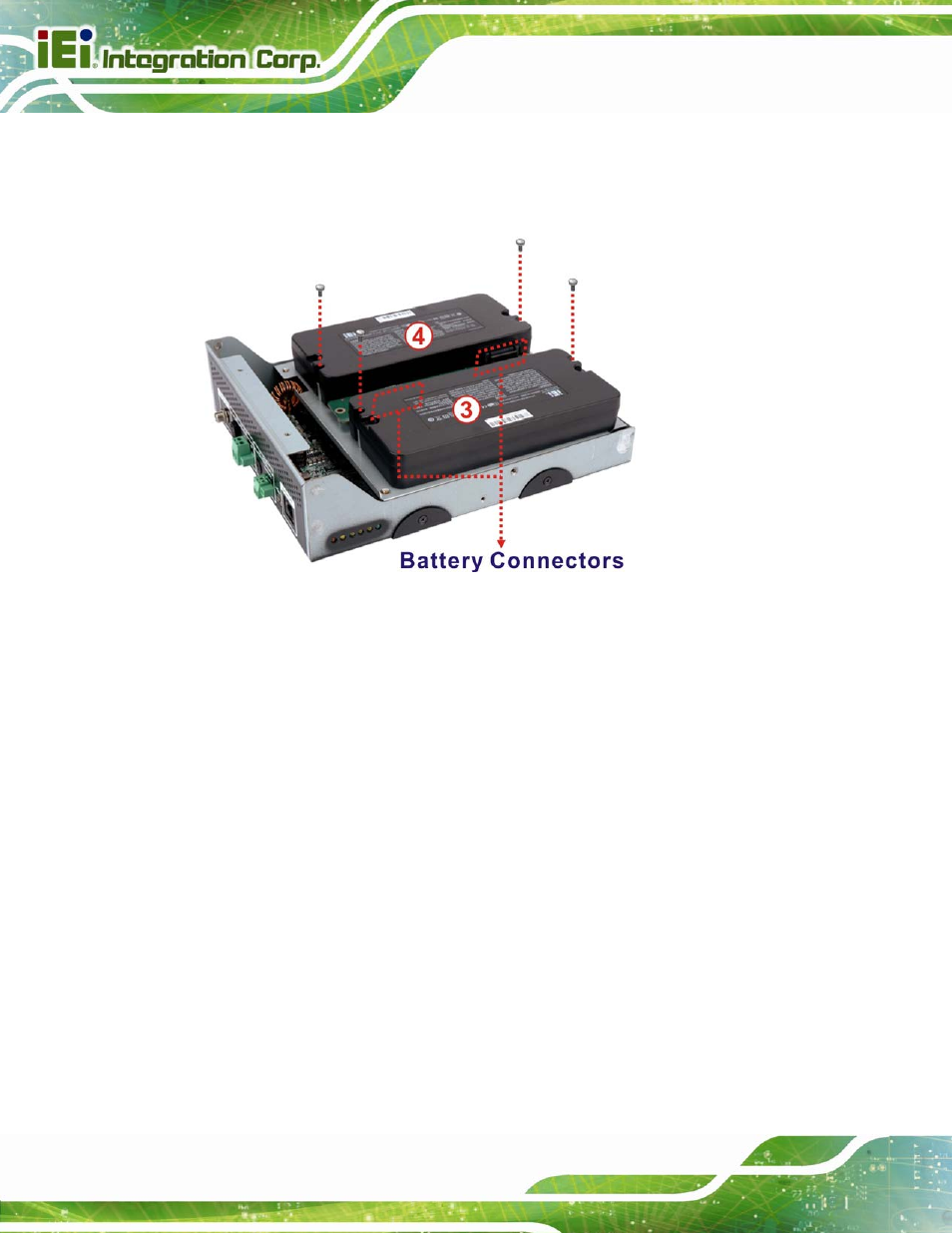

Figure 3-6: Battery Pack Installation On The Upper Layer
Step 8: Secure each battery pack with two retention screws (Figure 3-6).
Step 9: Replace the top cover.
3.5 Mounting the AUPS-C20
To mount the AUPS-C20 onto the rear panel of the AFOLUX panel PC, follow the steps
below.
Step 1: Install the mounting bracket onto the rear panel of the AFOLUX panel PC.
Align the screw holes in the mounting bracket with the VESA screw holes in the
rear of the panel PC. Secure the mounting bracket to the panel PC with four
retention screws (Figure 3-7).
