AUPS-C20 UPS Module

Page 4

1.3.2 LED Indicators

The side panel of the AUPS-C20 has six LED indicators to indicate the power and battery

status (Figure 1-3).

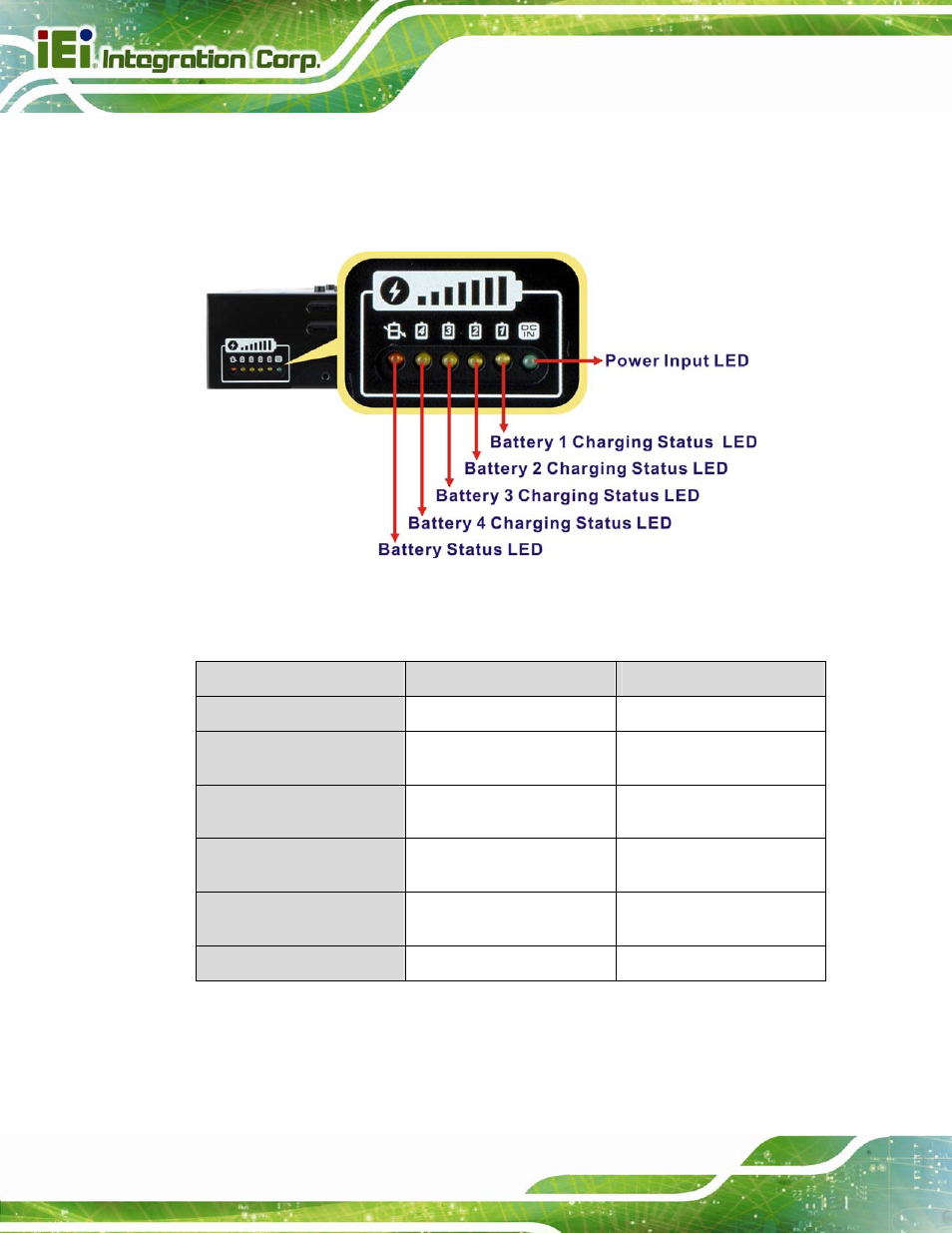

Figure 1-3: AUPS-C20 LED Indicators

All the LED statuses are listed in Table 1-1.

LED (Color)/Status

On

Blinking

Power Input (Green)

DC power in

--

Battery 1 Charging Status

(Yellow)

Discharging (battery full)

Charging

Battery 2 Charging Status

(Yellow)

Discharging (battery full)

Charging

Battery 3 Charging Status

(Yellow)

Discharging (battery full)

Charging

Battery 4 Charging Status

(Yellow)

Discharging (battery full)

Charging

Battery Status (Orange)

Battery discharging

Battery low

Table 1-1: LED Indications
