AFOLUX LX Panel PC

Page 44

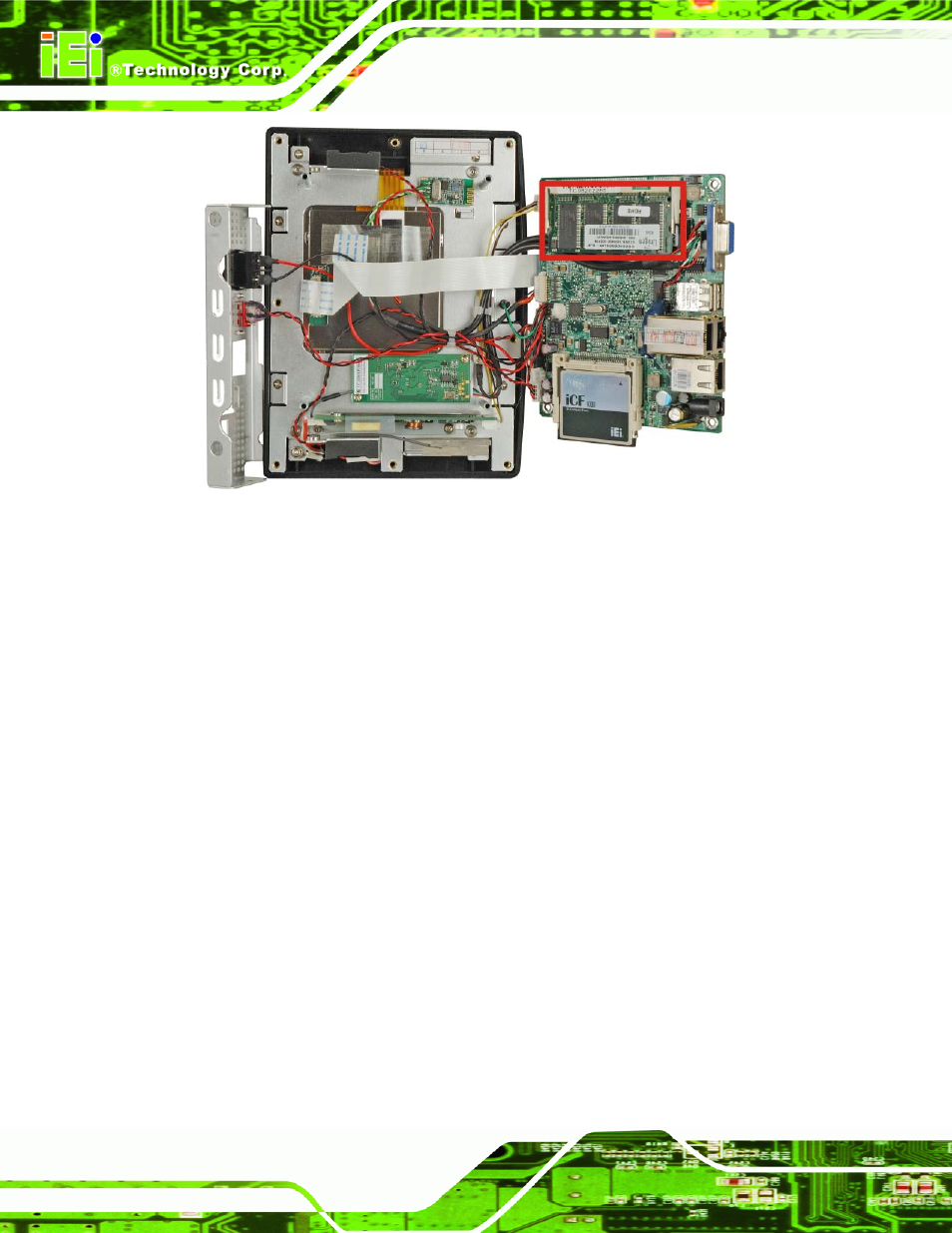

Figure 4-4: SO-DIMM Socket Location

Step 4:

Remove the DDR memory module by pulling both the spring retainer clips

outward from the socket.

Step 5:

Grasp the DDR memory module by the edges and carefully pull it out of the

socket.

Step 6:

Install the new DDR memory module by pushing it into the socket at an angle

Step 7:

Gently pull the spring retainer clips of the SO-DIMM socket out and push the

rear of the DDR memory module down (Figure 4-5).

Step 8:

Release the spring retainer clips on the SO-DIMM socket. They clip into place

and secure the DDR memory module in the socket.

Step 0:
