AFOLUX LX Panel PC

Page 38

PIN NO.

RS-232

RS-422

RS-485

6

DSR

RX-

7

RTS

RX+

8

CTS

9

RI

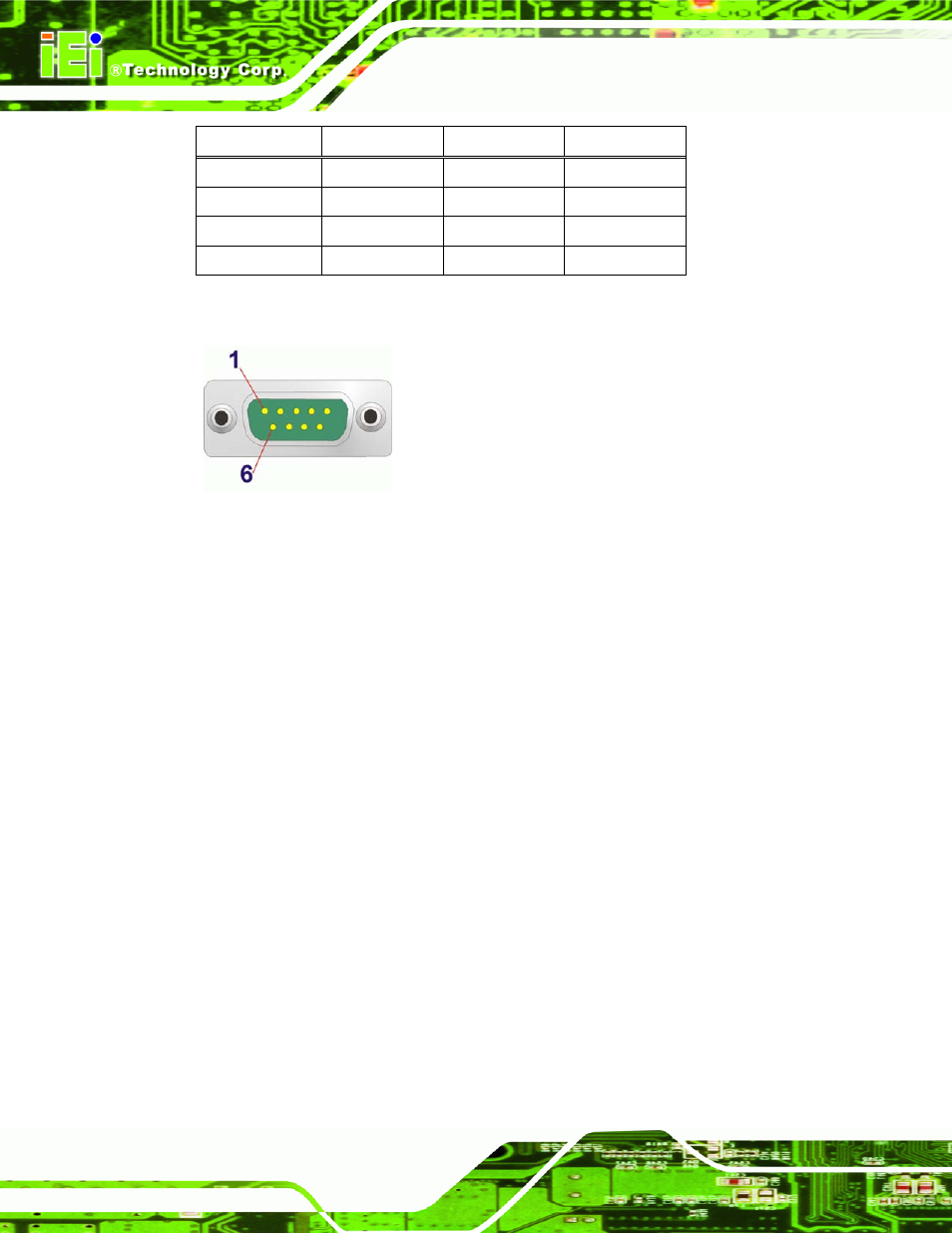

Table 3-2: RS-232/422/485 Pinouts

Figure 3-14: Serial Port Pinout Location

3.8.3 USB Device Connection

There are two external USB 2.0 connectors. To connect a USB 2.0 or USB 1.1 device,

please follow the instructions below.

Step 1:

Located the USB connectors

. The locations of the USB connectors are shown

in Chapter 2.

Step 2:

Align the connectors.

Align the USB device connector with one of the

connectors on the bottom panel. See Figure 3-15.
