Figure 3-11: Serial Device Connector
Step 4: Secure the connector . Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
To remove the serial device cable, follow the instructions below.
Step 1: Pull back the cover on the RJ-45 plug.
Step 2: Insert a screwdriver between the case and the clip on the RJ-45 plug.
Step 3: Twist the screwdriver and pull the plug to release.
Step 0:

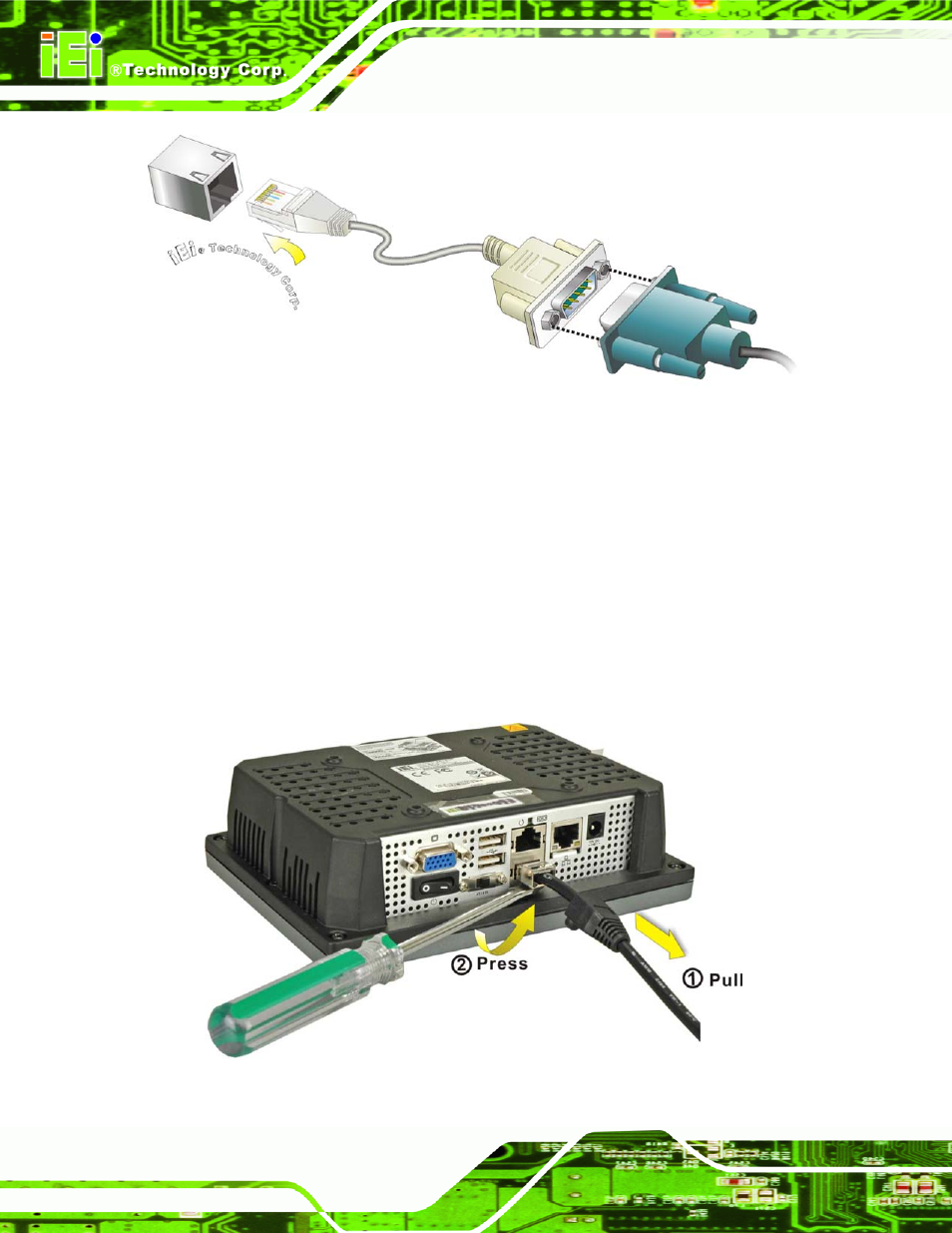

Figure 3-12: Serial Cable Removal
