AFOLUX LX Panel PC
Page 33

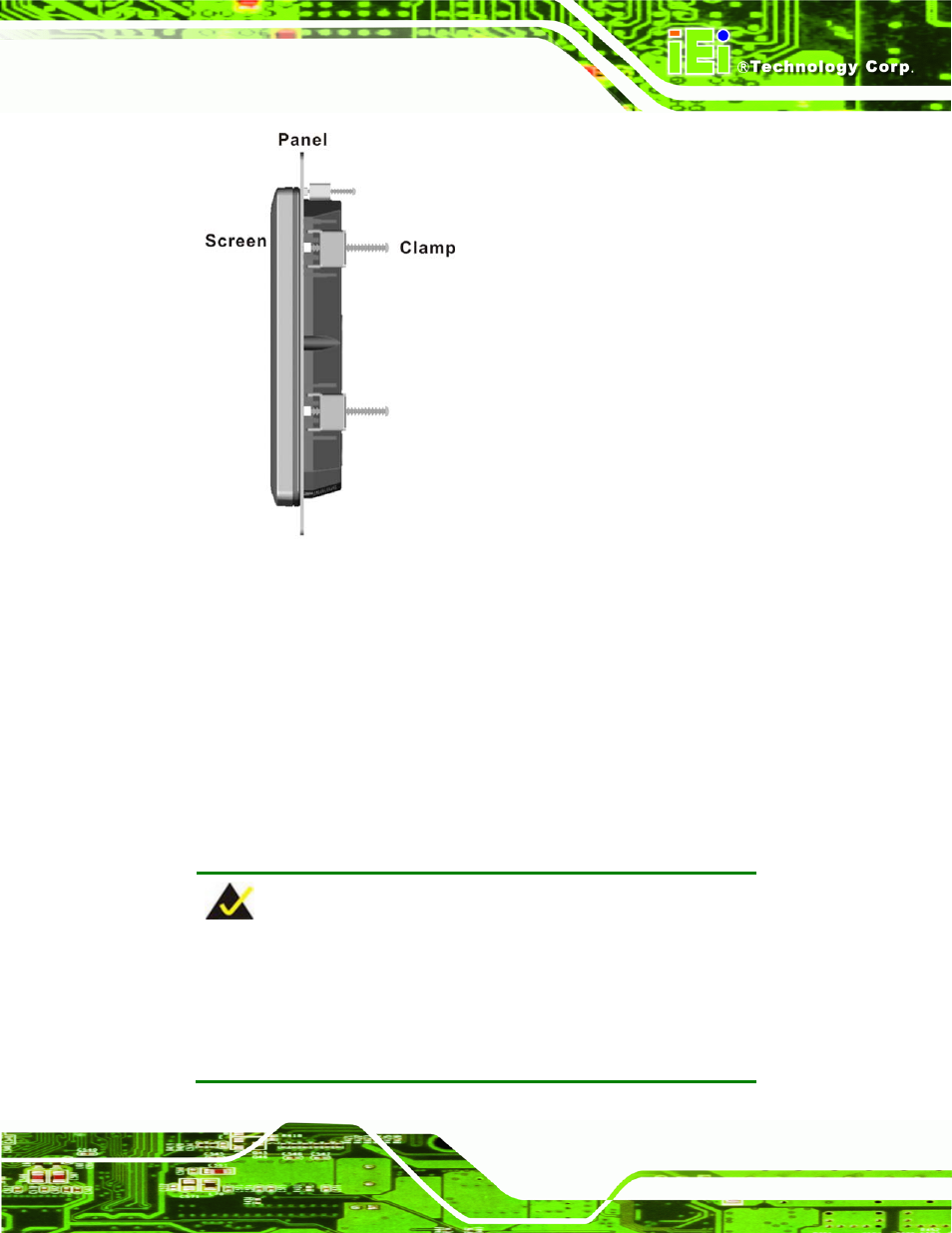

Figure 3-8: Tighten the Panel Mounting Clamp Screws
3.7.3 Arm/Stand Mounting
The AFOLUX LX is VESA (Video Electronics Standards Association) compliant and can
be mounted on an arm with a 75mm interface pad. To mount the AFOLUX LX on an arm,
please follow the steps below.
Step 1: The arm/stand is a separately purchased item. Please correctly mount the
arm/stand. To do this, refer to the installation documentation that came with the
mounting arm.
NOTE:
When purchasing the arm/stand please ensure that it is VESA
compliant and that the arm has a 75mm interface pad. If the mounting
arm is not VESA compliant it cannot be used to support the AFOLUX
LX flat panel PC.
