AFOLUX LX Panel PC

Page 6

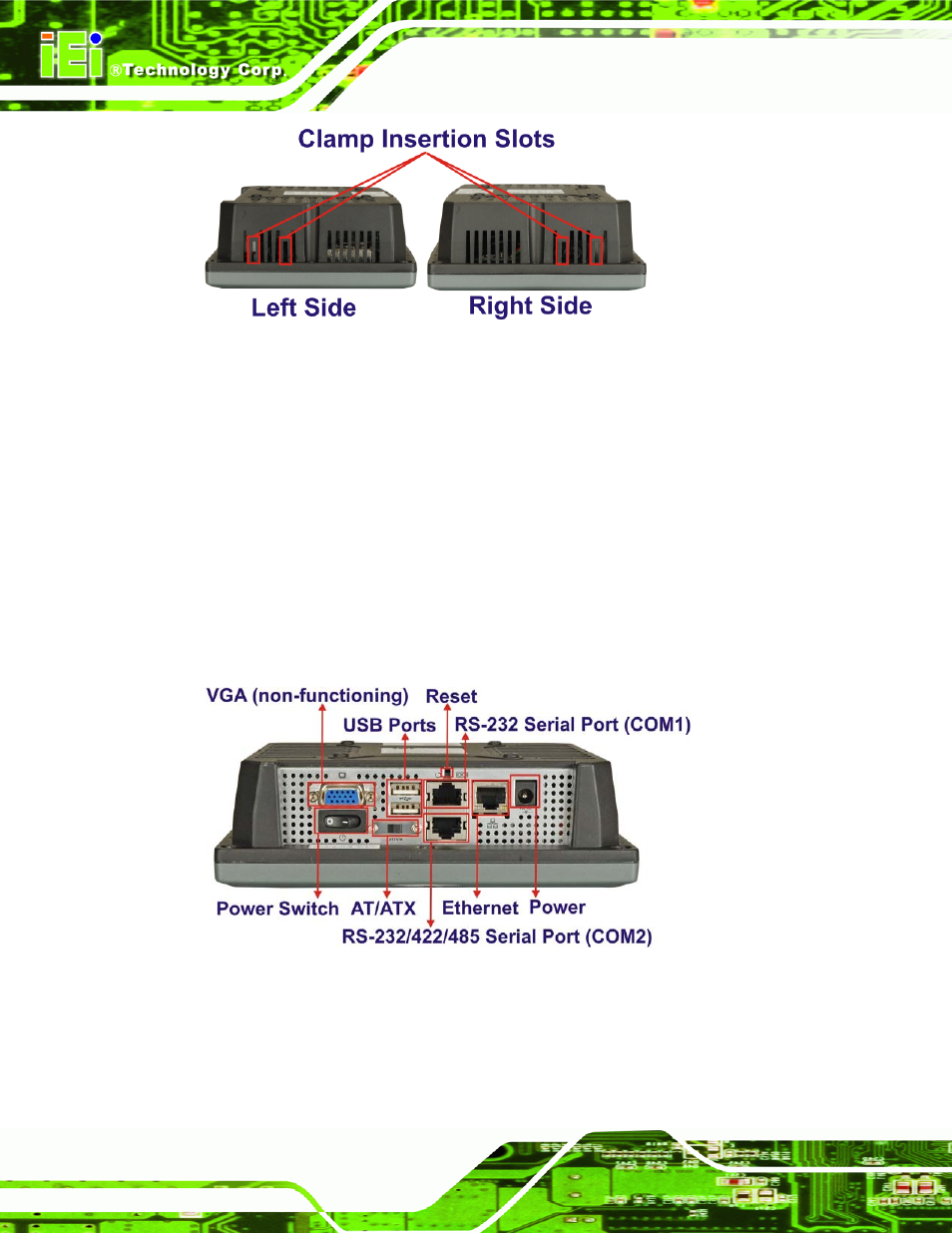

Figure 1-5: Side View

1.2.5 Bottom Panel

The bottom panel of the AFOLUX LX has the following I/O interfaces (Figure 1-6):

1 x RS-232 serial port connector

1 x RS-232 or RS-422/485 serial port connector (selected by a jumper)

1 x AC power adapter connector

1 x RJ-45 Gigabit Ethernet connectors

2 x USB 2.0 connectors

1 x AT/ATX switch

1 x Power switch

Figure 1-6: AFOLUX LX Bottom View
