AFL-xxA-N270 Series Panel PC

Page 4

AFL-xxA-N270 provides access to external interface connectors that include LAN, USB

2.0, serial port, reset button, power connector and power switch.

1.2.2 Front Panel

The front side of the AFOLUX AFL-xxA-N270 series is a flat panel TFT LCD screen

surrounded by an ABS/PC plastic frame. The top of the front panel has a power LED.

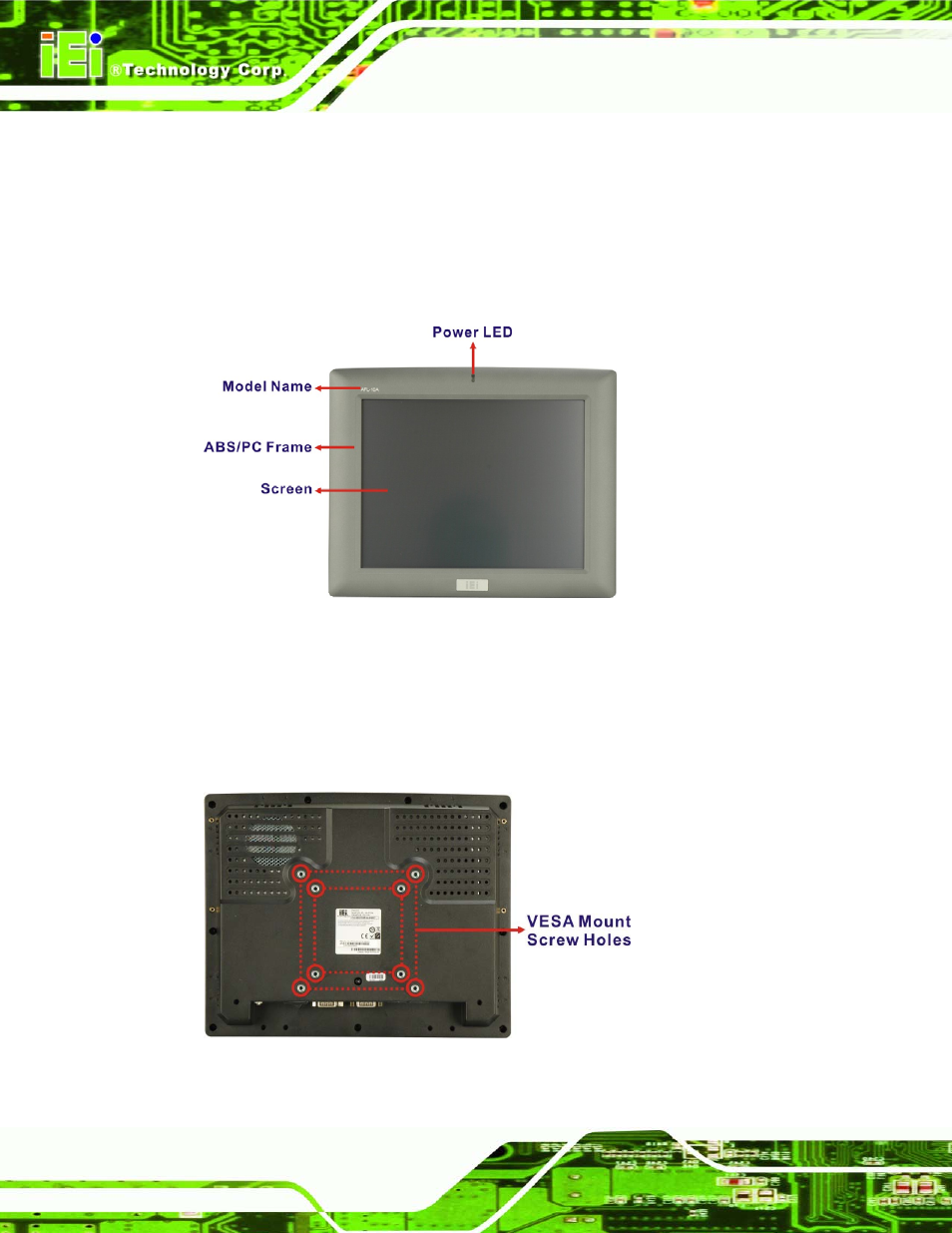

Figure 1-2: AFL-xxA-N270 Front View

1.2.3 Rear Panel

The rear panel provides access to retention screw holes that support the wall mounting.

Refer to Figure 1-3.

Figure 1-3: AFL-xxA-N270 Rear View
