TANK-800 Embedded System
Page 32
Activity/Link LED Speed LED
STATUS DESCRIPTION STATUS DESCRIPTION
Off No link Off 10 Mbps connection
Yellow Linked Green 100 Mbps connection
Blinking TX/RX activity Orange 1 Gbps connection
Table 3-3: RJ-45 Ethernet Connector LEDs
3.7.7 Power Input, 3-pin Terminal Block
CN Label: POWER 1
CN Type:
3-pin terminal block
CN Location: See Figure 1-2
CN Pinouts: See Figure 3-21
Connect the leads of a 9V~36V DC power supply into the terminal block. Make sure that
the power and ground wires are attached to the correct sockets of the connector.

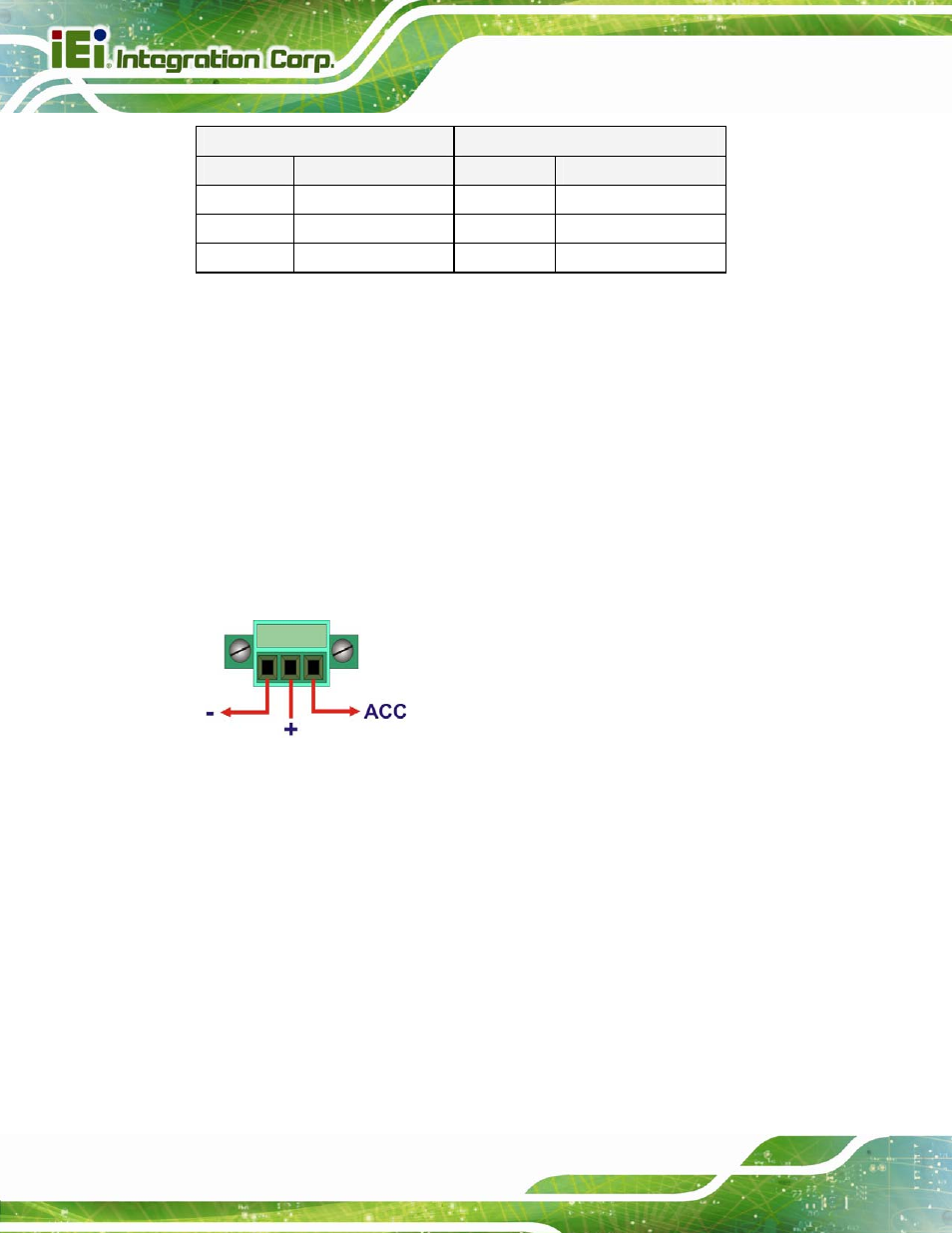

Figure 3-21: 3-pin Terminal Block Pinout Location
3.7.8 Power Input, 4-pin DIN Connector
CN Label: POWER 2
CN Type: 4-pin DIN connector
CN Location: See Figure 1-2
CN Pinouts: See Table 3-4 and Figure 3-22
The power connector connects to the 10.5V~36V DC power adapter.
