Figure a-22: auto recovery utility, Figure a-23: launching the recovery tool, Figure a-24: auto recovery environment for windows – IEI Integration TANK-800-D525 v1.14 User Manual
Page 106
TANK-800 Embedded System
Page 94

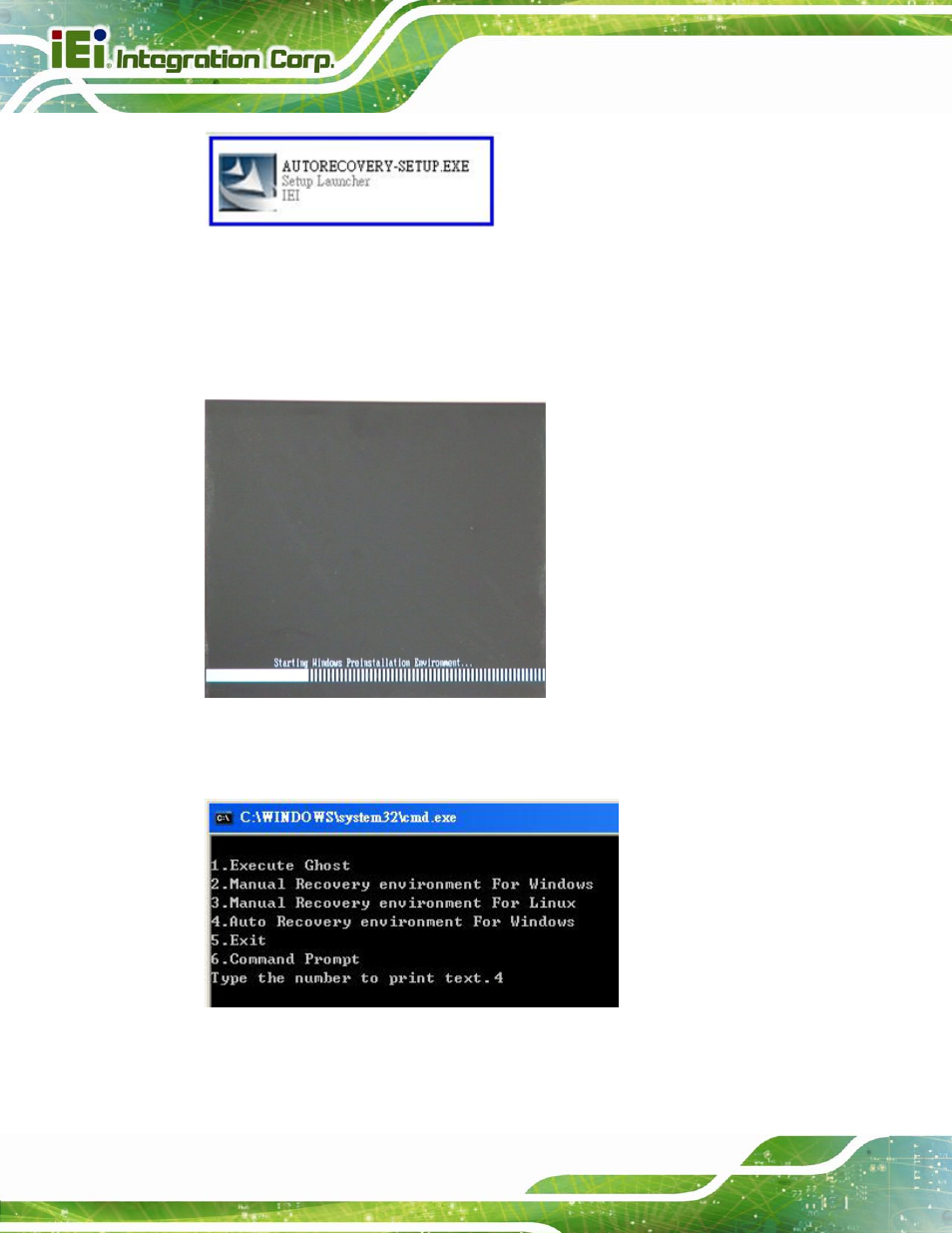

Figure A-22: Auto Recovery Utility
Step 3:
Reboot the system from the recovery CD. When prompted, press any key to
boot from the recovery CD. It will take a while to launch the recovery tool. Please
be patient!
Figure A-23: Launching the Recovery Tool
Step 4:
When the recovery tool setup menu appears, press <4> then
Figure A-24: Auto Recovery Environment for Windows
