TANK-GM45 Embedded System
Page 19

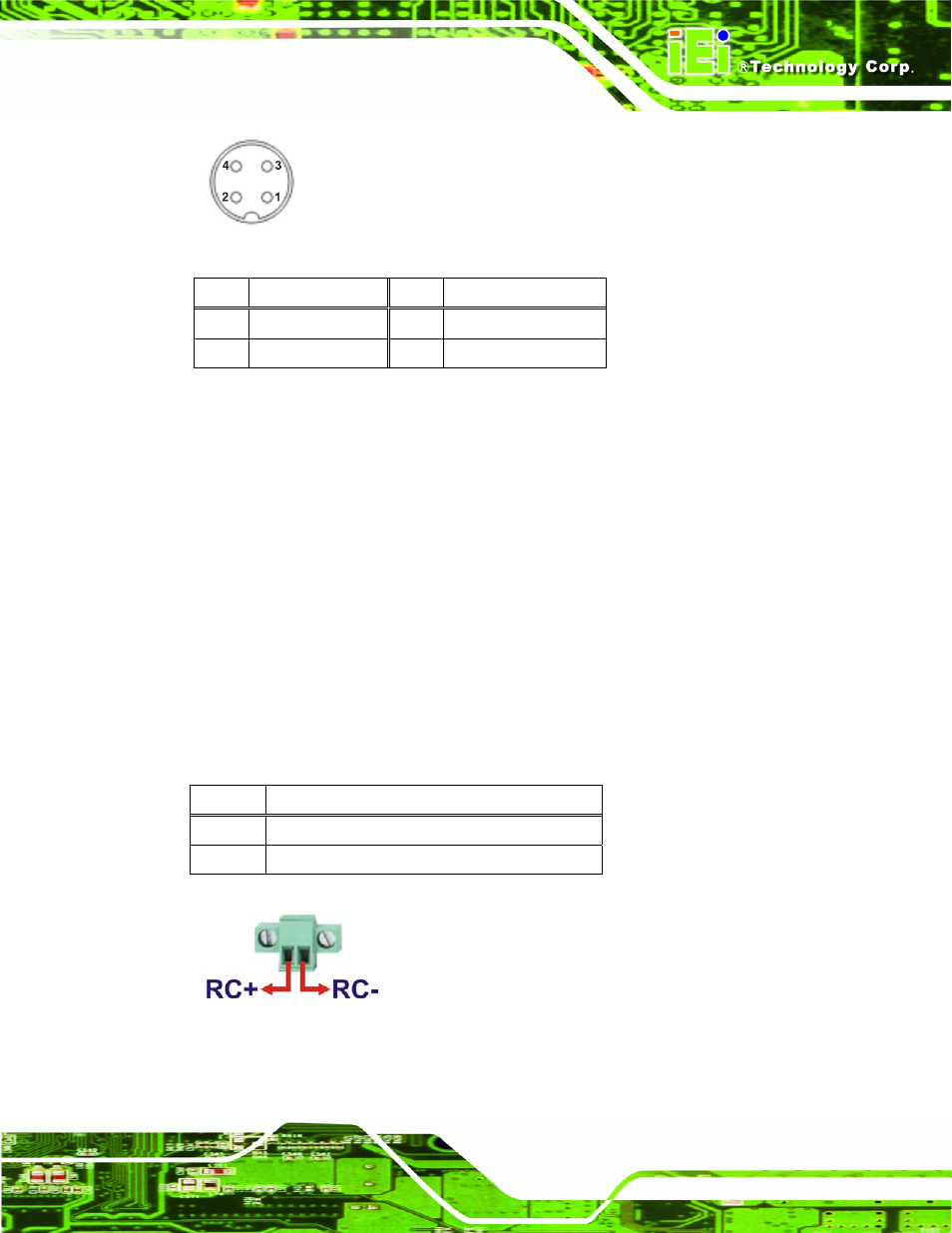

Figure 3-11: Power Input Connector
Pin Description Pin Description
1 +12V 3 +12V
2 GND 4 GND
Table 3-6: Power Input Pinouts
3.4.4 Remote Control Connector
CN Label: GPIO (Remote Control)
CN Type: 2-pin terminal block
CN Location: See Figure 3-7
CN Pinouts: See Table 3-7 and Figure 3-12
The GPIO terminal block connects to a remote control device. Users can control the
system power on/off by inputting high or low voltage into the terminal block.
ƒ Turn off the system: more than 1 V input
ƒ Turn on the system: less than 0.5 V input
Pin Description
1 RC+
2 RC-
Table 3-7: Remote Control Terminal Block Pinouts
Figure 3-12: Remote Control Terminal Block Pinout Location
