3.1 Installation Precautions
During installation, be aware of the precautions below:
ƒ Read the user manual: The user manual provides a complete description of
the TANK-GM45, installation instructions and configuration options.
ƒ DANGER! Disconnect Power: Power to the TANK-GM45 must be
disconnected during the installation process, or before any attempt is made to
access the rear panel. Electric shock and personal injury might occur if the
rear panel of the TANK-GM45 is opened while the power cord is still
connected to an electrical outlet.
ƒ Qualified Personnel: The TANK-GM45 must be installed and operated only
by trained and qualified personnel. Maintenance, upgrades, or repairs may
only be carried out by qualified personnel who are familiar with the associated
dangers.
ƒ Air Circulation: Make sure there is sufficient air circulation when installing the
TANK-GM45. The TANK-GM45’s cooling vents must not be obstructed by any
objects. Blocking the vents can cause overheating of the TANK-GM45. Leave
at least 5 cm of clearance around the TANK-GM45 to prevent overheating.
ƒ Grounding: The TANK-GM45 should be properly grounded. The voltage
feeds must not be overloaded. Adjust the cabling and provide external
overcharge protection per the electrical values indicated on the label attached
to the back of the TANK-GM45.
3.2 Hard Disk Drive (HDD) Installation
To install the hard drive, please follow the steps below:
Step 1: Remove the bottom panel by removing 15 retention screws from the rear panel
(Figure 3-1) and the bottom panel (Figure 3-2).

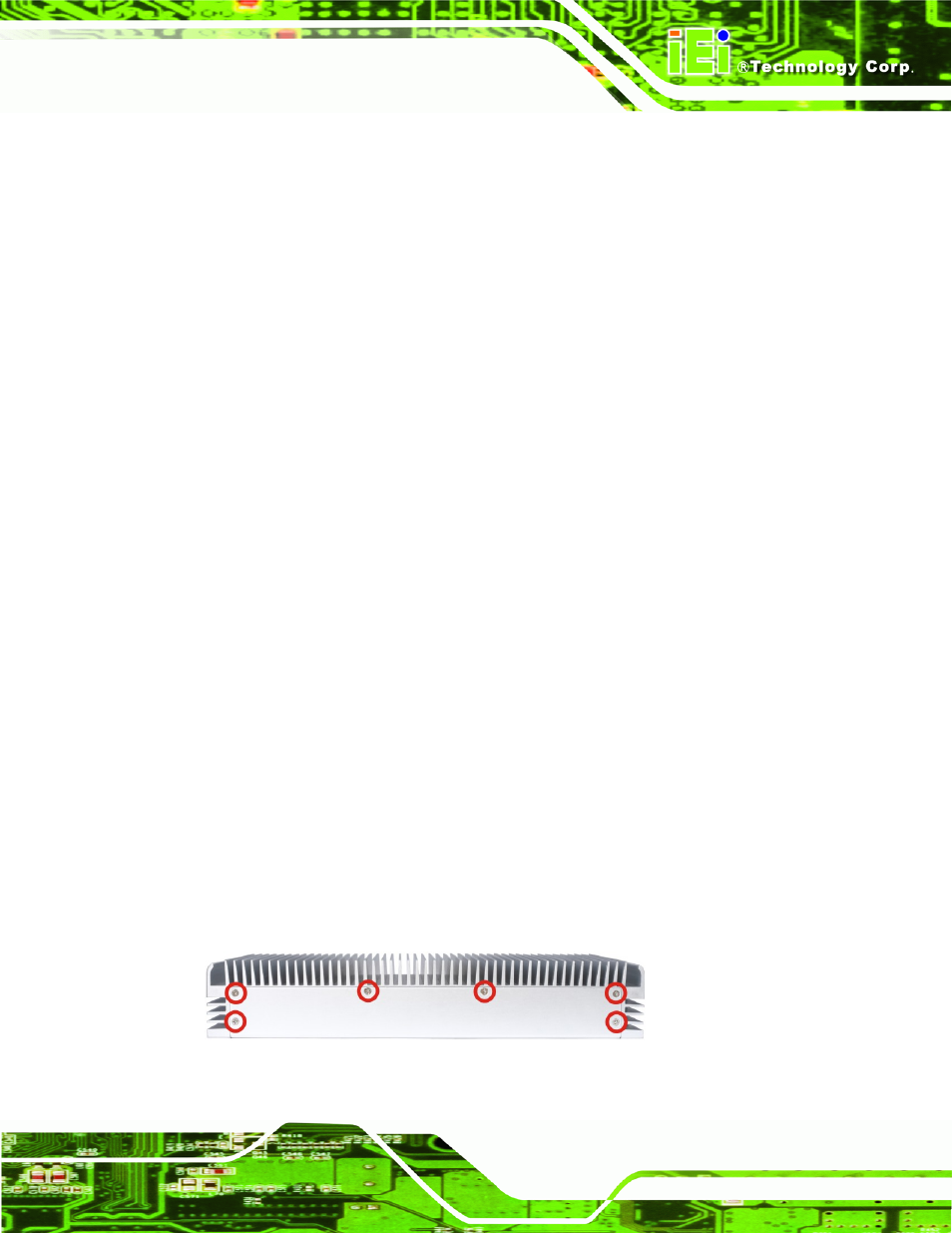

Figure 3-1: Bottom Panel Retention Screws (Rear Panel)
