TANK-GM45 Embedded System

Page 5

1.6 Connector Panel

All external peripheral interface connectors are located on the front panel of the

TANK-GM45 . The peripheral interface connectors are shown in Figure 1-2.

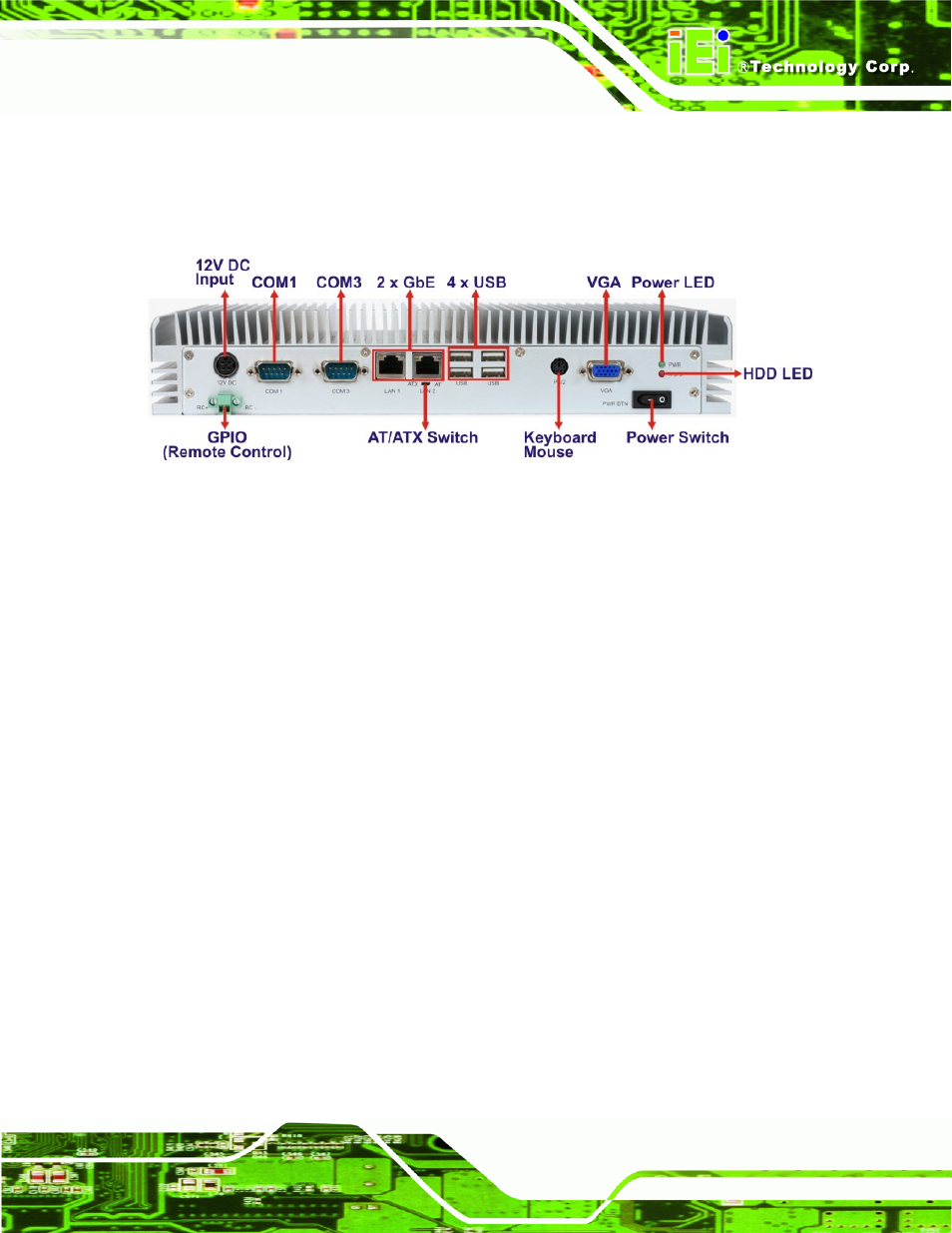

Figure 1-2: TANK-GM45 Peripheral Connectors

Connectors and buttons on the rear panel include the following.

1 x 12 V DC power input

1 x Power switch

1 x VGA output

1 x RS-232 port isolated serial port

1 x RS-422/485 isolated serial port

4 x USB ports

2 x Gigabit Ethernet ports

1 x GPIO terminal block for remote control

1 x PS/2 keyboard/mouse connector

1 x Power LED

1 x HDD LED

1 x AT/ATX power switch
