NANO-9453 EPIC Motherboard

Page 48

9 LVDSA_CLK+

10

LVDSA_CLK-

11 N/C

12 N/C

13 GROUND

14 GROUND

15 LVDSB_Y0+ 16 LVDSB_Y0-

17 LVDSB_Y1+ 18 LVDSB_Y1-

19 LVDSB_Y2+ 20 LVDSB_Y2-

21 LVDSB_CLK+

22 LVDSB_CLK-

23 N/C

24 N/C

25 GROUND

26 GROUND

27 VCC_LVDS 28 VCC_LVDS

29 VCC_LVDS 30 VCC_LVDS

Table 4-13: LVDS LCD Port Connector Pinouts

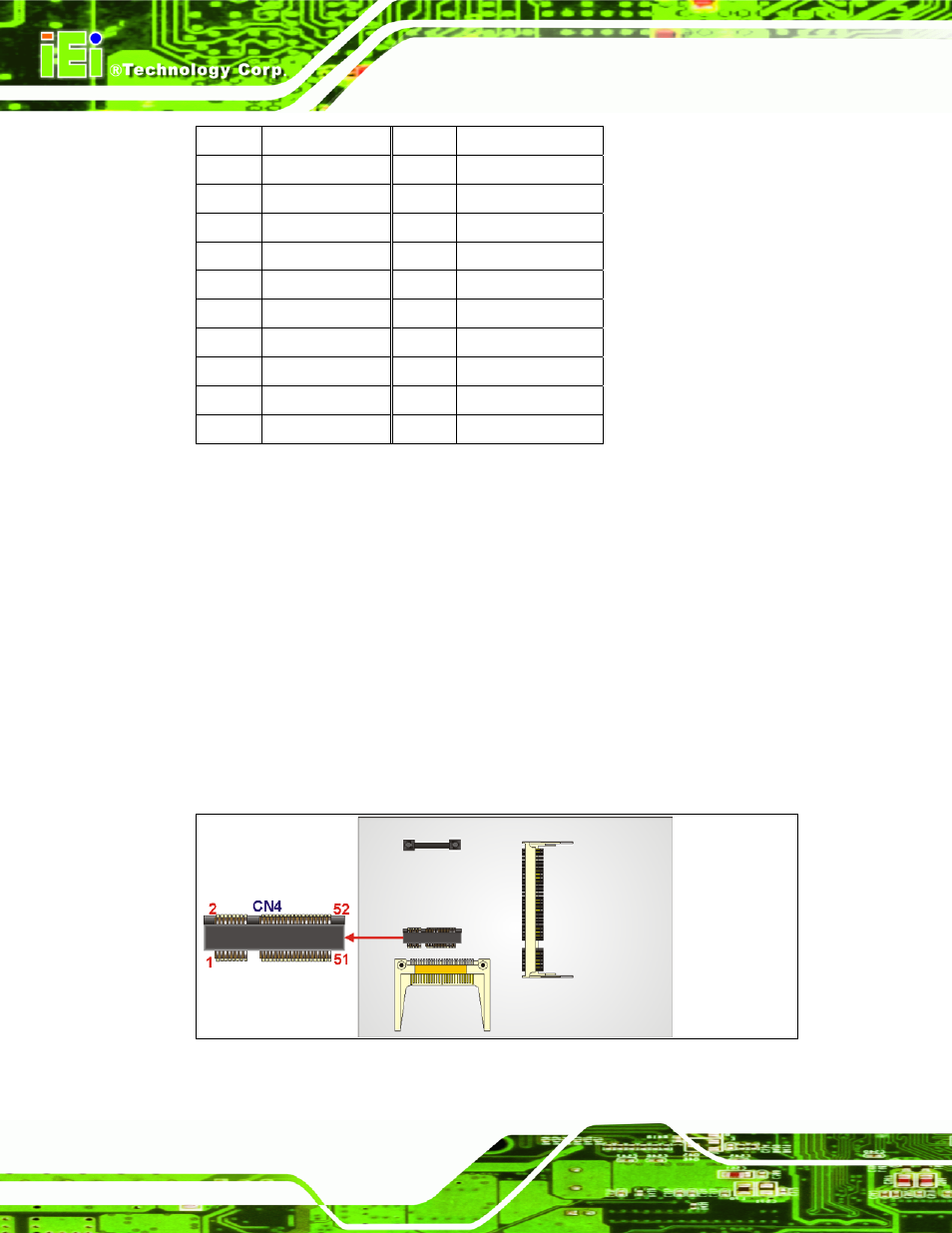

4.2.12 Mini PCIe Socket

CN Label:

CN4

CN Type:

26-pin box header

CN Location:

See

CN Pinouts:

See

The 52-pin mini PCIe socket supports the latest PCIe extension cards such as wireless

LAN cards and other compatible devices.
