4.2.3 ATX Power Supply Enable Connector
CN Label: ATXCTL1
CN Type: 3-pin wafer (1x3)
CN Location: See Figure 4-5
CN Pinouts: See Table 4-5
The ATX power supply enable connector enables the NANO-9453 to be connected to an
ATX power supply. In default mode, the NANO-9453 can only us an AT power supply. To
enable an ATX power supply the AT Power Select jumper must also be configured. Please
refer to Chapter 3 for more details.

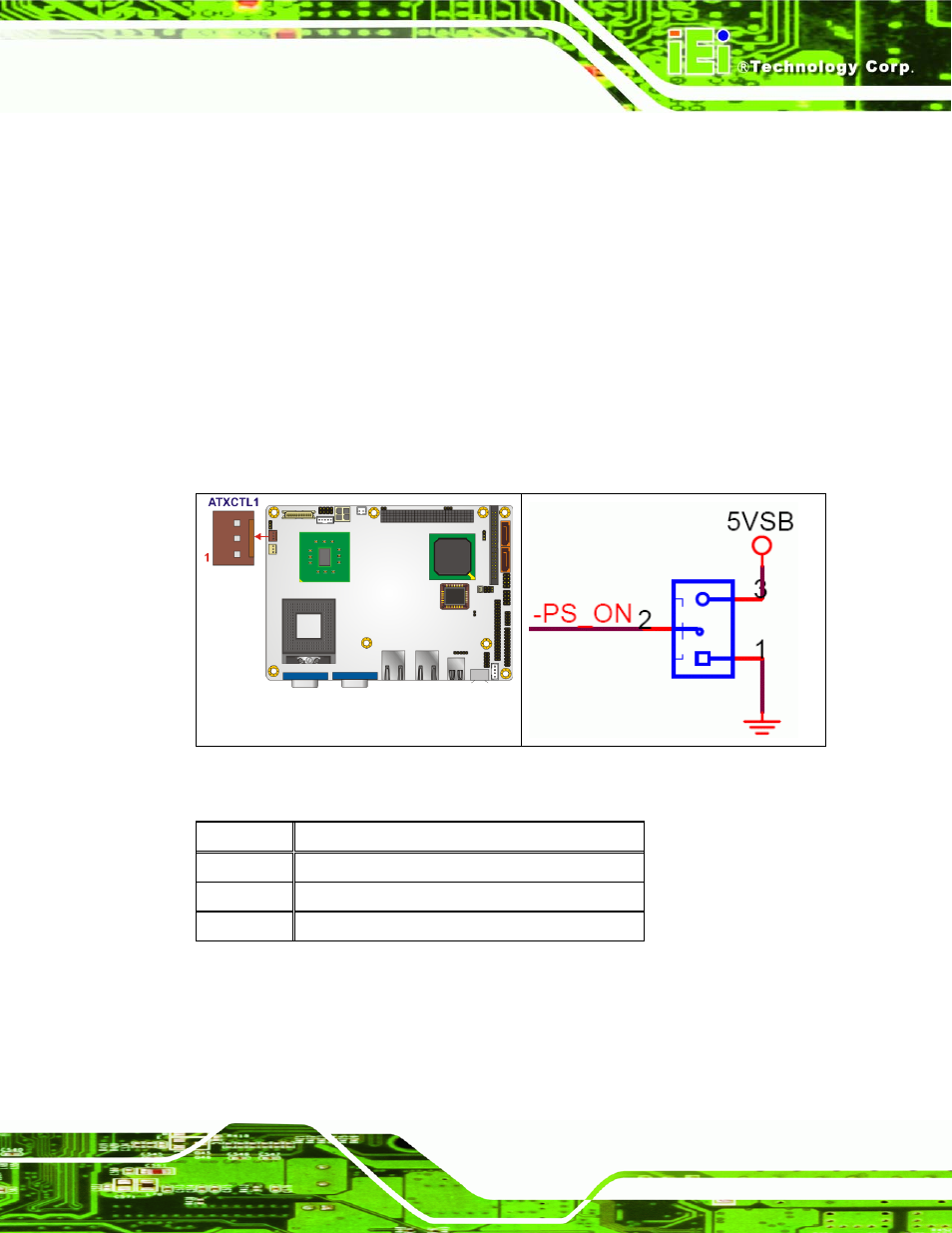

Figure 4-5: ATX Power Supply Enable Connector Location
PIN NO. DESCRIPTION
1 GND
2 PS_ON#
3 +5V Standby
Table 4-5: ATX Power Supply Enable Connector Pinouts
