NANO-9453 EPIC Motherboard

Page 44

FUNCTION PIN DESCRIPTION

FUNCTION

PIN DESCRIPTION

1 PWRBTSW-

2 VCC

Power

Button

3 Ground

Power LED

4 Ground

5 VCC

6 SYSRST-

HDD LED

7 -HDLED

Reset

8 GND

Table 4-10: Front Panel Connector Pinouts

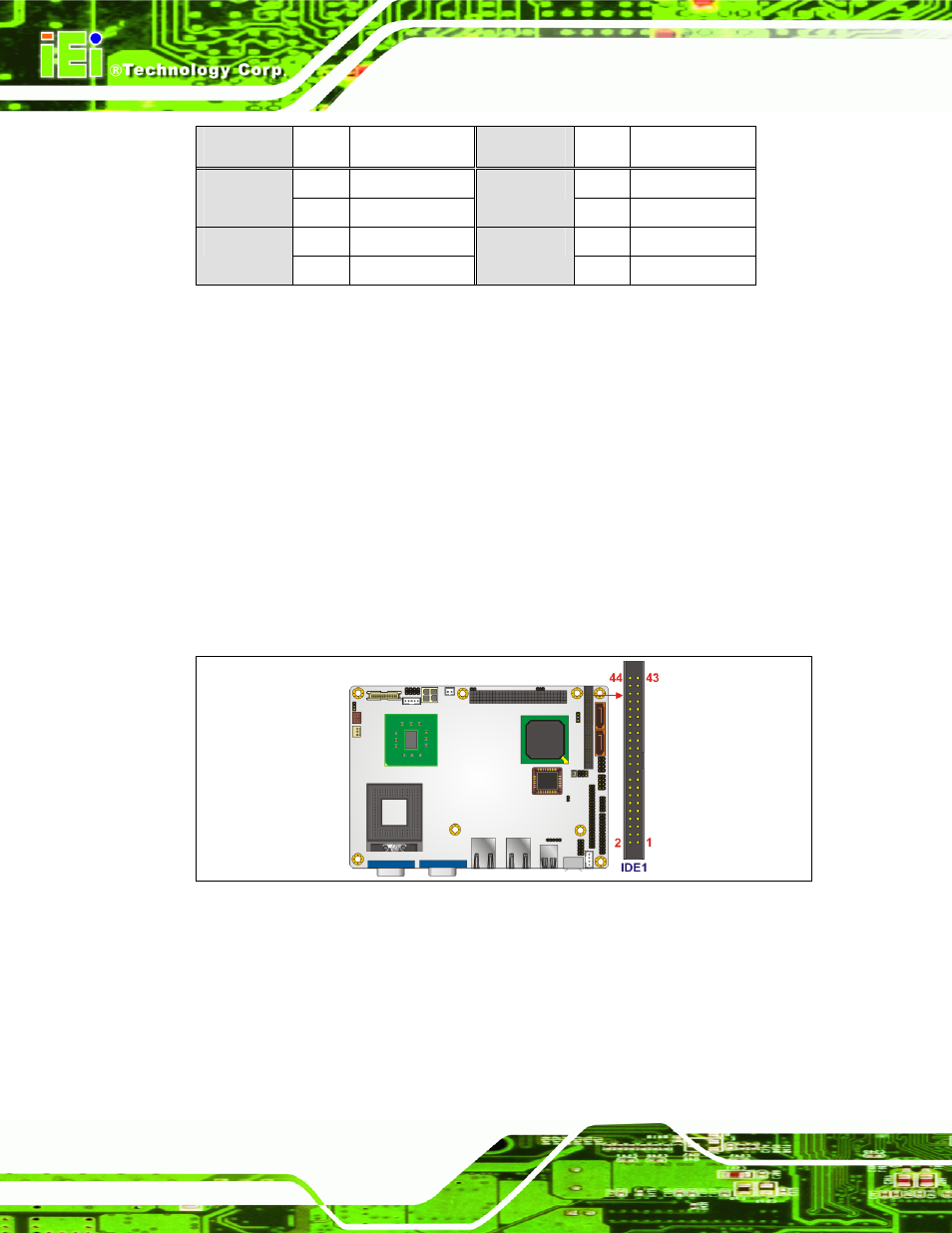

4.2.9 IDE Connector(44-pin)

CN Label:

IDE1

CN Type:

44-pin header (2x22)

CN Location:

See Figure 4-11

CN Pinouts:

See Table 4-11

One 44-pin IDE device connector on the NANO-9453 supports connectivity to two hard

disk drives.
