NANO-9453 EPIC Motherboard
Page 39
4.2.5 Compact Flash Socket
CN Label: CF1 (solder side)
CN Type: 50-pin header (2x25)

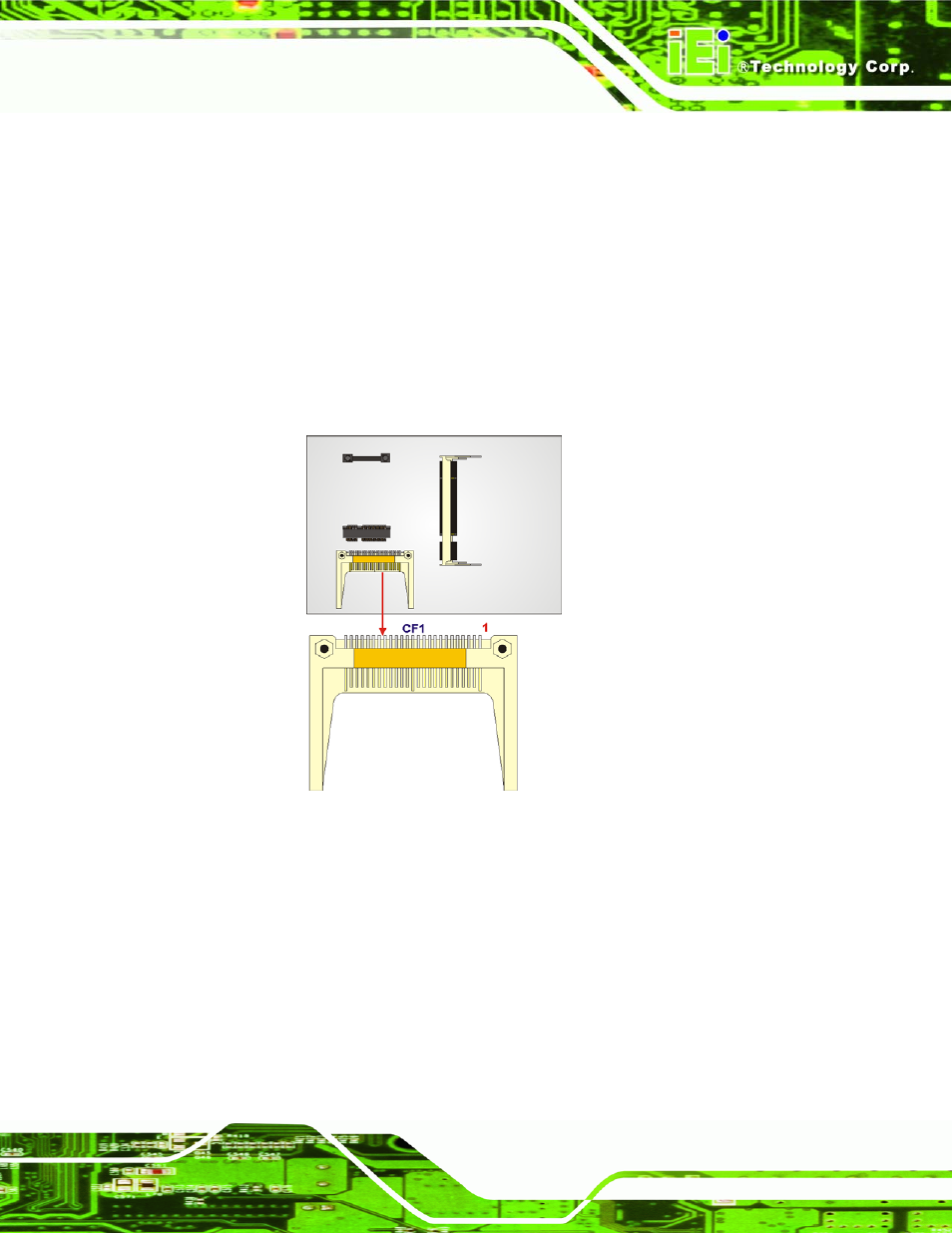

CN Location: See Figure 4-7
CN Pinouts: See Table 4-7
A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the
NANO-9453.
