NANO-9453 EPIC Motherboard

Page 47

4 GND

5 IR-TX

Table 4-12: Infrared Connector Pinouts

4.2.11 LVDS LCD Connector

CN Label:

LVDS1

CN Type:

30-pin crimp (2x10)

CN Location:

See Figure 4-13

CN Pinouts:

See Table 4-13

The 30-pin LVDS LCD connector can be connected to single channel or dual channel,

18-bit or 36-bit LVDS panel.

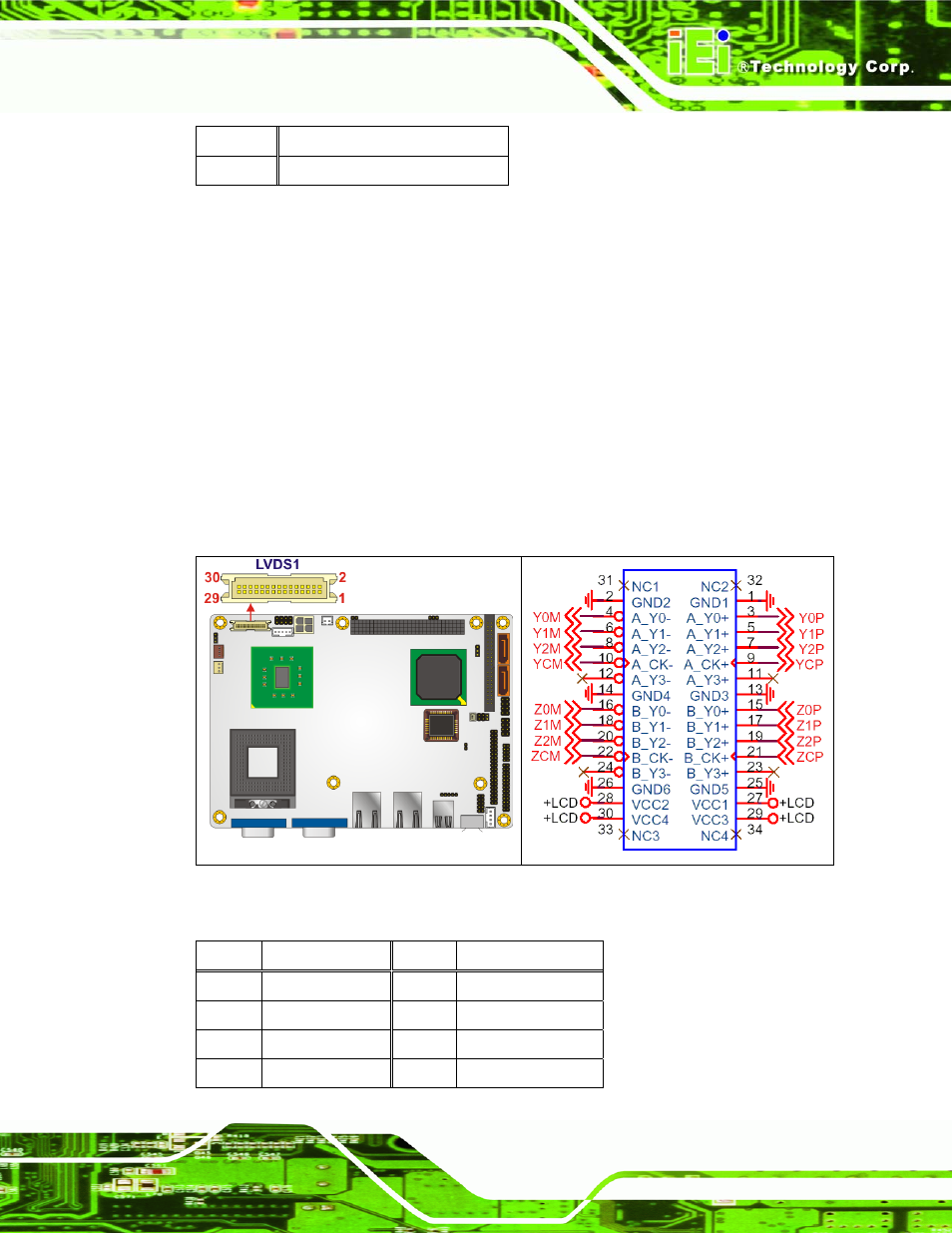

Figure 4-13: LVDS LCD Connector Pinout Locations

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1 GROUND 2 GROUND

3 LVDSA_Y0+

4 LVDSA_Y0-

5 LVDSA_Y1+

6 LVDSA_Y1-

7 LVDSA_Y2+

8 LVDSA_Y2-
