KINO-945GSE Motherboard

Page 59

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

USB Connector 1

USB Connector 2

1 VCC

2 GND

3 DATA1- 4 DATA2+

5 DATA1+ 6 DATA2-

7 GND

8 VCC

Table 4-19: USB Port Connector Pinouts

4.3 External Peripheral Interface Connector Panel

7

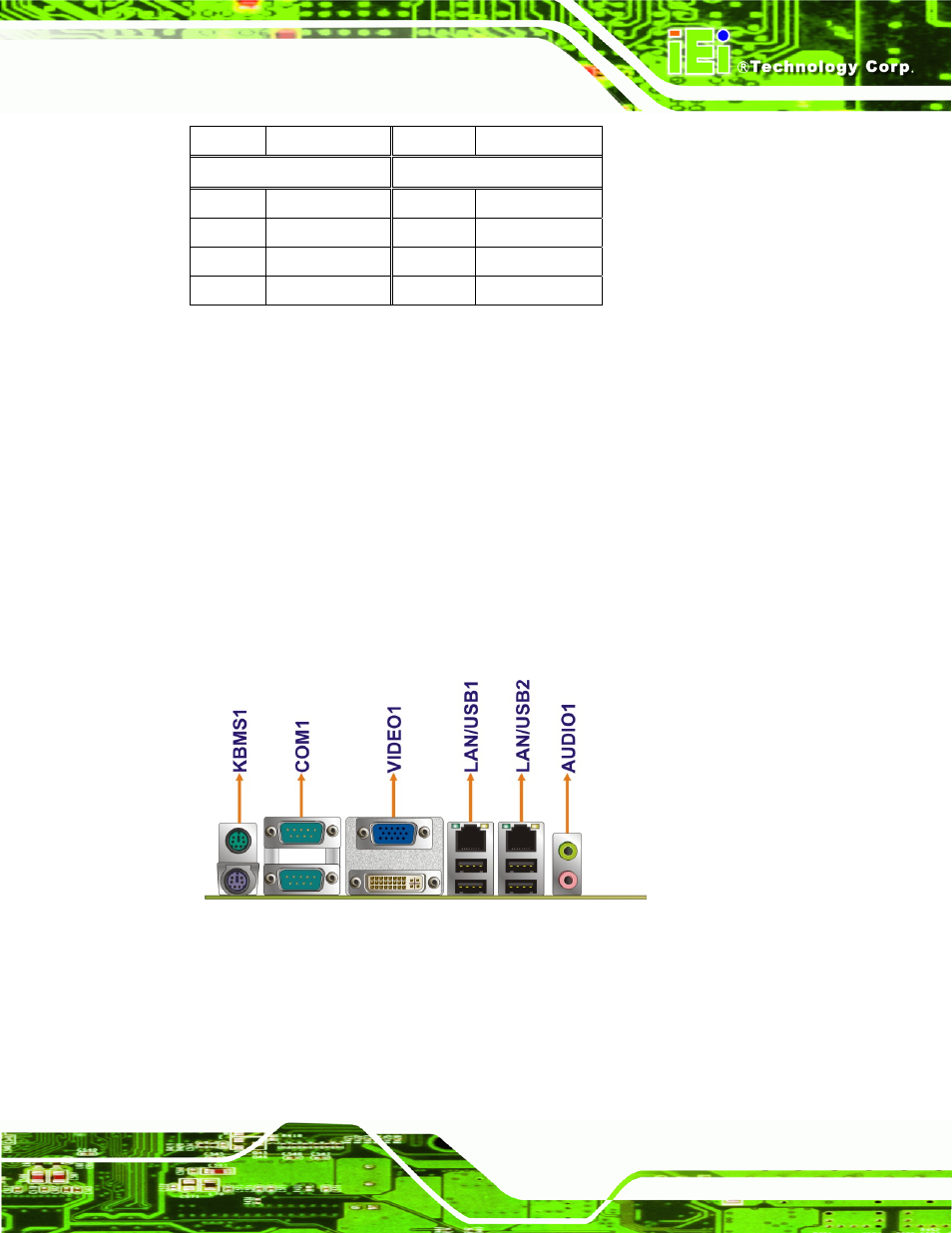

Figure 4-20 shows the KINO-945GSE external peripheral interface connector (EPIC)

panel. The KINO-945GSE EPIC panel consists of the following:

ƒ 2 x Audio jacks

ƒ 1 x DVI connector

ƒ 2 x RJ-45 LAN connectors

ƒ 2 x PS/2 connectors

ƒ 2 x Serial port connectors

ƒ 4 x USB connectors

ƒ 1 x VGA connector

Figure 4-20: KINO-945GSE External Peripheral Interface Connector

4.3.1 Audio Connector

CN Label:

AUDIO1

CN Type:

2 x audio jacks

CN Location:

See Figure 4-20
