1 peripheral interface connectors, 1 layout, Eripheral – IEI Integration KINO-945GSE v1.10 User Manual
Page 52: Nterface, Onnectors
KINO-945GSE Motherboard
Page 36
4.1 Peripheral Interface Connectors
This chapter outlines all internal and external connectors on the KINO-945GSE.
4.1.1 Layout

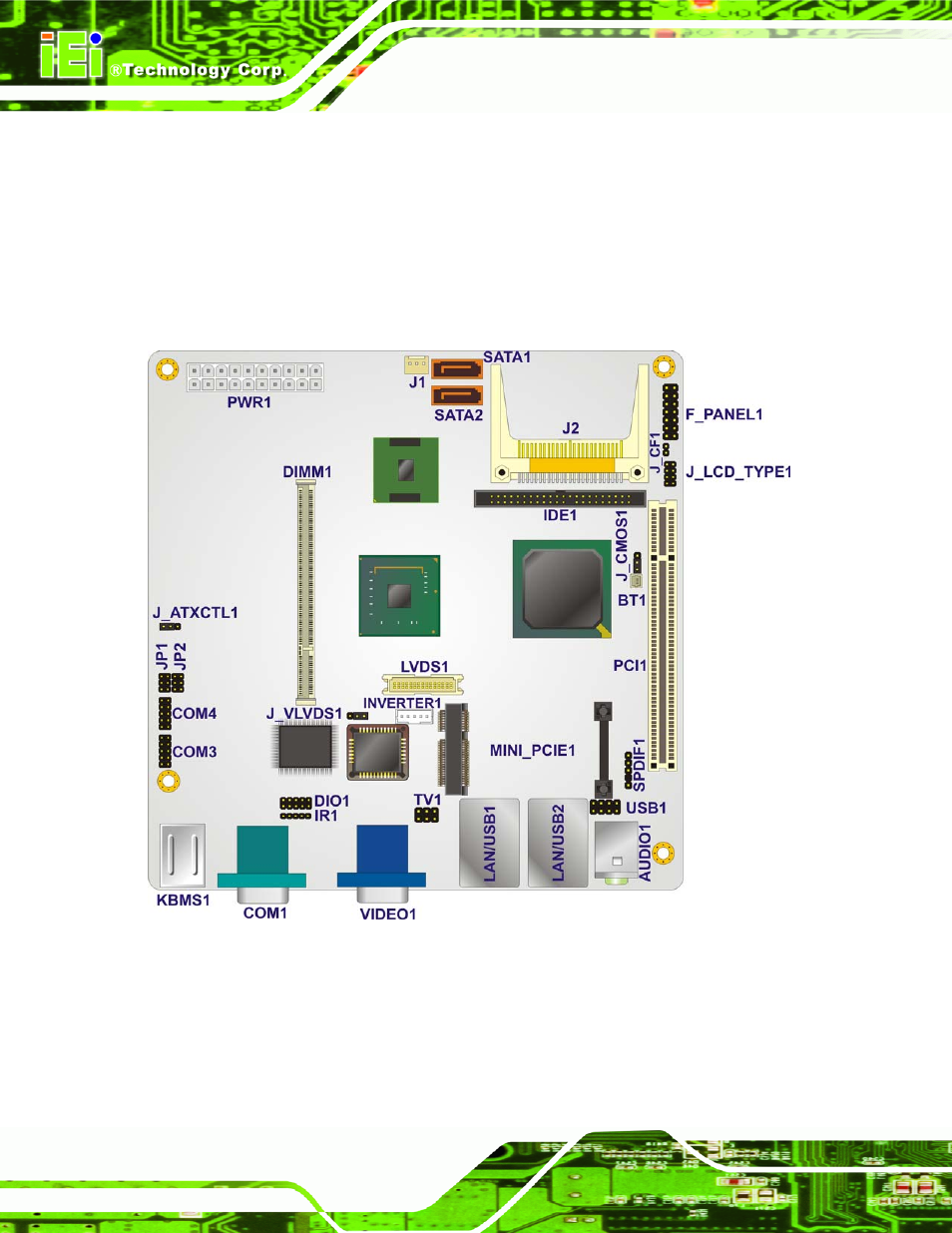

Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumpers.
Figure 4-1: Connector and Jumper Locations [Front Side]
