Figure 4-17: SPI Flash Connector

Pin Description

1 SPI_VCC

2 GND

3 SPI_CS

4 SPI_CLK

5 SPI_SO

6 SPI_SI

Table 4-17: SPI Flash Connector

4.2.16 TV Out Connector

CN Label:

TV1

CN Type:

6-pin header (2x3)

CN Location:

See Figure 4-18

CN Pinouts:

See Table 4-18

The 2x3 pin TV out connector connects to a TV output by using an S-Video or RCA

connector. The TV out connector makes displaying media data on a television easier.

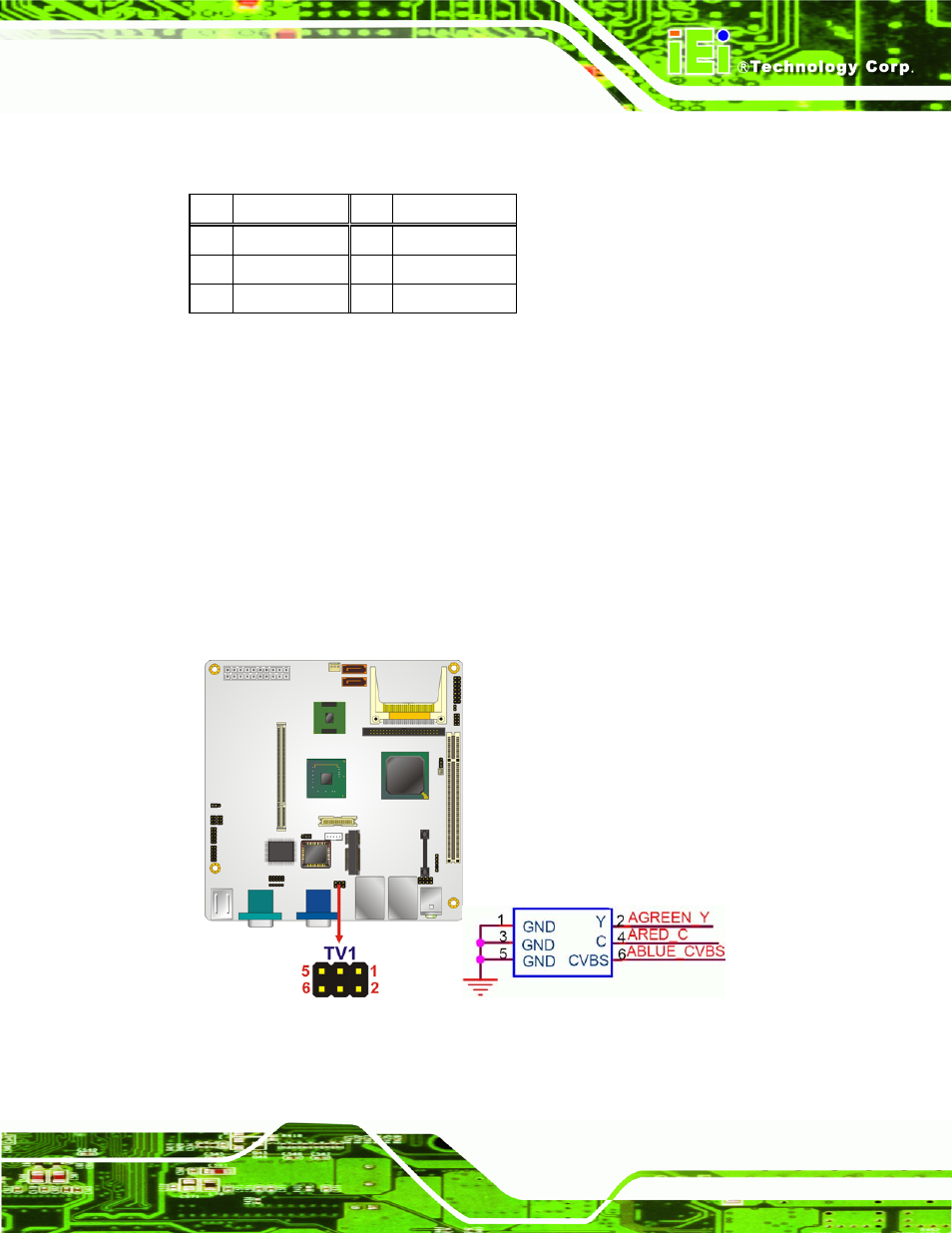

Figure 4-18: TV Connector Pinout Locations
