E - 11
CONNECTIONS

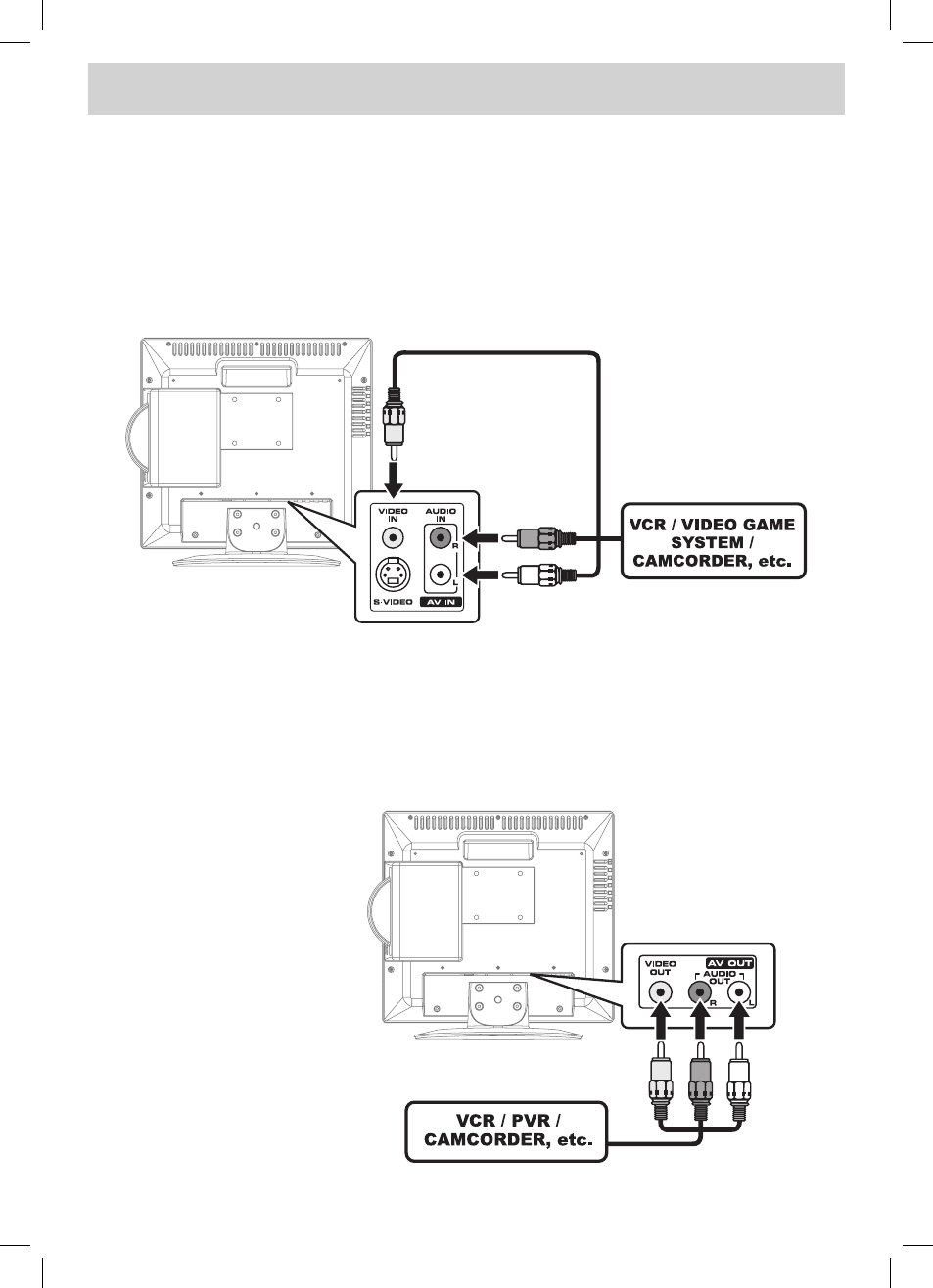

CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE) VIDEO
OUTPUT
To connect A/V devices such as a VCR, video game system or camcorder.
Connecting to a VCR / Video Game System / Camcorder
Connect the AUDIO / VIDEO cable (not included) as shown.
Make sure you connect the cable from the other equipment (AUDIO and VIDEO OUT) to this unit (AUDIO
and VIDEO IN).
NOTE
Please refer to the user manual for the other equipment for more information.
CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE) VIDEO
INPUT
To connect A/V devices such as a VCR, PVR or camcorder.
Connecting to a VCR /
PVR / Camcorder
Connect the AUDIO / VIDEO
cable (not included) as shown.
Make sure you connect the
cable from the other equipment
(AUDIO and VIDEO IN) to this
unit (AUDIO and VIDEO OUT).
NOTE
Please refer to the user manual
for the other equipment for more
information.
To AUDIO
/ VIDEO
OUT jacks
To AUDIO / VIDEO IN jacks
To AUDIO
/ VIDEO IN
jacks (AV IN)
To AUDIO / VIDEO
OUT jacks
