E - 10
CONNECTIONS
CONNECTING A TV ANTENNA / CABLE / SATELLITE
To view television channels correctly, a signal must be received from one of the following sources:
- An indoor or outdoor aerial antenna
- A cable system
- A satellite system
CONNECTING AN A/V DEVICE
To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.

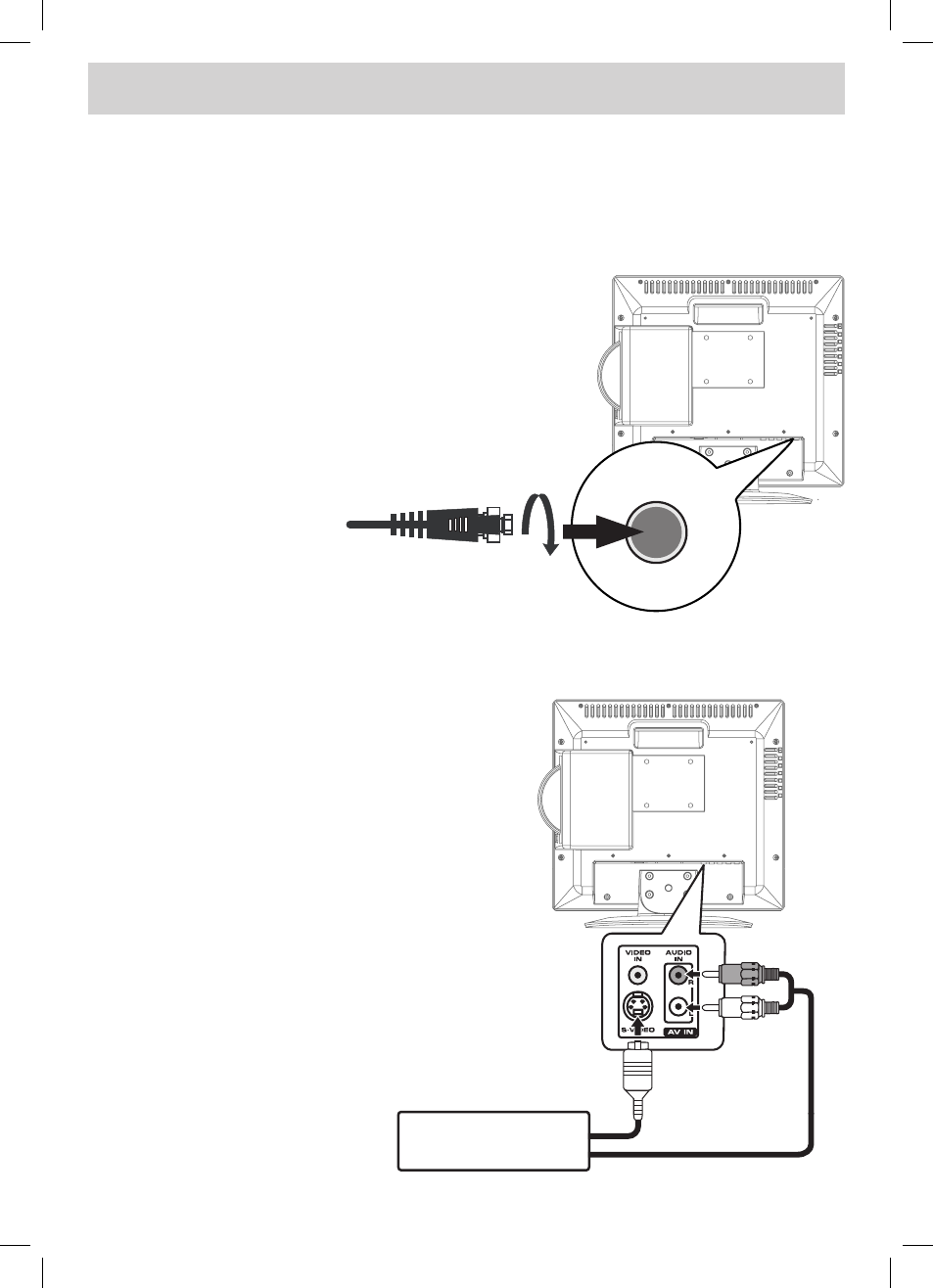

Connecting a Digital
Antenna
The tuner in this TV receives ATSC
TV signals from an antenna.
This digital TV can receive
standard (SDTV) and high
definition (HDTV) over the air
broadcasts.
Connecting an Analog
Antenna or Device
The tuner in this TV receives
NTSC TV signals, analog cable
signals or the RF output from a
satellite receiver, VCR or cable
box.
Satellite, cable or TV
antenna cable to TV
ANTENNA terminal
(cable not included)
Connecting to a VCR /
Camcorder / Satellite
System / Cable
Connect the AUDIO and S-VIDEO
cable (not included) as shown.
Make sure you connect the cable
from the other equipment (AUDIO
OUT
and S-VIDEO OUT) to this
unit (AUDIO IN and S-VIDEO
IN
).
NOTE
Please refer to the user manual
for the other equipment for more
information.
TV ANTENNA
To AUDIO IN jacks
( AV IN)
To S-VIDEO jack
To S-VIDEO OUT / AUDIO OUT jacks
VCR / CAMCORDER /
SATELLITE SYSTEM /
CABLE, etc.
