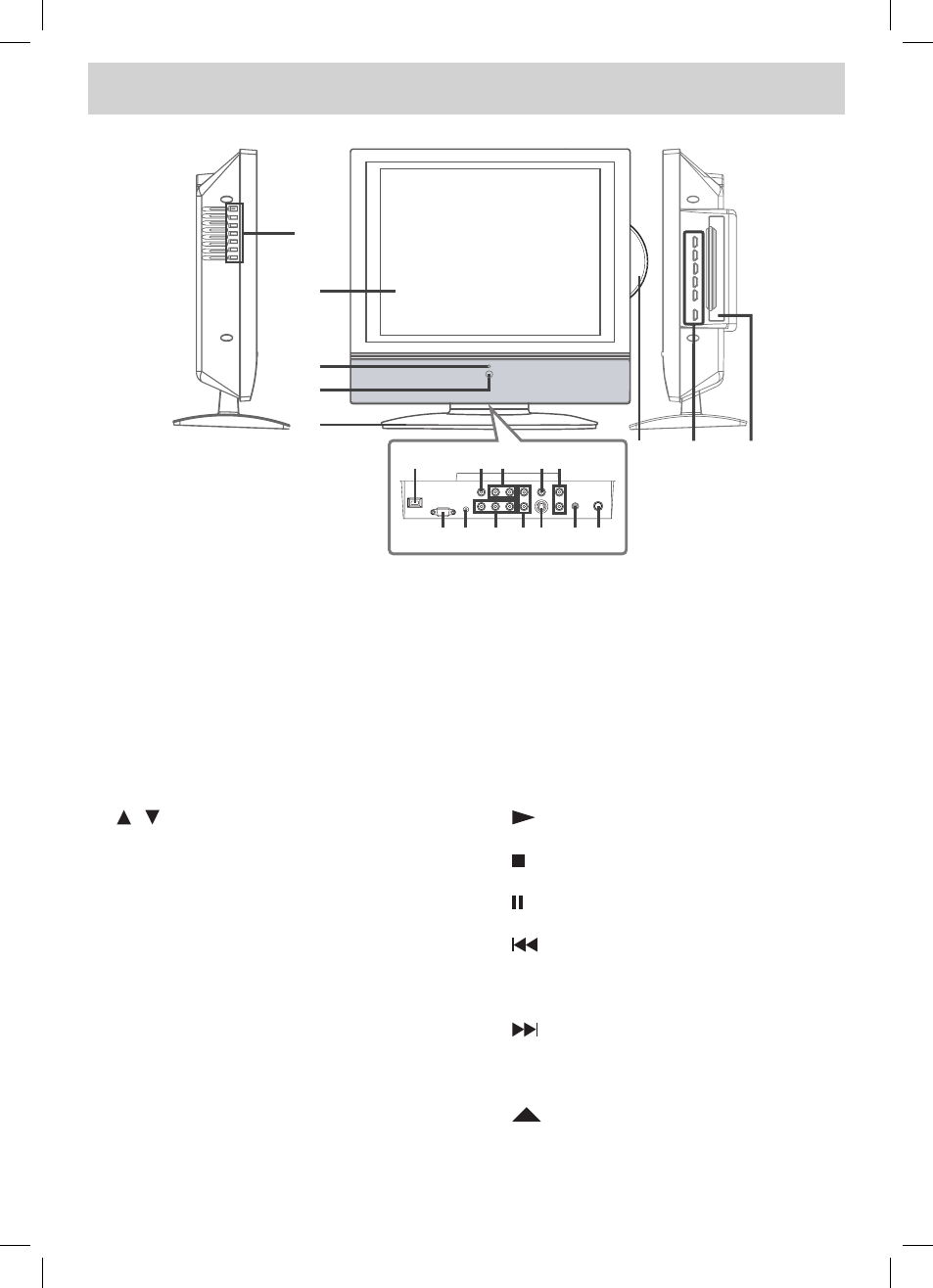

CONTROL REFERENCE GUIDE
1. STANDBY/ON Button
Turns the unit on and off.
MENU Button
Enters and exits the TV menu.
FUNCTION Button
Selects TV / DVD / AV IN / YUV IN / PC IN.
– VOL + Controls
Adjusts the volume level and highlight
selections (Left & Right) on the menu
screen.
/ Buttons
Selects a TV channel and highlight selections
(Up & Down) on the menu screen.
2. Color LCD Screen
3. STANDBY Indicator
Indicates whether the unit is ON or in
STANDBY (OFF) mode.
Light On: The unit is in STANDBY.
Light Off: The unit is turned ON.
4. REMOTE CONTROL SENSOR
Do not block this sensor or remote control will
not work.
5. Removable Base Stand
6. DC IN 12V
7. AV OUT Video Output Jack
8. AV OUT Audio Output Jacks (Left/Right)
9. AV IN Video Input Jack
10. AV IN Audio Input Jacks (Left/Right)
11. PC IN MONITOR/VGA Jack
12. PC IN Audio Jack
13. YUV IN Component Video Input Jacks
(Y/PB/PR)
14. YUV IN Audio Input Jacks (Left/Right)
15. AV IN S-Video Input Jack
16. Headphone Jack
17. TV Antenna Cable Terminal - Coaxial TV
Antenna Input
18. Disc Door
19.
PLAY Button
Press to start or resume playback of a disc.
STOP Button
Stops playing a disc.
PAUSE button
Pause playback and frame advance.
PREV Button
Press PREV button to go back to previous
chapters/tracks.
Press and hold to fast reverse playback.
NEXT Button
Press NEXT button to advance chapters/
tracks.
Press and hold to fast forward playback.
PUSH OPEN Button
Push to open the disc door.
20. Disc Tray
Push to close the disc door.
1
19 20
3
4
6 7 8
11 12
9 10
13 1415 16 17
18
2
5
