SPCIE-C2160 PICMG 1.3 CPU Card

Page 25

3.2.9 I2C Connector

CN Label:

I2C_1

CN Type:

4-pin wafer

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-10

The I2C connector is for system debug.

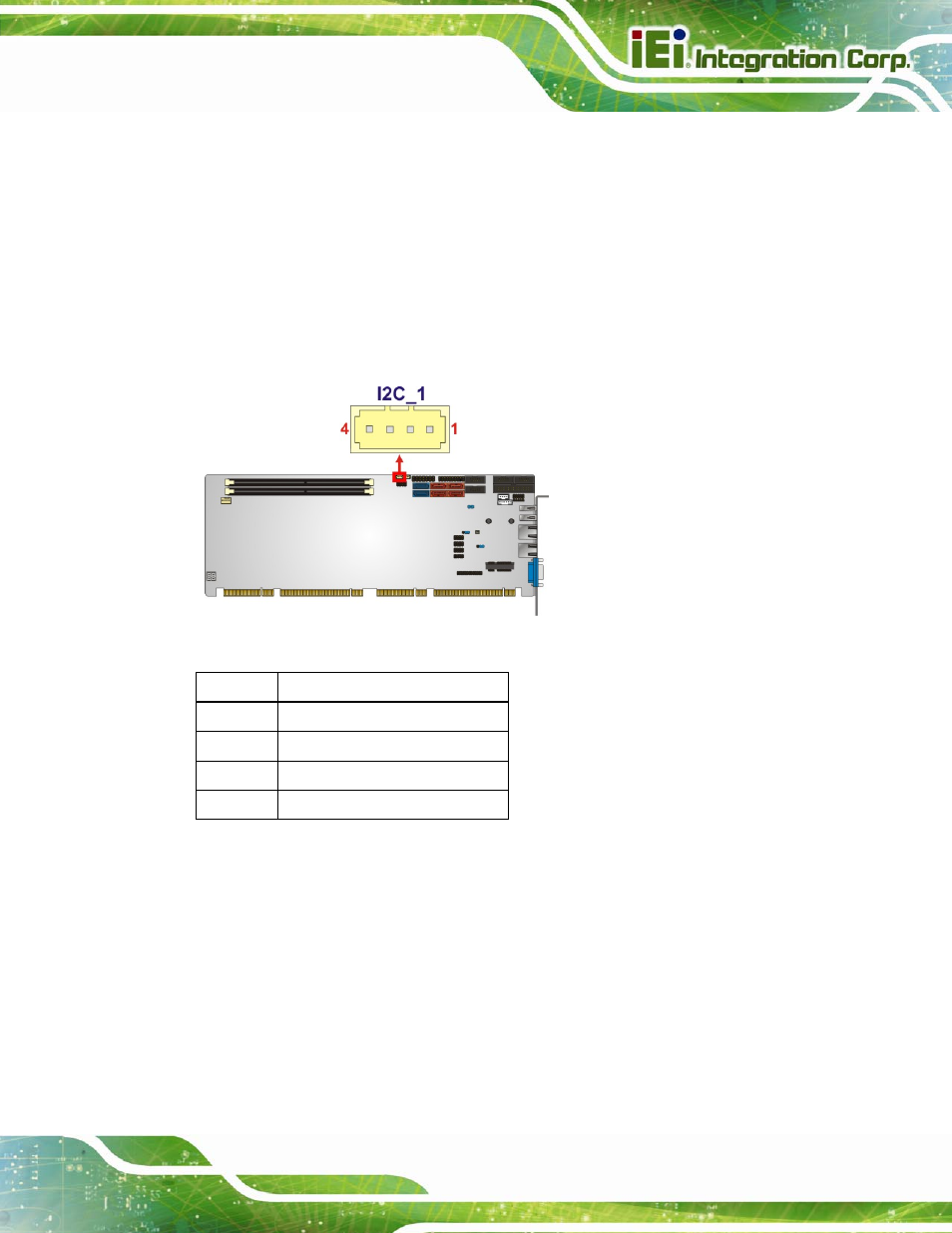

Figure 3-10: I2C Connector Location

Pin Description

1 GND

2 PCH_GP38_PU

3 PCH_GP39_PU

4 +5VS

Table 3-10: I2C Connector Pinouts

3.2.10 Infrared Interface Connector

CN Label:

IR1

CN Type:

5-pin header

CN Location:

See Figure 3-11

CN Pinouts:

See Table 3-11

The infrared connector attaches to an infrared receiver for use with remote controls.
