SPCIE-C2060 PICMG 1.3 CPU Card
Page 61

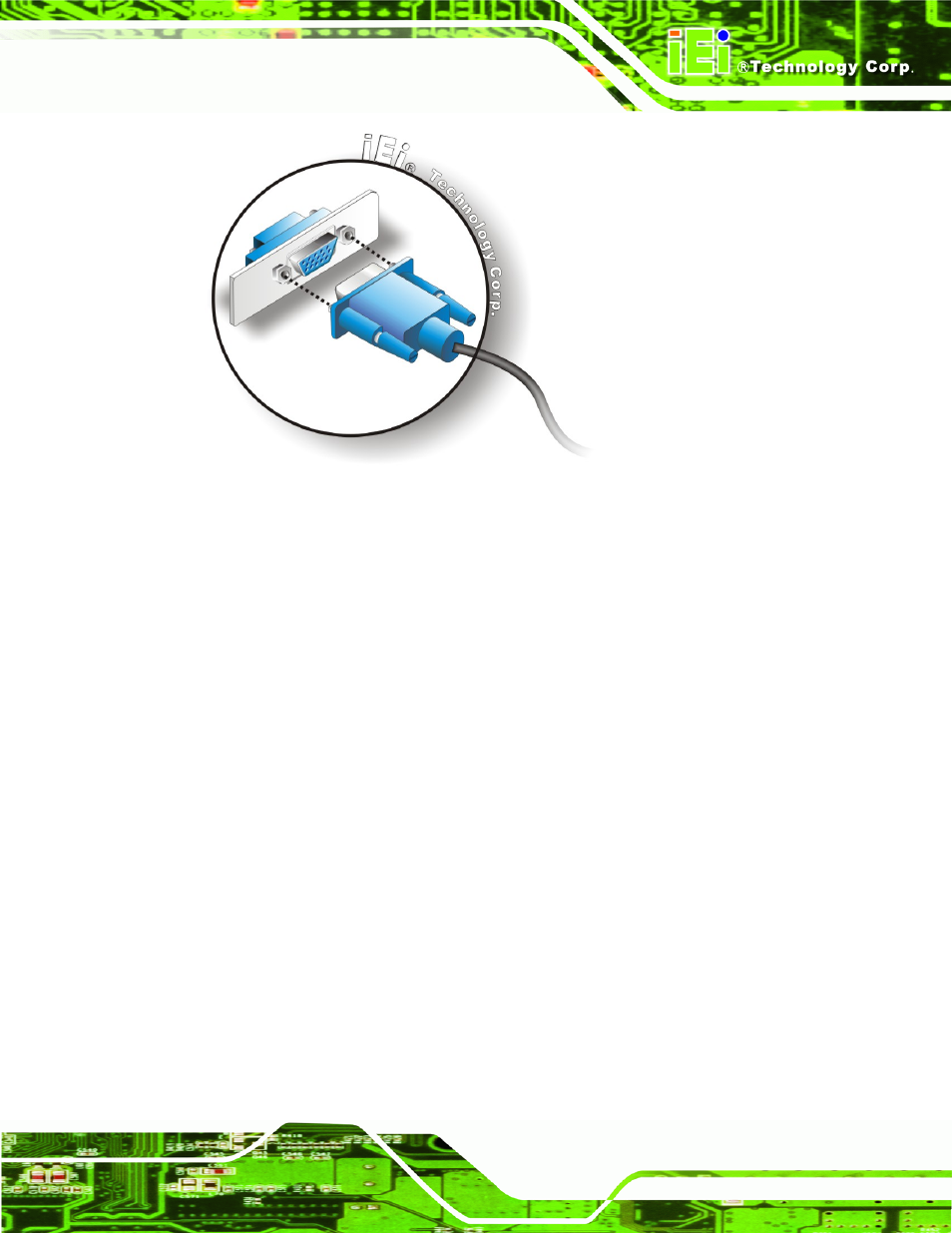

Figure 4-18: VGA Connector
Step 4:
Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector.
Step 0:
4.7 Intel
®
AMT Setup Procedure
The SPCIE-C2060 Series is featured with the Intel® Active Management Technology
(AMT). To enable the Intel® AMT function, follow the steps below.
Step 1:
Make sure the CHA_DIMM1 socket is installed with one DDR3 DIMM.
Step 2:
Connect an Ethernet cable to the RJ-45 connector labeled LAN2.
Step 3:
The AMI BIOS options regarding the Intel® ME or Intel® AMT must be enabled,
Step 4:
Properly install the Intel® Management Engine Components drivers from the
iAMT Driver & Utility directory in the driver CD. See Section 6.7.
Step 5:
Configure the Intel® Management Engine BIOS extension (MEBx). To get into
the Intel® MEBx settings, press
