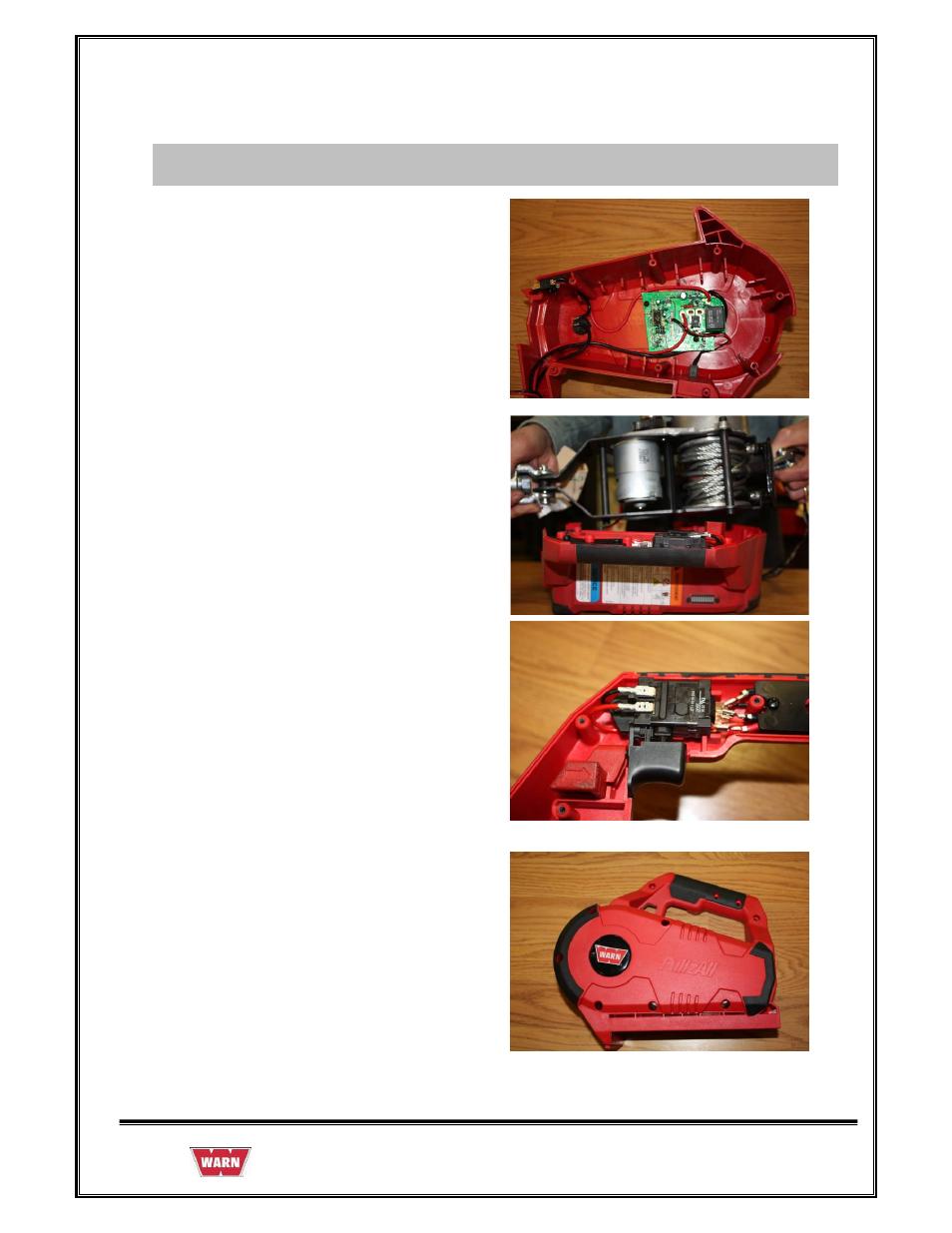

2.3.2 ASSEMBLY OF HOUSING
1. Keep the right hand Housing on the work
bench
2. Install the Chassis assembly into the right
hand Housing as shown, verify the right
hand frame Bracket is fully seated into
the right Housing before installing the
left hand Housing.
3.Install wiring connections of the Motor
assembly from Trigger Switch (red and black
wires) per wiring diagram (Red to M+ or
M1, Black to M- or M2).
4. Install the Plastic Housing left hand
from the assembly as shown in the figure.
