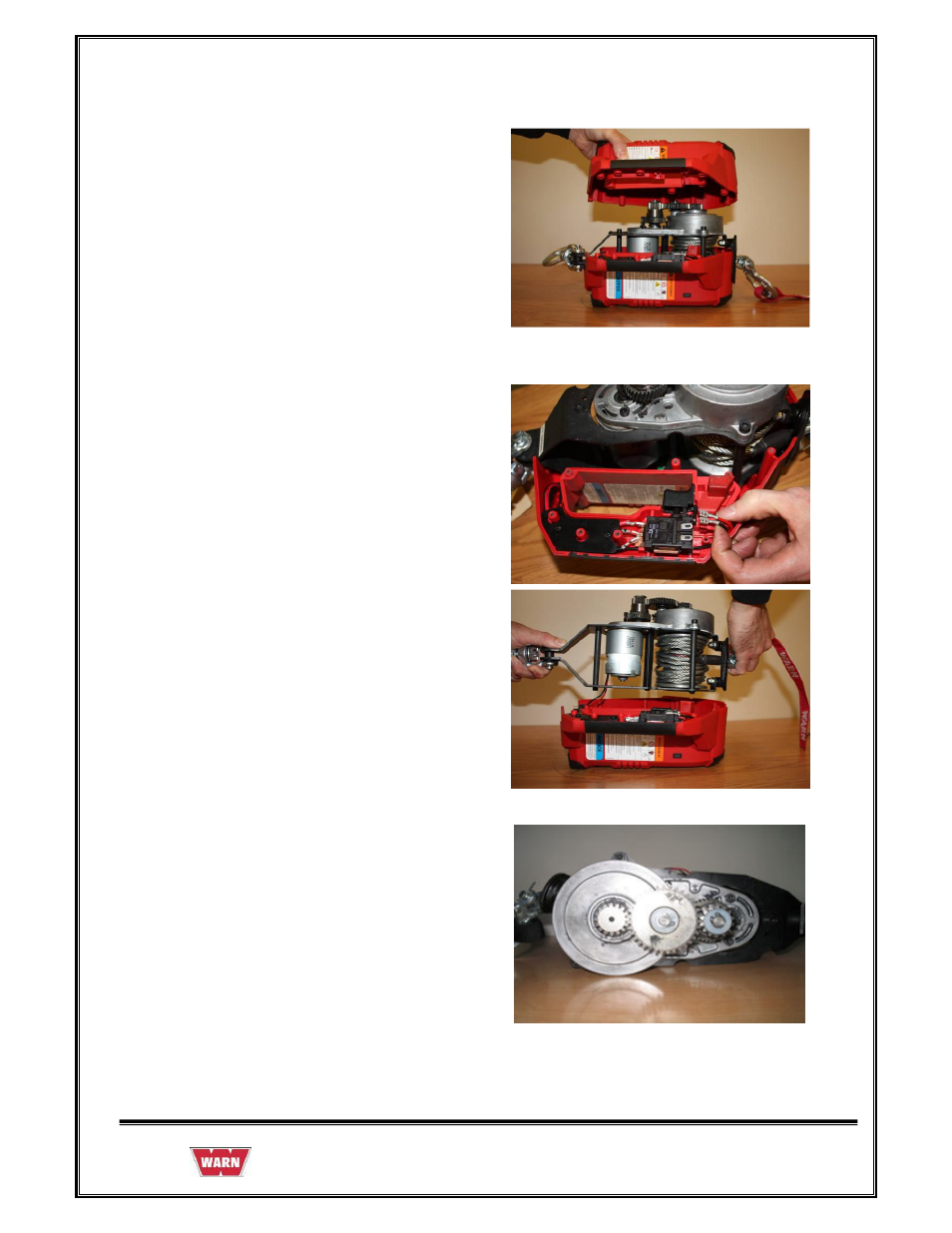

4. Remove the Plastic Housing (left hand)
from the assembly as shown in the figure.
5. Remove wiring connections of the Motor
assembly from Trigger Switch (red and
black wires) as shown in figure.
6. Remove the Main Chassis from the
Plastic Housing.
7. Keep the Main Chassis on the work
bench.
