Indicates the status for 9 devices:
if unconnected, button is gray
if connected, button is green
If connected wrong, button is yellow
If alarm , button is red
3） Multi Channel displaying area
If users added multi channel（refer to 3.4.2）, when shift to 4-Ch, 9-CH, and it will show
other devices automatically. You select one device, and you can operate it by these keys:
play, stop, and record, control Pan/tilt, etc.
These buttons mean play video, stop video, monitor, talk, record and snapshot. You can
click these buttons to start corresponding function.
Notice: If you want to click this button
to record the video, please
go to advanced
—Other Settings to set the Record Path at first. Please see figure 9.

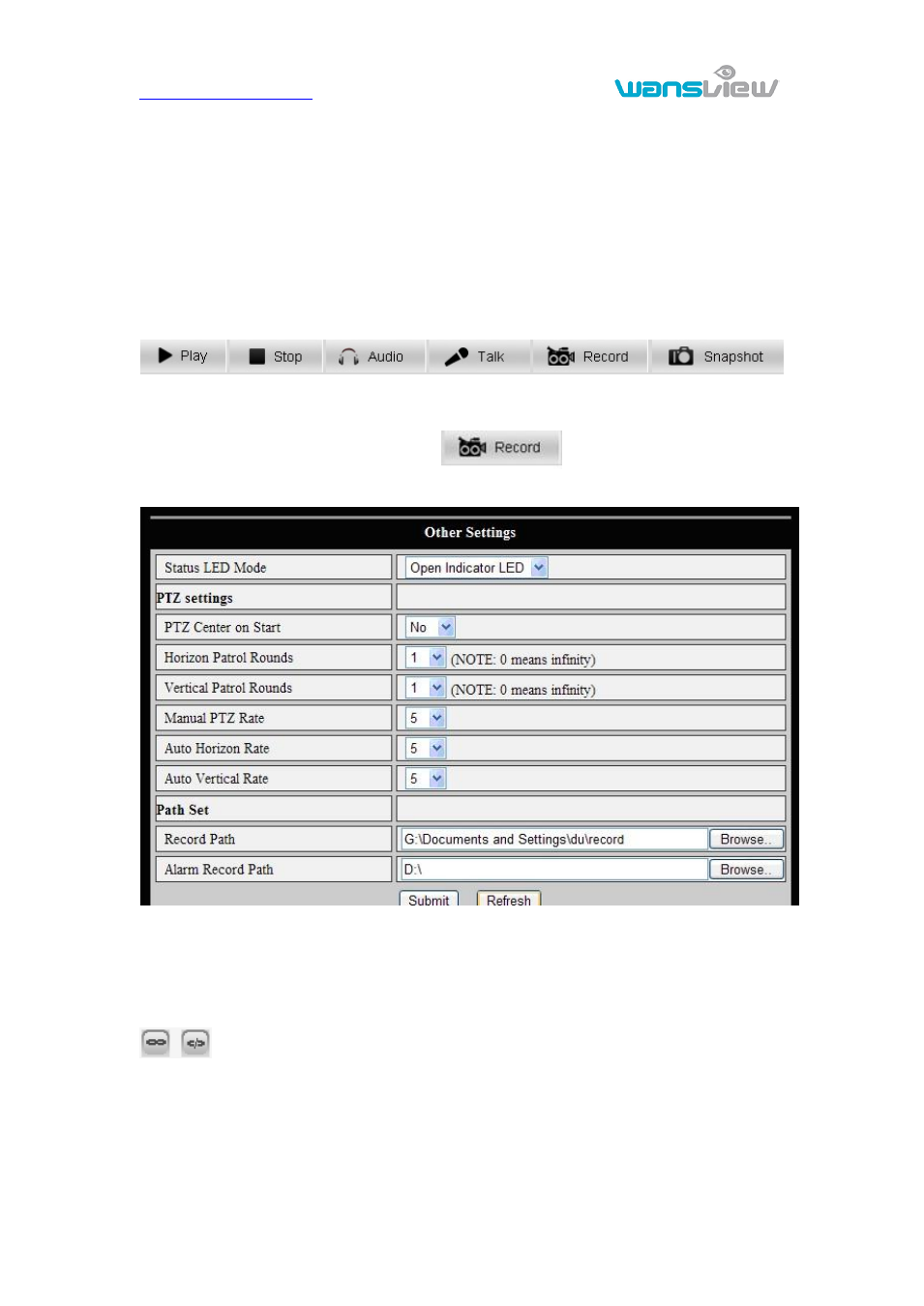

Figure 9 Other settings
4） PT and video control
In Pan/Tilt control area, user can control the position according to the arrow sign: up,
down, left, right, middle, horizontal cruise, vertical cruise, and stop etc.
Means alarm output IO is normally open and normally close mode.
User can also set frame rate, resolution, brightness, contrast and other parameters of the
device.
