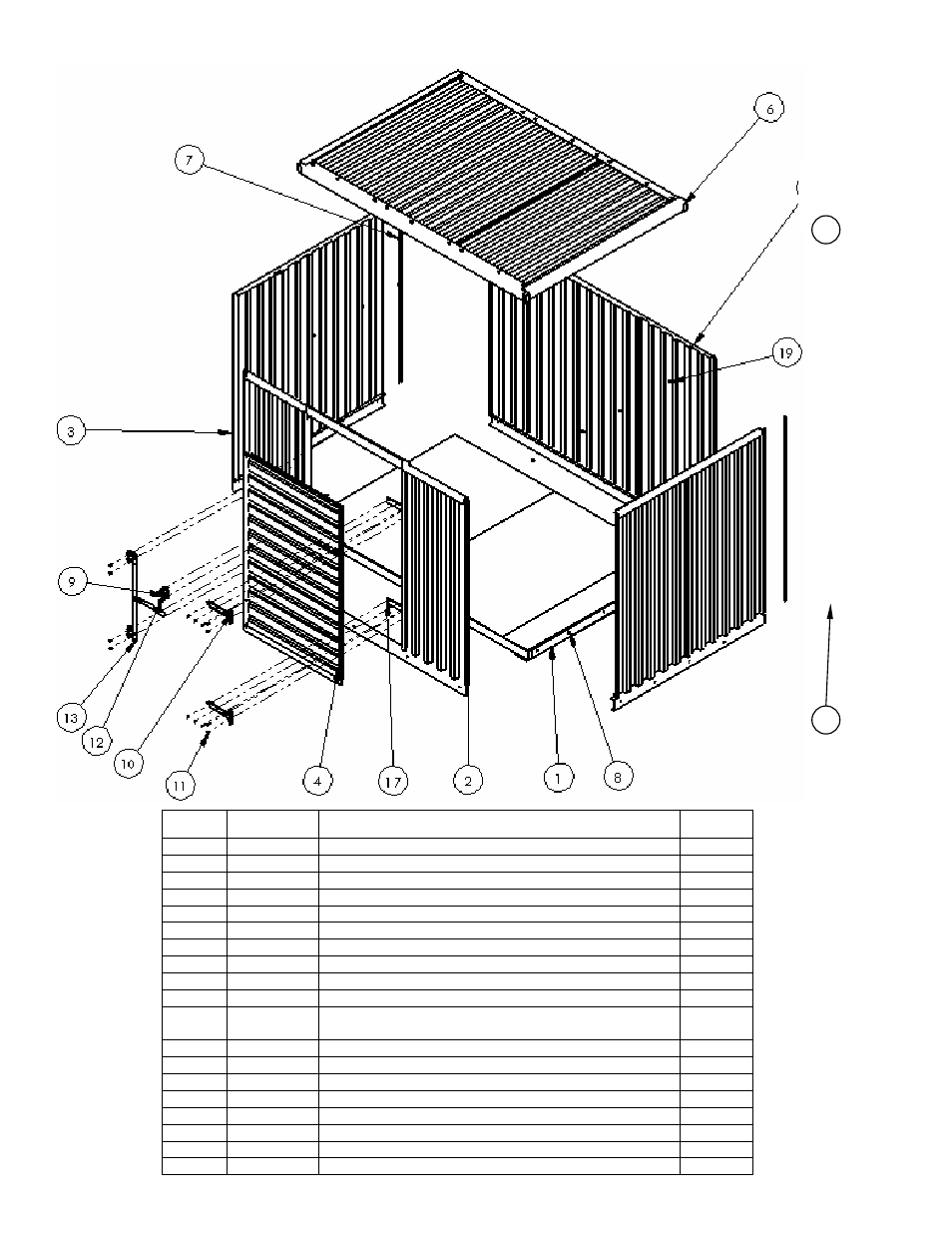

STOR-96-G-W-1RH E XPLODED P ARTS D IAGRAM
5
7
Item No. Part No. Description Quantity
1 41-514-017 Wood base frame assembly 1
2 41-514-012 Door frame assembly 1
3 41-514-013 Side wall frame assembly 2
4 41-514-015 Door assembly 1
5 41-514-014 Rear wall frame assembly 1
6 41-514-016 Roof frame assembly 1
7 41-037-003 Lock strip 4
8 22061 Lag bolt 20
9 41-537-002 Latch lock support assembly 1
10 41-512-001 Hinge 2
11 RHSSN
Bolt
¼ in. - 20 UNC x 1in. zinc-plated carriage bolt 16
12 33006
5
/
16
in. zinc-plated USS flat washer 6
13 41-537-001 Lock/latch bar assembly 1
14 33004 ¼ in. type A narrow flat washer 2
15 36102 ¼ in. – 20 zinc-plated hex nut 12
16 33618 ¼ in. lock washer 10
17 41-016-002 Door bracket 2
18 41-016-001 Hinge mount door bracket 2
19 31806 Self-tapping screw 8
