Electrical connection

·

The electrical safety ot this appliance is guaranteed
only if the appliance is correctly earthed in
compliance with the standards of electrical safety.
The manufacturer can under no circumstances be
considered responsible for any damage that might occur
due to incorrect earthing of the appliance.

·

Important points

Your hob unit is supplied with a special Scholtès
connection cable.
If ever the cable is damaged, it should be replaced by an
authorised service engineer only.
Disconnect the appliance before any work is carried
out.

·

Fasten the appropriate standard plug for the load
indicated the rating plate to the chord. If the appliance
must be directly connected to the mains, a multipolar
switch must be installed between the appliance and the
mains. The multipolar switch must have a minimum of
3 mm of space between the contacts, be sized to the
load, and comply with current regulations (the switch
must not be able to disconnect the earth conductor).
The supply cord must be positioned so that no part of it
reaches a temperature of 50 °C higher than room tem-
perature. Before making the connection, make sure that:

the limiter valve and the residential wiring can support
the appliance load (see rating plate);

the mains system is properly earthed in compliance
with current regulations and provisions;

there is easy access to the socket or the multipolar
switch after the appliance is installed.

Technical specifications

This appliance conforms with the following European
Economic Community directives:
-

73/23/EEC of 19/02/73 (Low Voltage) and subsequent
modifications;

-

89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;

-

93/68/EEC of 22/07/93 and subsequent modifications

Attention: If the cooktop is installed above a built-in oven,
the electrical connection for the cooktop must be
independent of that for the oven, both for safety reasons
and to facilitate the removal of the oven for maintenance,
repair, etc.

Detail of wiring

- Connect the 5 wires to your machine respecting the
colour of the wires and their connections.

N:Black, BR:Brown, BL:Blue

* Application of the simultaneity coefficient in compliance
with standard EN 335-2-6

Y-type connection in compliance with standard EN 335-2-6.

Maximum Electrical Input:
KT 6004 Q

6200W

KT 6001 H

6400W

KT 6104 QD

6200W

KT 7104 QO

7400W

BL

BR

NOIR

N

L

BL

BR

N 1

L1

NOIR

L2

N 2

BL

BR

NOIR

N

L

BL

BR

NOIR

L2

L1

BL

BR

NOIR

L1 L2 N

BL

BR

NOIR

L1 L2 L3

Electrical connection

Power suply - Voltage

Fuses - Section

AT-FR-BE-DE-GP-ES-IE-IL-IS-IT-

LU-RE-FI-GR-PT-SE-MA-NZ

GB-DK-NL

230 V - 1 + N ~ 50 Hz

Fuse 20 A*

(KT 7104 QO - Fuse 25 A *)

FR - BE - NO

230 V - 2 ~ 50 Hz

Fuse 20 A*

(KT 7104 QO - Fuse 25 A *)

AT-FR-BE-CH-DE-ES-IL-IS-IT-LU

PT-SE-MA-NZ-DK-NL

400 V - 2 + N ~ 50 Hz

Fuse 16 A*

(KT 7104 QO - Fuse 20 A *)

FR - BE -NO

230 V - 3 ~ 50 Hz

Fuse 20 A*

(KT 7104 QO - Fuse 20 A *)

NL

230 V - 2 +2N ~ 50 Hz

Fuse 16 A*

(KT 7104 QO - Fuse 20 A *)

CY-MT-AU-KW

240 V - 1 + N ~ 50 Hz

Fuse 20 A*

(KT 7104 QO - Fuse 25 A *)

Black

Black

Green / Yellow

Blue

Brown

N

L1

Neutral

Live 1

Earth

L2

Live 2

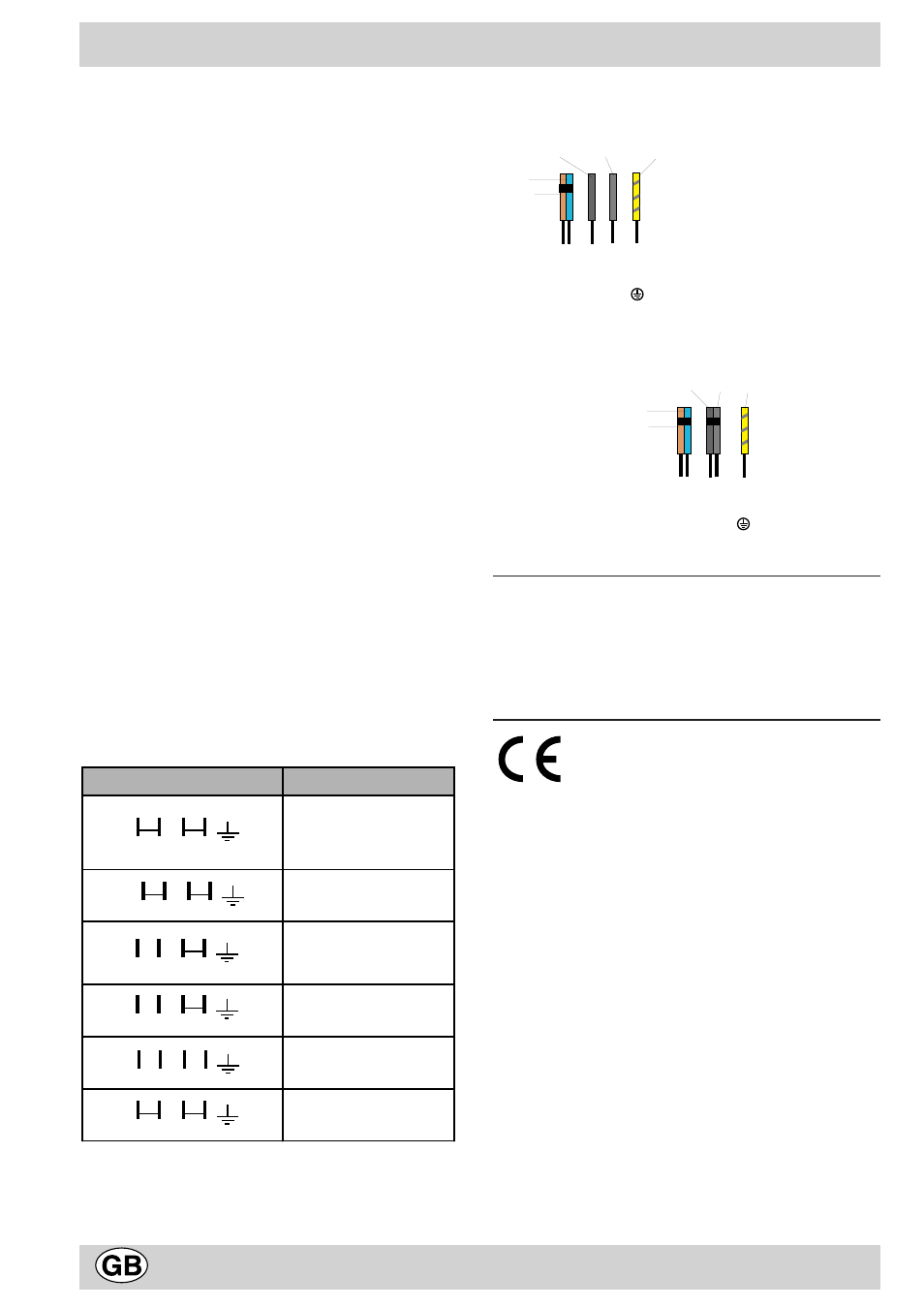

Two-phase wiring

Black

Black

Green / Yellow

Blue

Brown

N

L

Neutral

Live

Earth

Single-phase wiring

Connect the two
black live wires
L1 and L2
