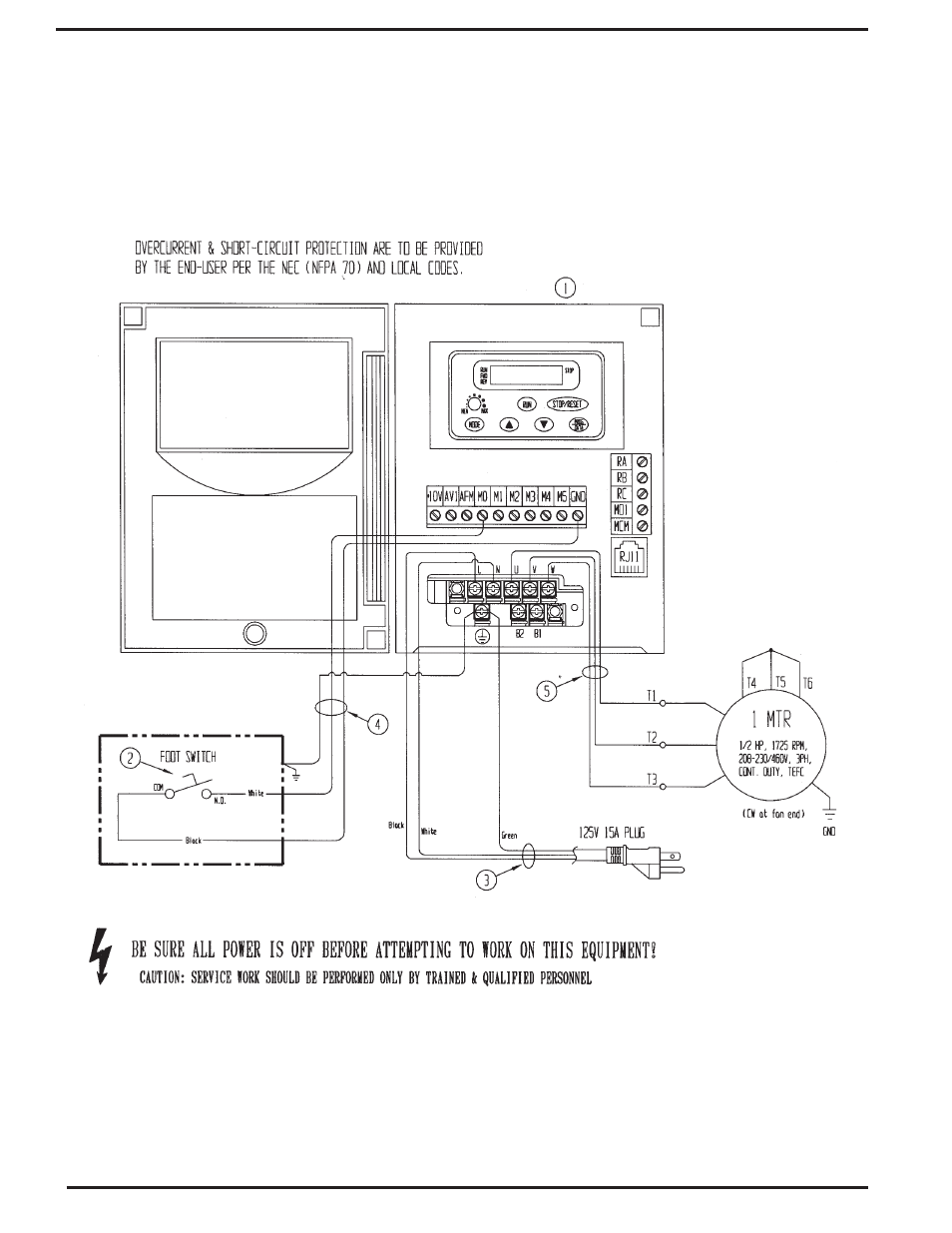

Electrical Diagrams -- SWA-48, POW-CAR
***
Warning: Care should be taken to identify all potential hazards and comply with applicable safety procedures before beginning
work. Ensure that power have been removed before attempting to work on the electrical system.
*** Only qualified individuals trained to understand mechanical devices and their associated electrical and hydraulic circuits should
attempt troubleshooting and repair of this equipment.
