PANEL RACK CART • MODEL PRCT

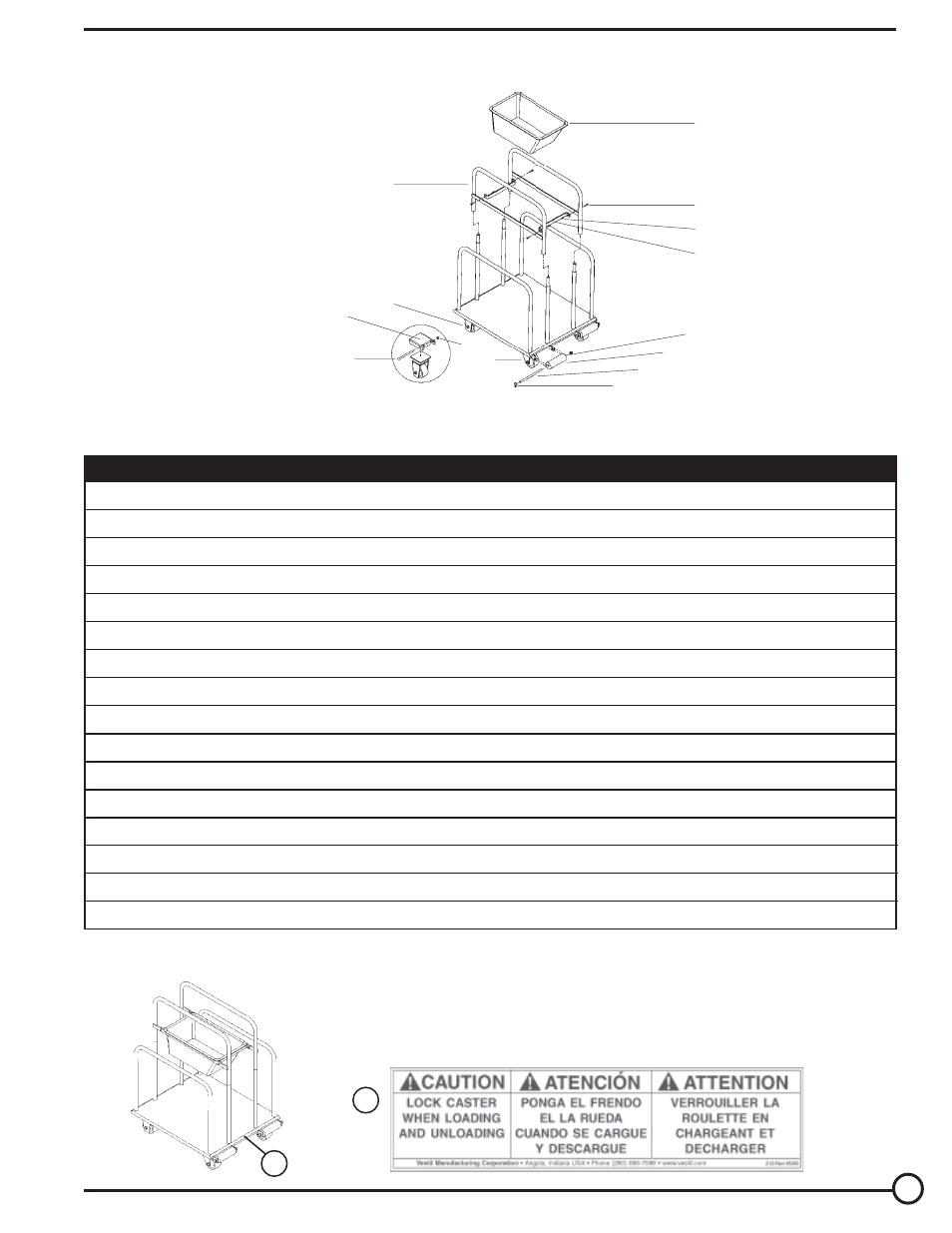

Assembly & Parts Drawing
PARTS IDENTIFICATION
PANEL RACK CART • MODEL PRCT
1
2
3
4
5
6
7 8
9
10
12
11
10
CASTER PAD
BRACKET
WARNING LABEL IDENTIFICATION
MAKE SURE ALL WARNING LABELS ARE IN PLACE!
* Product safety signs or labels should be periodically inspected and cleaned by the
product users as necessary to maintain good legibility for safe viewing distance.
ANSI 535.4 (10.21) Contact manufacturer for replacement labels.
1
1
a/k Available only with purchase of kit
ITEM NO.
1
2
3
4
5
6
7
8
9
10
11
12
A
B
C
D
DESCRIPTION
Basket
Basket bar
Bolt, 5/16"-18 UNC x 1"
Nylock nut, 5/16"-18 UNC
Middle frame
Wheel, (rigid caster)
Wheel, (swivel caster w/ brake)
Clevis, 3/8" x 5"
Cotter Pin, 3/8"
End cap
Roller pin
Roller
Bolt Kit (includes 3, 4, 8, 9)
Basket Kit (includes 1,2,3,4)
Wheel Kit (includes 6,7,8,9)
End Roller Kit (includes 10,11,12)
ENGINEER NO.
16-048-001
16-016-052
a/k
a/k
16-514-006
16-132-016
16-132-015
99-112-006
a/k
16-130-001
16-112-002
16-027-001
16-154-004
16-154-005
16-154-006
16-154-007
QTY.
1
2
4
4
2
2
2
4
4
4
2
2
1
1
1
1
KIT NO.
B
B
A,B
A,B
C
C
A,C
A,C
D
D
D
PART NO.
PC-BSK
PC-BBSKTBR
a/k
a/k
PC-MIDFM
PC-CASR
PC-CASBK
n/a
a/k
PC-ECAP
PC-RPIN
PC-RLLR
PC-KIT-A
PC-KIT-B
PC-KIT-C
PC-KIT-D
