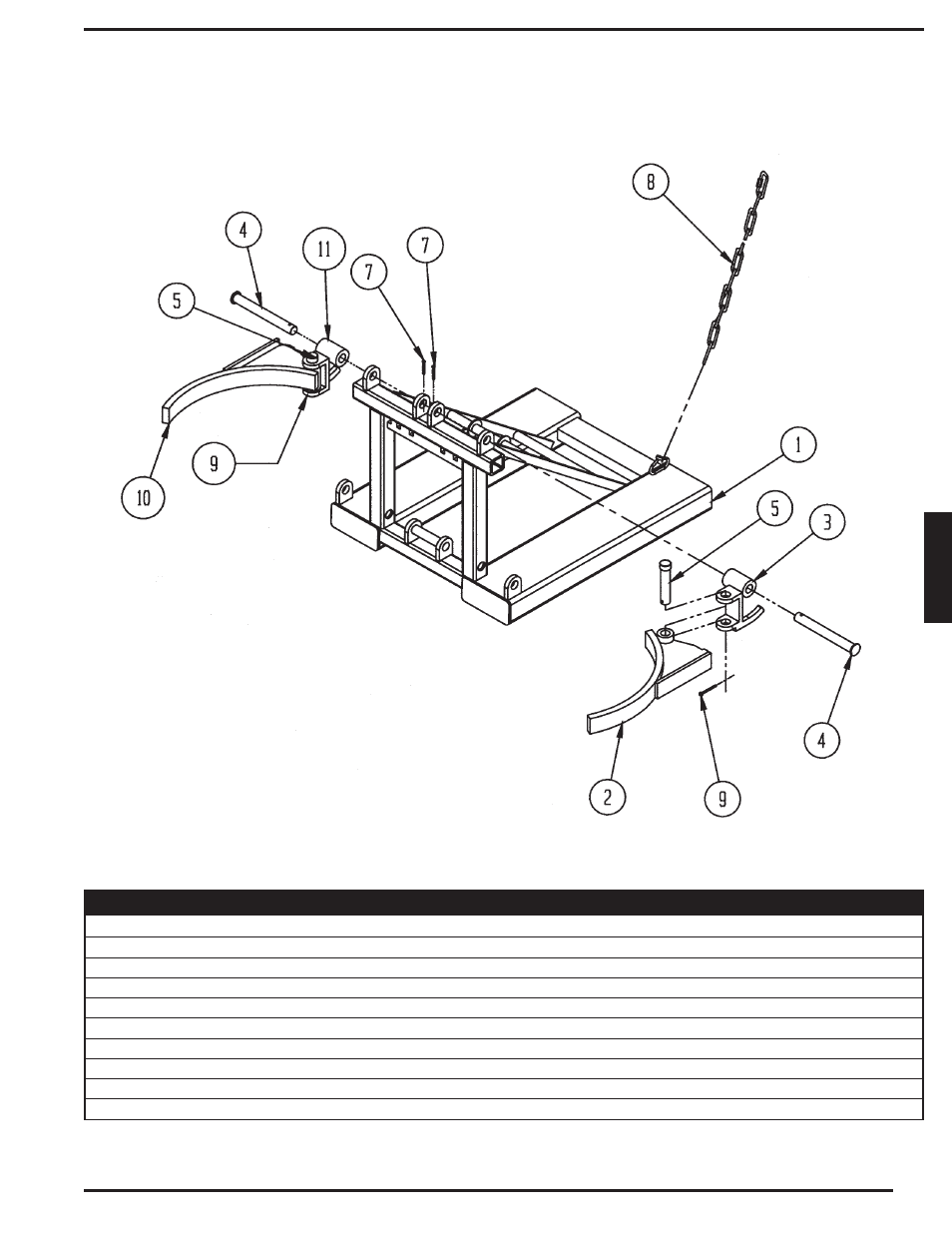

FORK MOUNTED TOP POLY DRUM LIFTER
MODEL FPDL-11-H
E
N
G
L
I
S
H
DESCRIPTION
Frame, Weldment, Eagle-Beak Base
Frame, Weldment, Arm, Left Side, Lower Drum Grip
Hinge, Weldment, Left Side
Pin, Main Clevis 1 id x 8-5/8 lg.
Pin, 1 3/16 od x 1 id x 4-1/2 lg.
Pin, Cotter, 3/16 x 1-1/2 lg.
Specialty Hardware, Chain, 5/16 x 48 lg.
Pin, Cotter, 3/16 x 1-1/2 lg.
Frame, Weldment, Arm, Right Side, Upper Drum Grip
Hinge, Weldment, Right Side
ITEM NO.
1
2
3
4
5
7
8
9
10
11
ENGINEER NO.
40-514-008
40-514-016
40-512-002
40-112-001
15-112-014
n/a
37-145-004
n/a
40-514-017
40-512-001
