rev. 12/18/2012 ABLT-H, Manual
Proper use, maintenance, and storage are essential for this product to function properly.
o Always use this product in accordance with the instructions in this manual and consistent with any training relevant
to scissor lift tables.
o Keep the lift table clean & dry.
Product Specifications by Model:
Model
Capacity in
pounds (kg)
Lowered height
in Inches (cm)
Raised height
in Inches (cm)
Net Weight in
Pounds (kg)
ABLT-H-1-32
1,000
(~455kg)
7in.
(~17.8cm)
32in.
(~81.3cm)
270 pounds
(~122.7kg)
ABLT-H-2-32
2,000
(~909kg)
7in.
(~17.8cm)
32in.
(~81.3cm)
280 pounds
(~127.3kg)
ABLT-H-3-32
3,000
(~1,364kg)
7in.
(~17.8cm)
32in.
(~81.3cm)
290 pounds
(~131.8kg)
ABLT-H-4-32
4,000
(`1,818kg)
7in.
(~17.8cm)
32in.
(~81.3cm)
360 pounds
(~163.6kg)

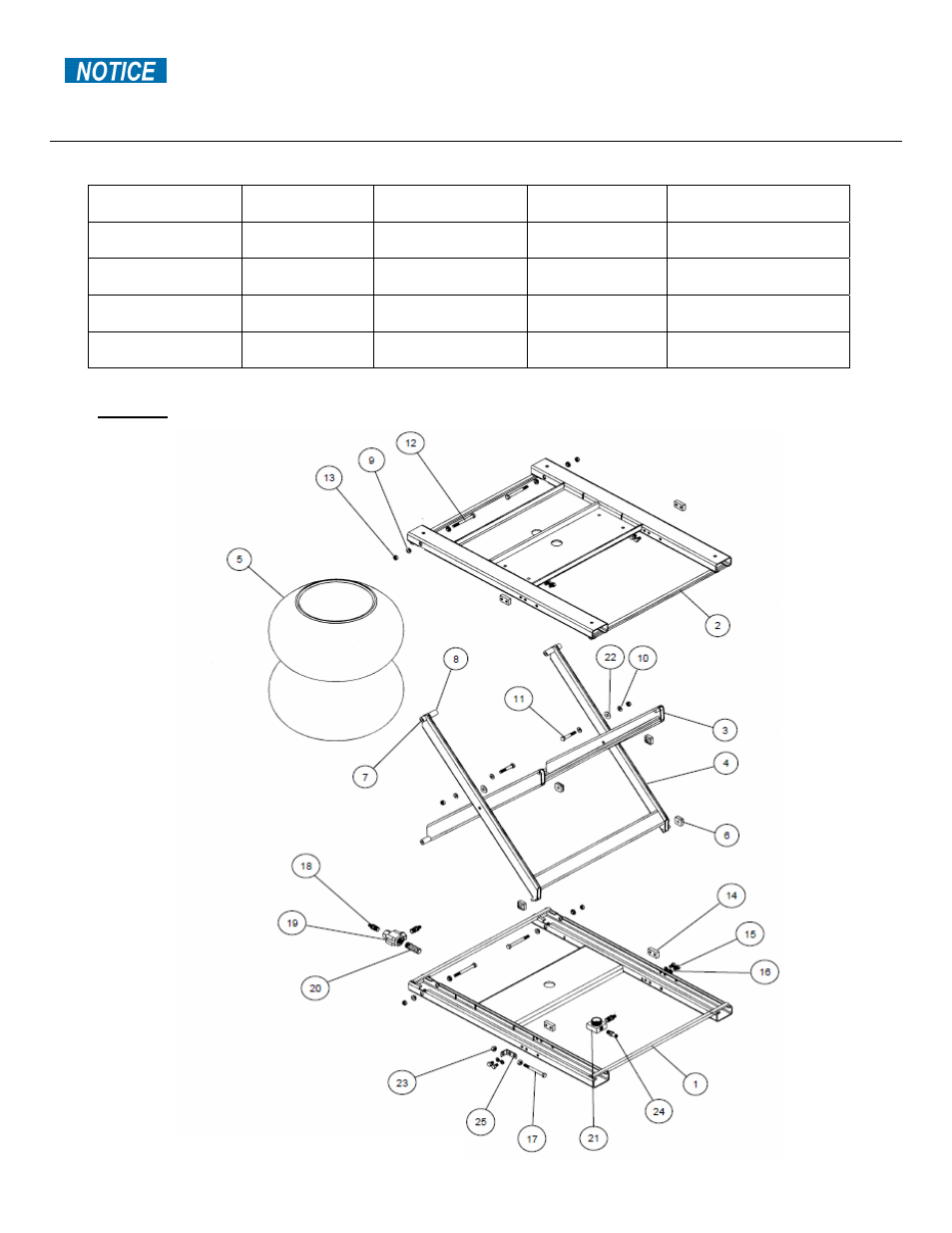

FIG. 1: ABLT-H series exploded parts diagram
NOTE: Hoses and labels not shown for clarity.
