3xtend/EINC L/24 Installation Instructions TG200811 Issue 3 3/9/08
3xtend/EINC L/24
Installation Instructions
1.3

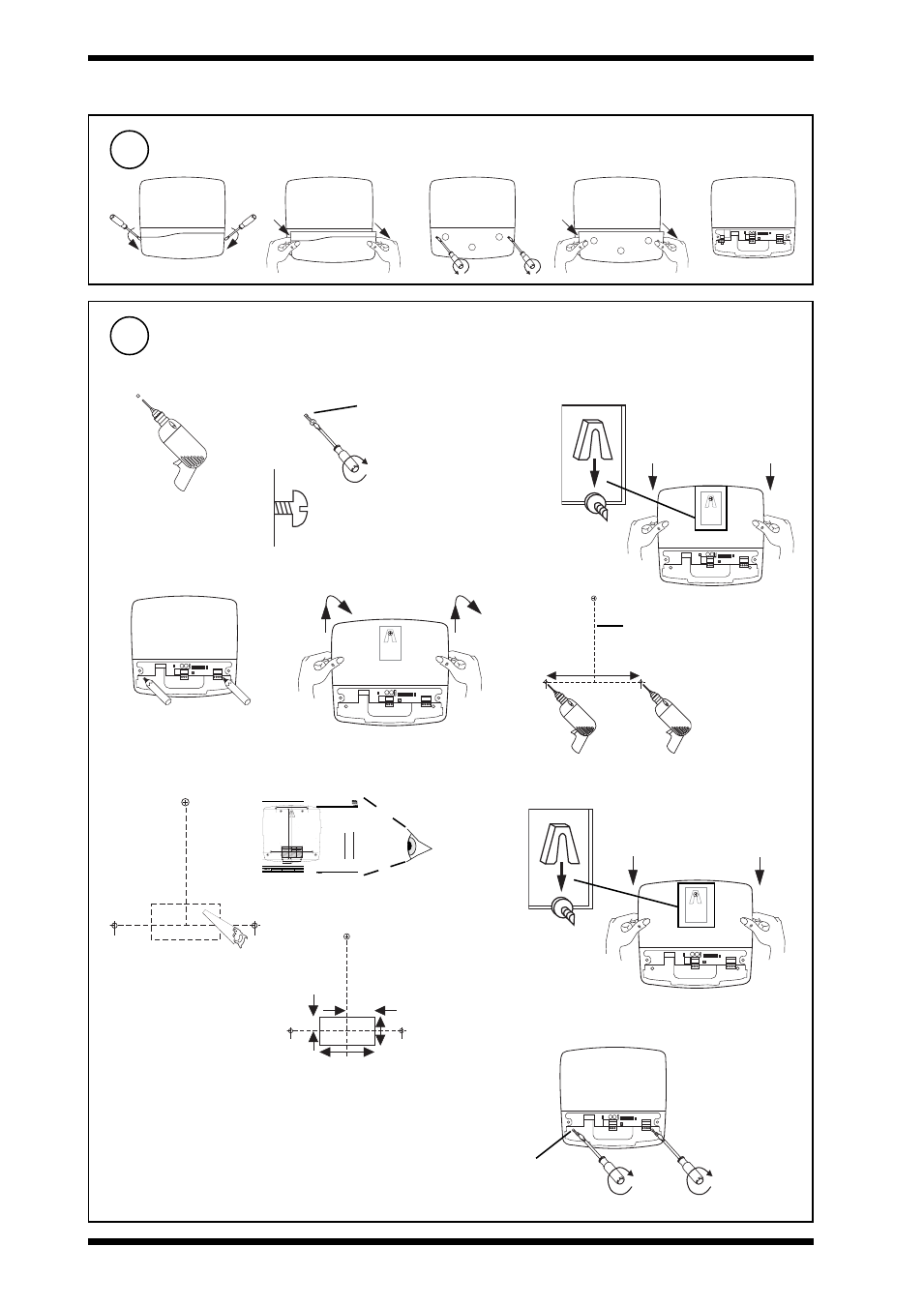

INSTALLATION - FIXING
(Continued)
Remove Covers
3
1 2 3 4 5 6 7 8 9 10
a
b
c
d
e
1 2 3 4 5 6 7 8 9 10
Mount Unit
4
Either via 3 screw fixing (e.g. for fixing on wall)
a
b
c
M4, 5, or 6 (pan or CSK)
or No 10 or 12 (CSK)
d
e
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
f
170 mm (6.69”)
Rear
view
Length depends on screw
head projection and screw
type
i
1 2 3 4 5 6 7 8 9 10
2 x M4, 5, or 6
(No 10 or 12)
g
Cut rear cable entry hole if required
h
1 2 3 4 5 6 7 8 9 10
Rear
view
80 mm
(3.15”)
40 mm
(1.57”)
40 mm
(1.57”)
20 mm
(0.78”)
1
