RD-IQL Installation Instructions TG200576 Issue 1/G 16/01/07 3
Installation Instructions RD-IQL
Note that a PIN may be required to make
changes. If the PIN has been forgotten the
users should contact their supplier (installers
contact Trend Technical Support) quoting the
generator number and neuron id (both from Address
module) whereupon a default PIN will be supplied.
This will only work for three attempts at entering the
PIN. After the default PIN is entered a new PIN
should be set up and remembered.
LINC
IQ
IQL
Lon
SET v5.1
IQLTool2
See IQLTool2
See PowerTool Manual
TE200163

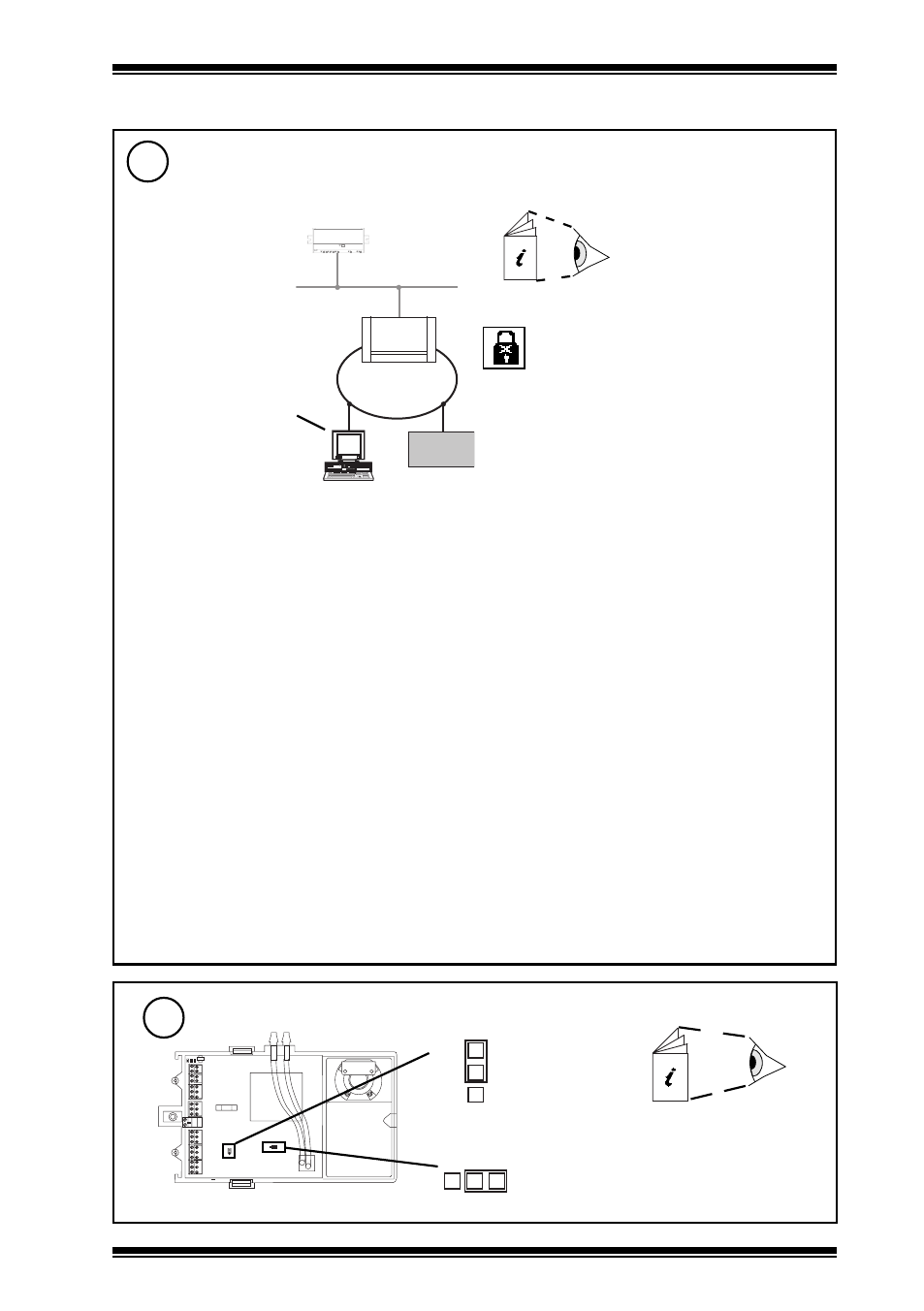

Configure IQLVAV/IQL+ for use with RD 6
See Wupdn Manual
TE200162
Connect Trend Tool for Text Communications a
Configure parameters b
The following parameters must be set up (their configuration is facilitated by IQLTool2
‘Configure for RD-IQL’ feature):
Local Space Temp Type S9(Y=6) (use RD) - IQL11+, 13+, 15+, IQLVAV
Local SP Adjust Type S10(Y=6) (use RD) - IQL11+, 13+, 15+, IQLVAV
Local Fan Speed Type S11(Y=6) (use RD) - IQL13+, 15+
These settings are facilitated by IQLTool2.
If it is required to use a separate temperature sensor, leave Local Space Temp Type at default,
S9(Y=1).
If it is required to use a separate fan speed switch, leave Local Fan Speed Type at default, S11(Y=3).
The following parameters should be set up if they have been changed from default:
Note that these parameters are in the standard strategies; equivalent parameters may have to be
changed in non-standard strategies
Window Mode W5(S=O) (not window mode, default) - IQL11+
PIR Pb Select W6(S=O) (Pushbutton selected, default) - IQL11+, 13+, 15+
Remote Fan Spd K7(V=4) (auto, default) - IQL13+, 15+
The following command must be given:
R(z=1) :This writes changes to permanent flash memory, and causes the IQL/IQLVAV to start using
the new settings
INSTALLATION (continued)
Configure IQLVAV link (IQLVAV only) 7
IQLVAV Installation
Instructions
e.g. IQLVAV/xxx ../VAV
TG200704
J5 RD
I
5
J6
A S
Set link J5
Check link J6
