QPHY-DDR4 Software Option

DUT Name

When running in Demo mode QPHY will prompt a warning if the DUT name is not “Demo”. The DUT
name entered should match the name of the folder containing the saved waveforms.

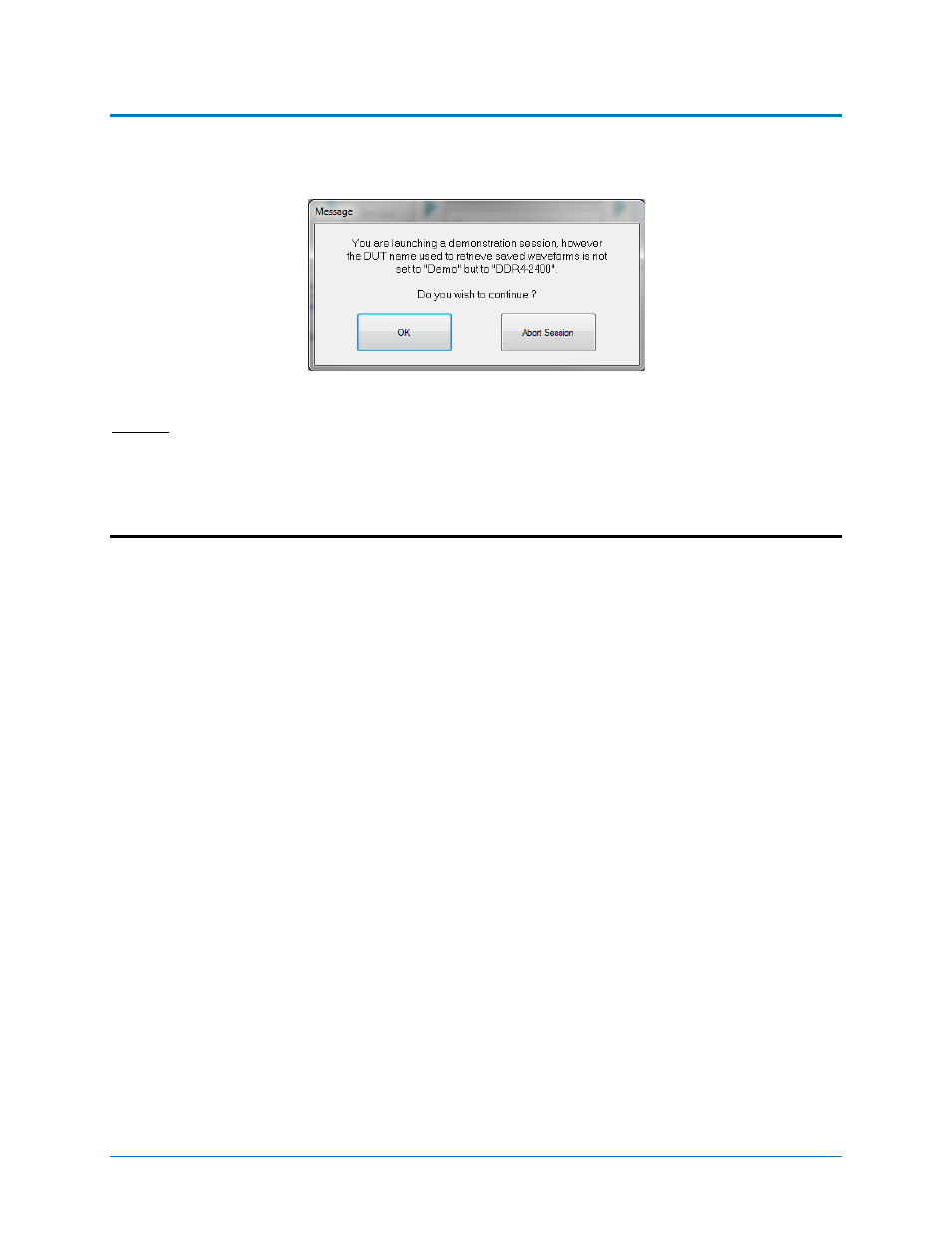

Figure 68 – DUT Name Warning

Solution

Ensure that the DUT name matches the folder which you have the saved waveforms in. If it does press
“OK”.

Thank you for reading the QPHY-DDR4 Operator’s Manual. If you have any further questions please
contact your local Teledyne LeCroy representative for assistance.

924291 Rev A
