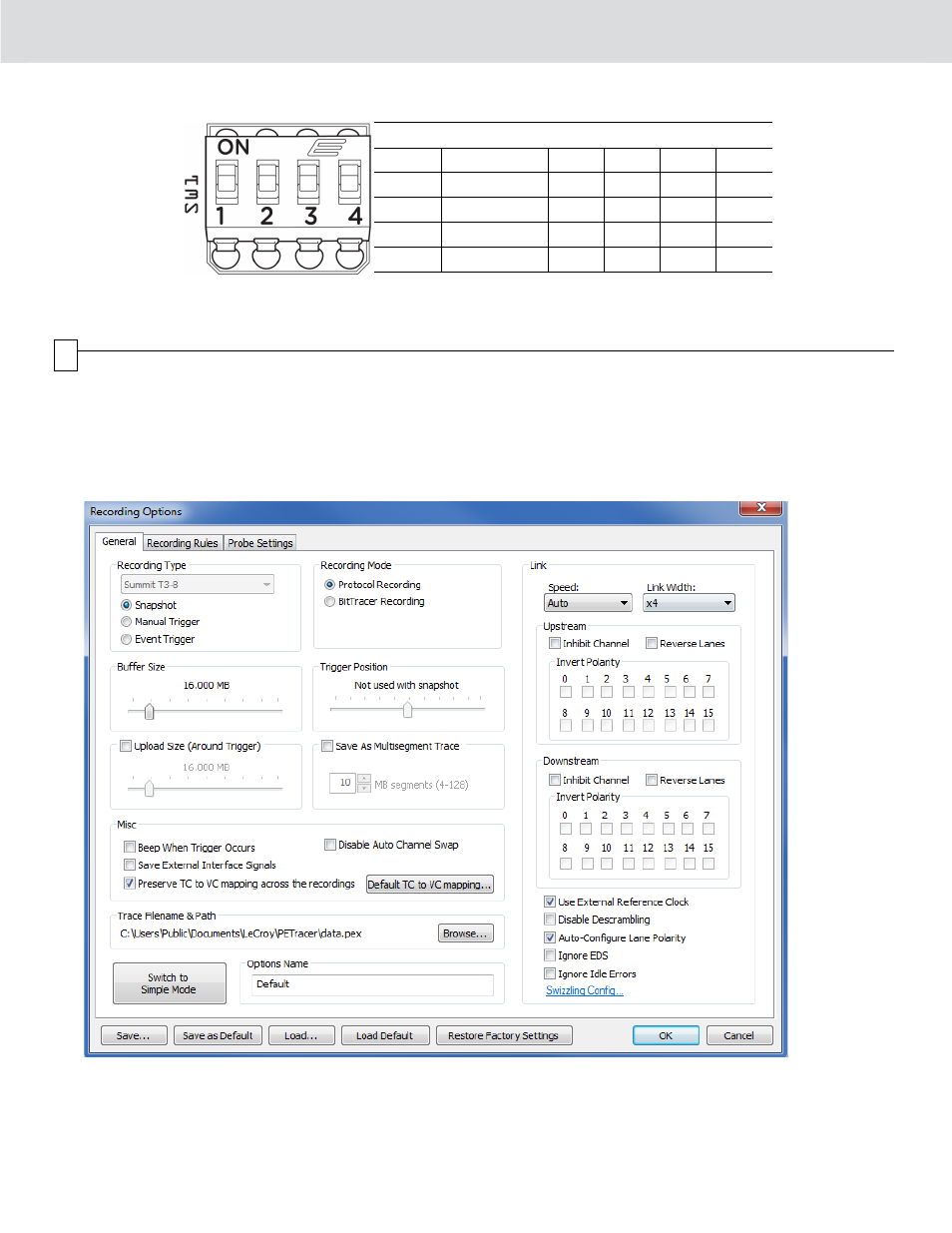

Software Configuration
The default configuration of the Gen3 M.2 Interposer is the (x4 width) configuration.
To set Recording Options:
1. Open the PETracer application on the host machine.
2. Open the Recording Options dialog.
3. In the Recording Type section (top left) your connected analyzer must be displayed.
4. In the Link section (on the right), select the appropriate link width.
SW1: Clock Select
CABLE B 1 2 3 4
B HOST_CLK ON ON N/A N/A
B DS_CLK ON OFF N/A N/A
A US_CLK N/A N/A OFF ON
A HOST_CLK N/A N/A ON ON
Note: Factory default is host clock SW1.1 = ON, SW1.2 = ON, SW1.3 = ON, SW1.4 = ON
Clock Source Configuration
