This procedure describes the assembly process for the Type 2260 bracket (to install the other types
follow the same procedure):

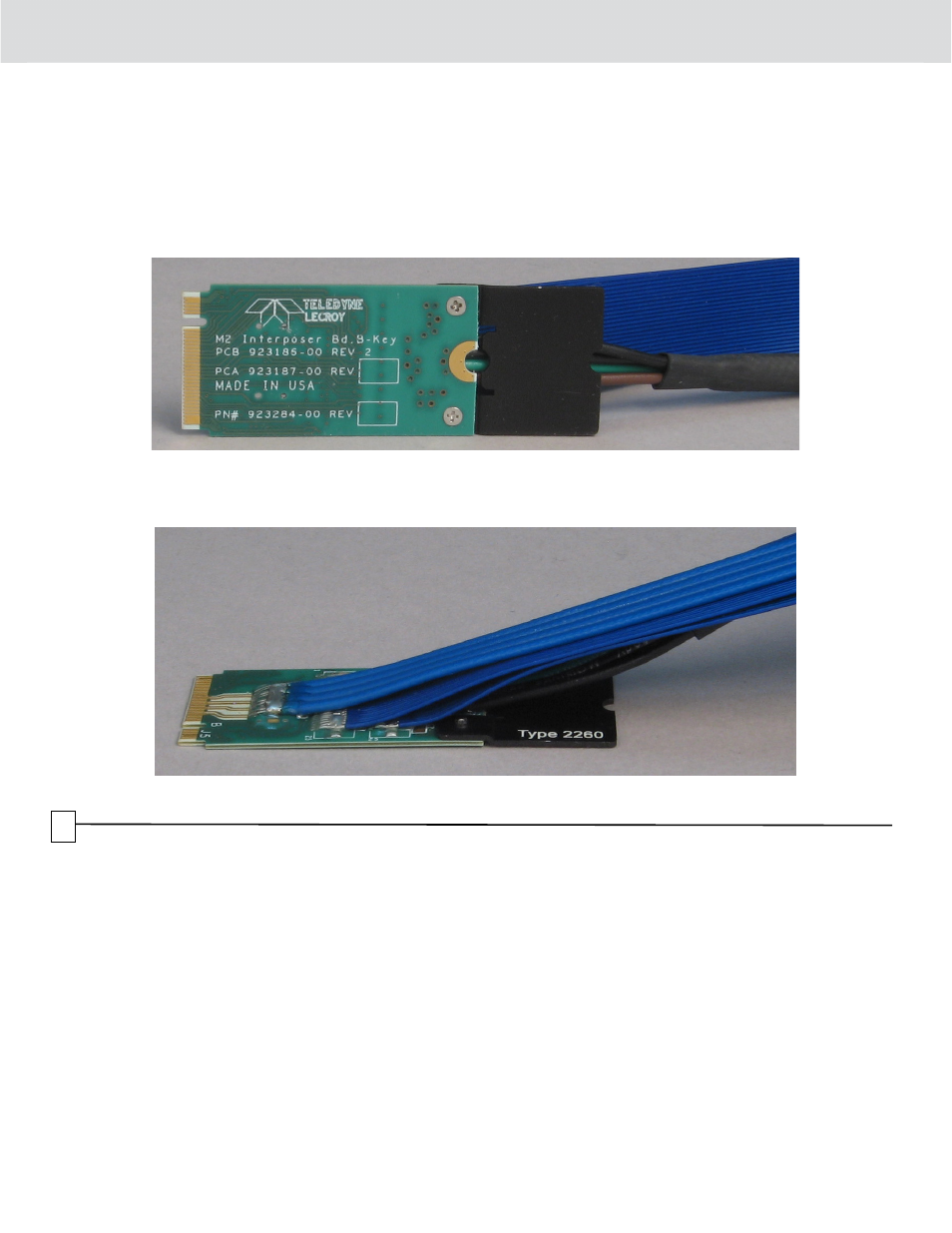

1. Place the Extension bracket aligned with the counter sink screw holes.
2. Make sure the text "Type 2260" on the bracket is facing the top of the PCB where the cables are
attached.
3. Insert the screws and tighten them using a 1.4mm Phillips or flat blade screw driver.
4. The view from the top side of the PCB is shown below. The text "Type 2260" is clearly visible.
Interposer DUT Standoff Assembly
A flexible attachment M.2 standoff assembly is provided for the different types of DUTs supported
which are 2240, 2260, 2280, and 22110. Move the M.2 standoff based on the DUT Type. The standoff
will be attached to 2280 location by default. The standoff has a nut on the bottom side which can be
removed by hand or with a nut driver (see drawings on next page).
