Operator’s Manual
923064-00 Rev A 5
voltage is calculated within the probe, with only the resultant difference signal being passed
to the oscilloscope, a large dynamic range can be achieved with excellent rejection of
common mode signals.

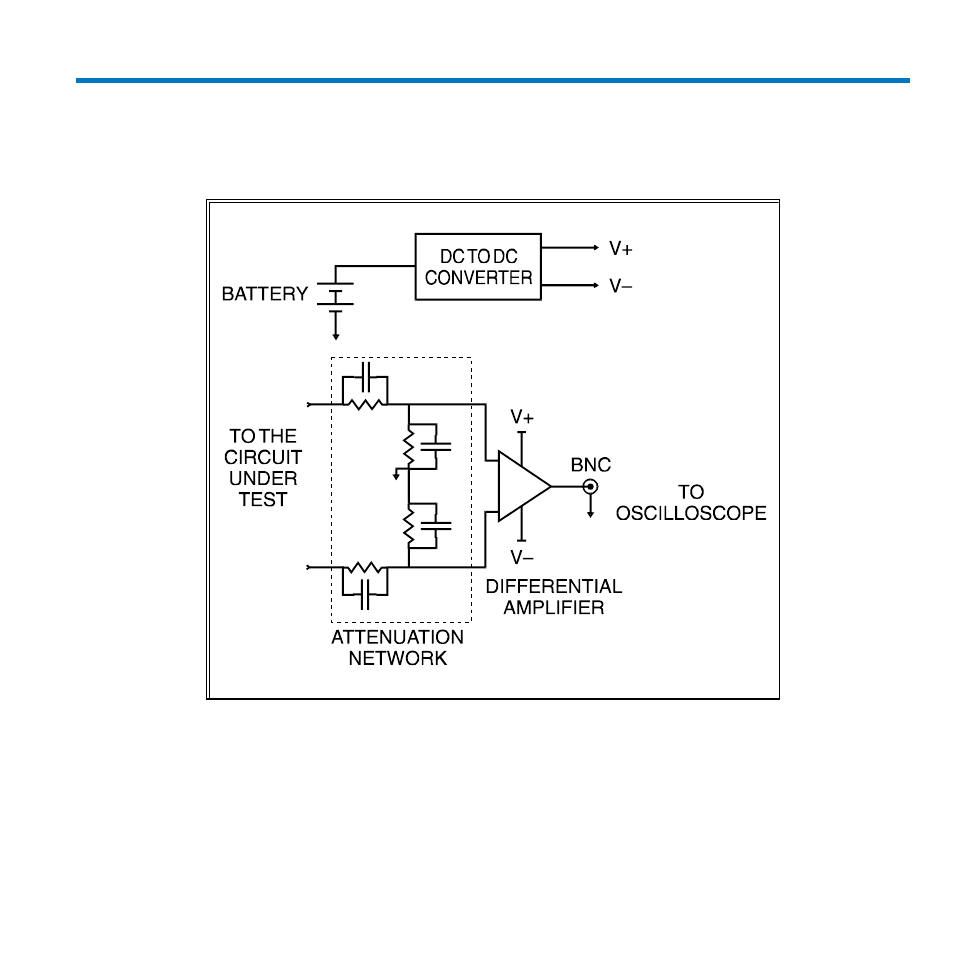

Figure 1
